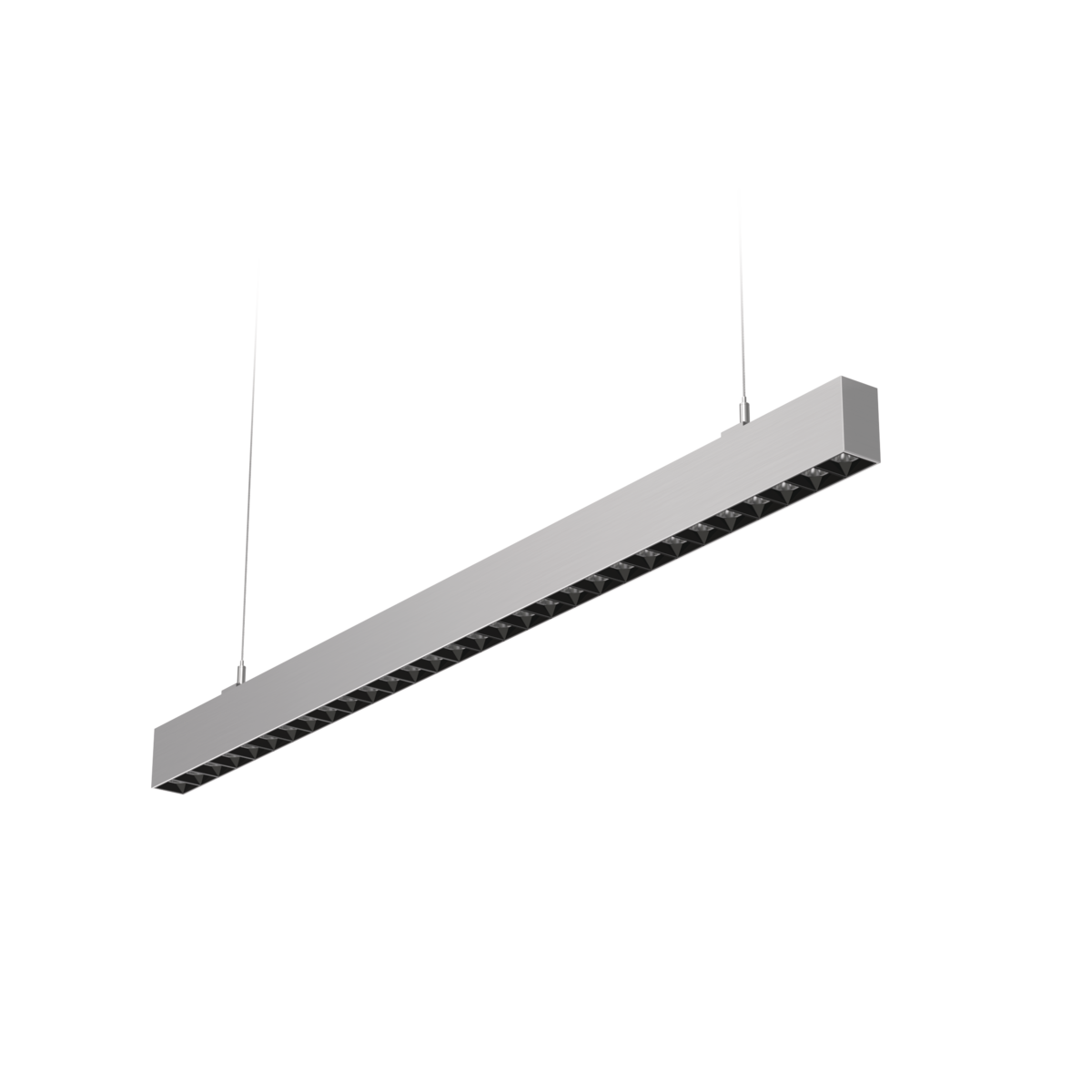

VOLICA 42 DOT

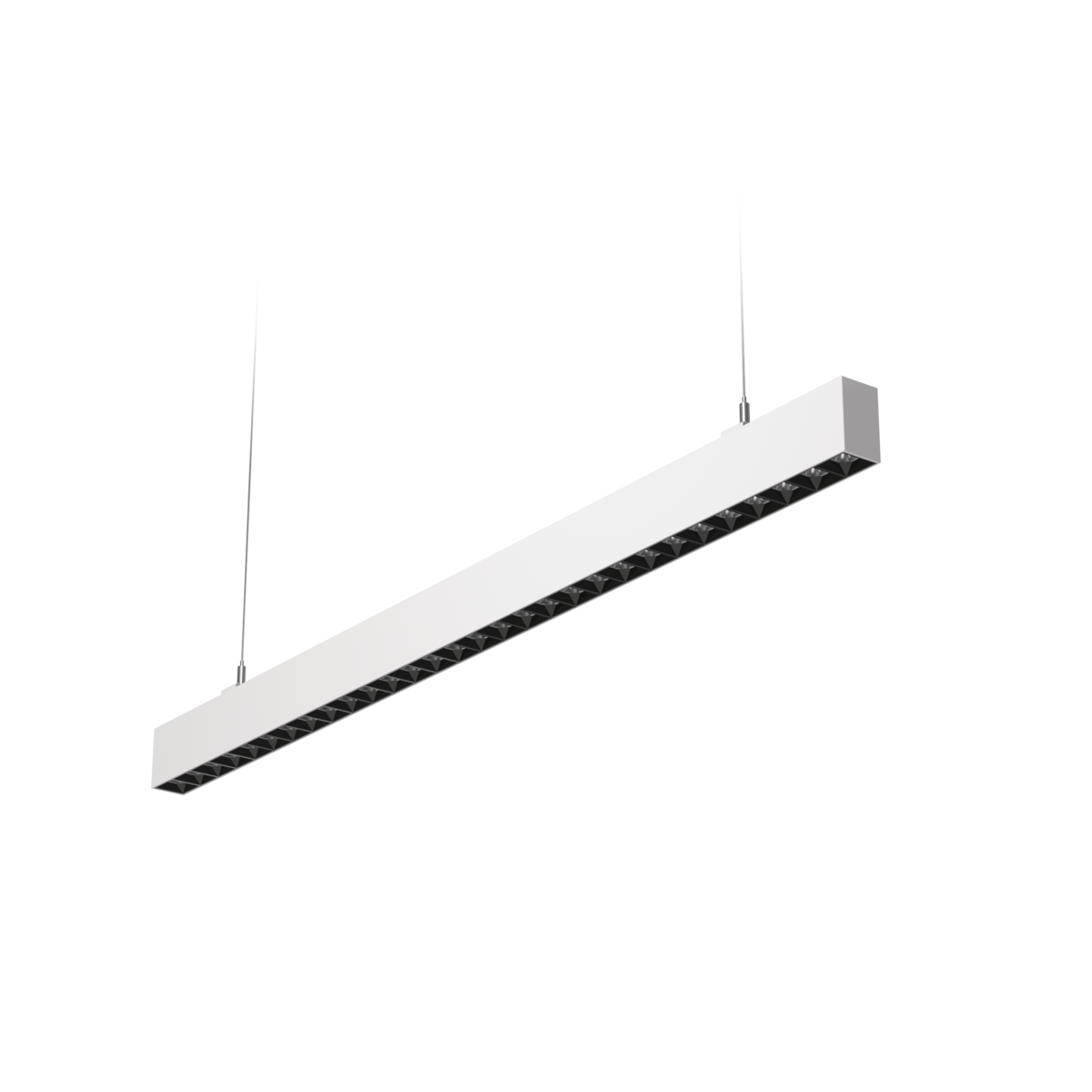

SUSPENDED LINEAR LUMINAIRE
A modern, decorative LED suspended linear luminaire manufactured from extruded aluminium and highest quality materials, suitable for use in modern office applications.
It is available in a choice of colour finishes, louvres and beam angles with an efficacy of up to 118 lm/W
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: suspended, on wire suspension (on request)
‣ Body: aluminum profile

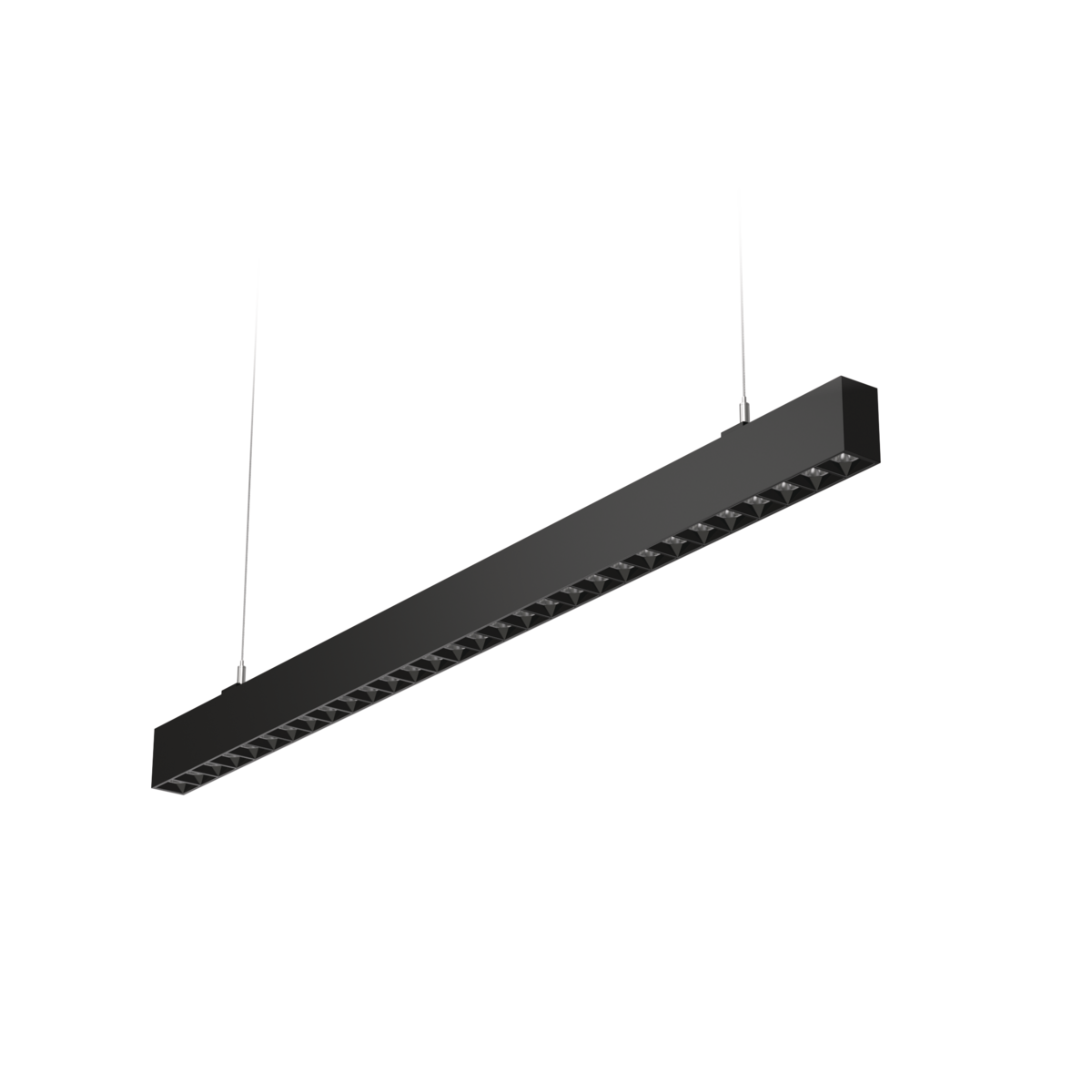

‣ Colour: anode C-0, white, black
‣ Power supply efficiency: >90%
‣ Power: 220-240V 50/60Hz
‣ Light source: LED
‣ Colour Temperature: 3000K / 4000K
‣ Efficacy: ≤118 lm/W
‣ UGR: <19
‣ CRI: ≥80
‣ Type of equipment: ED, DALI
‣ Electrical connection: luminaire equipped with 3x0,75 mm² wire with a length of 1.7 m (I class), luminaire equipped with 5x0,75 mm² wire with a length of 1.7 m (I class)
‣ Light distribution: symmetric
‣ Way of lighting: direct

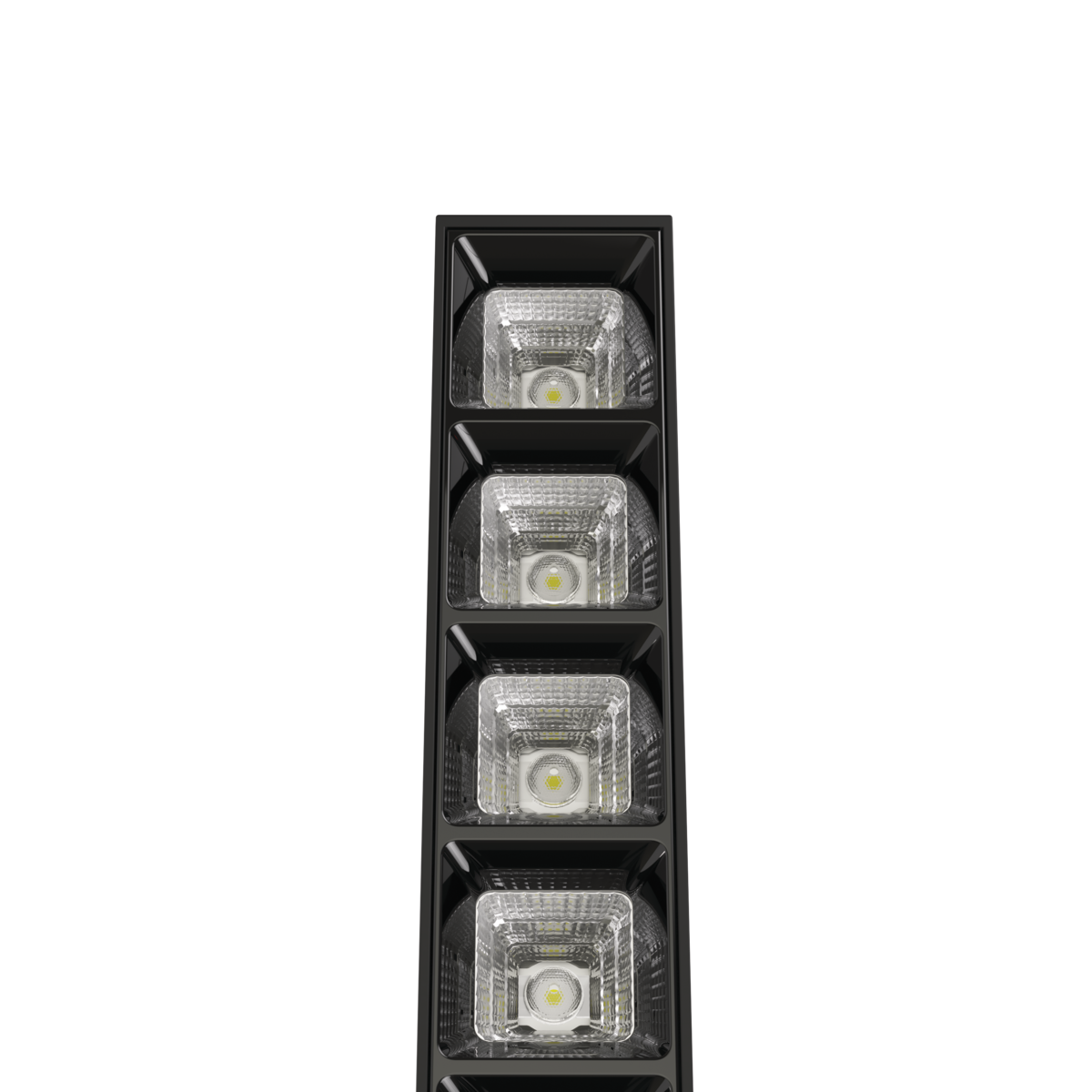

‣ Type of optic: lens

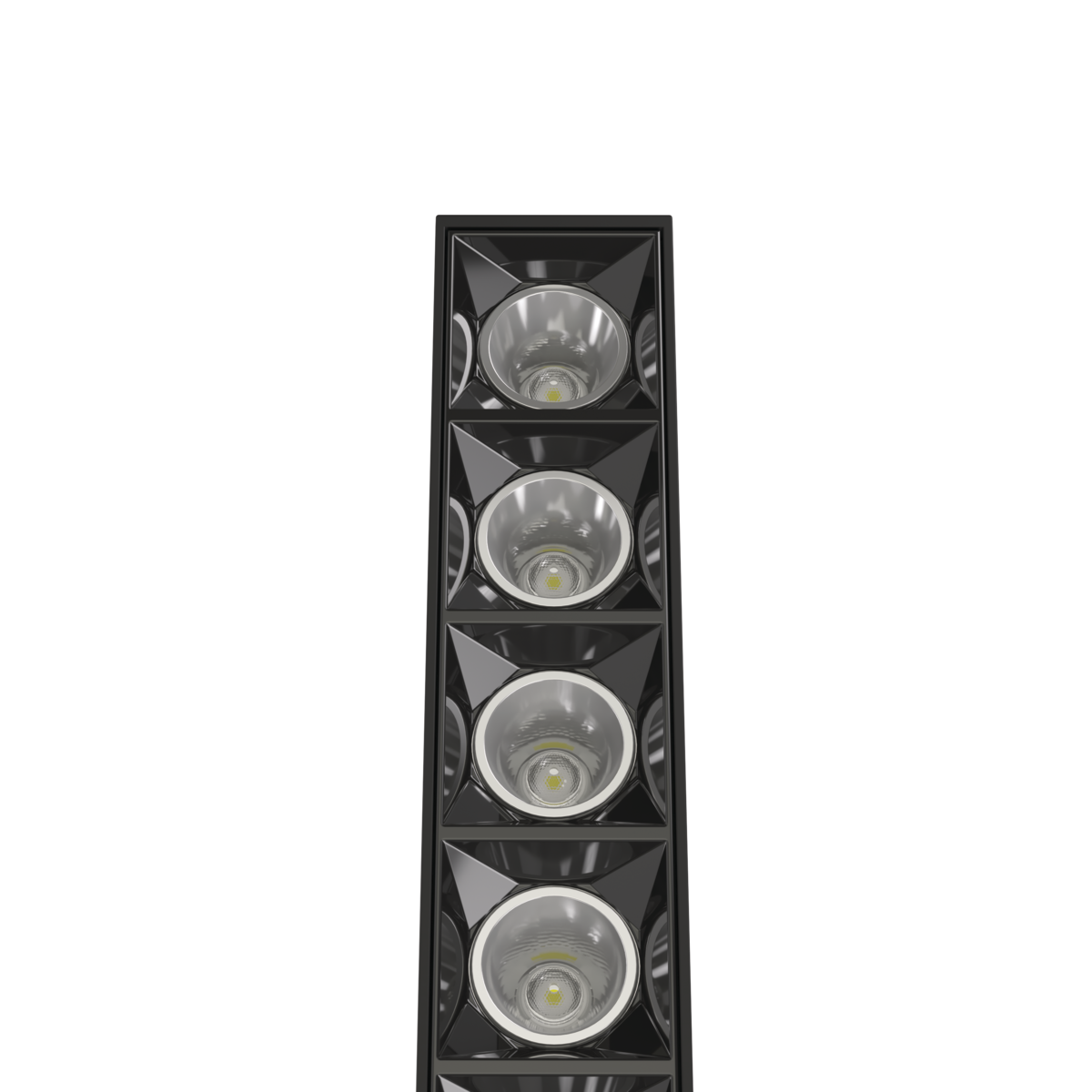

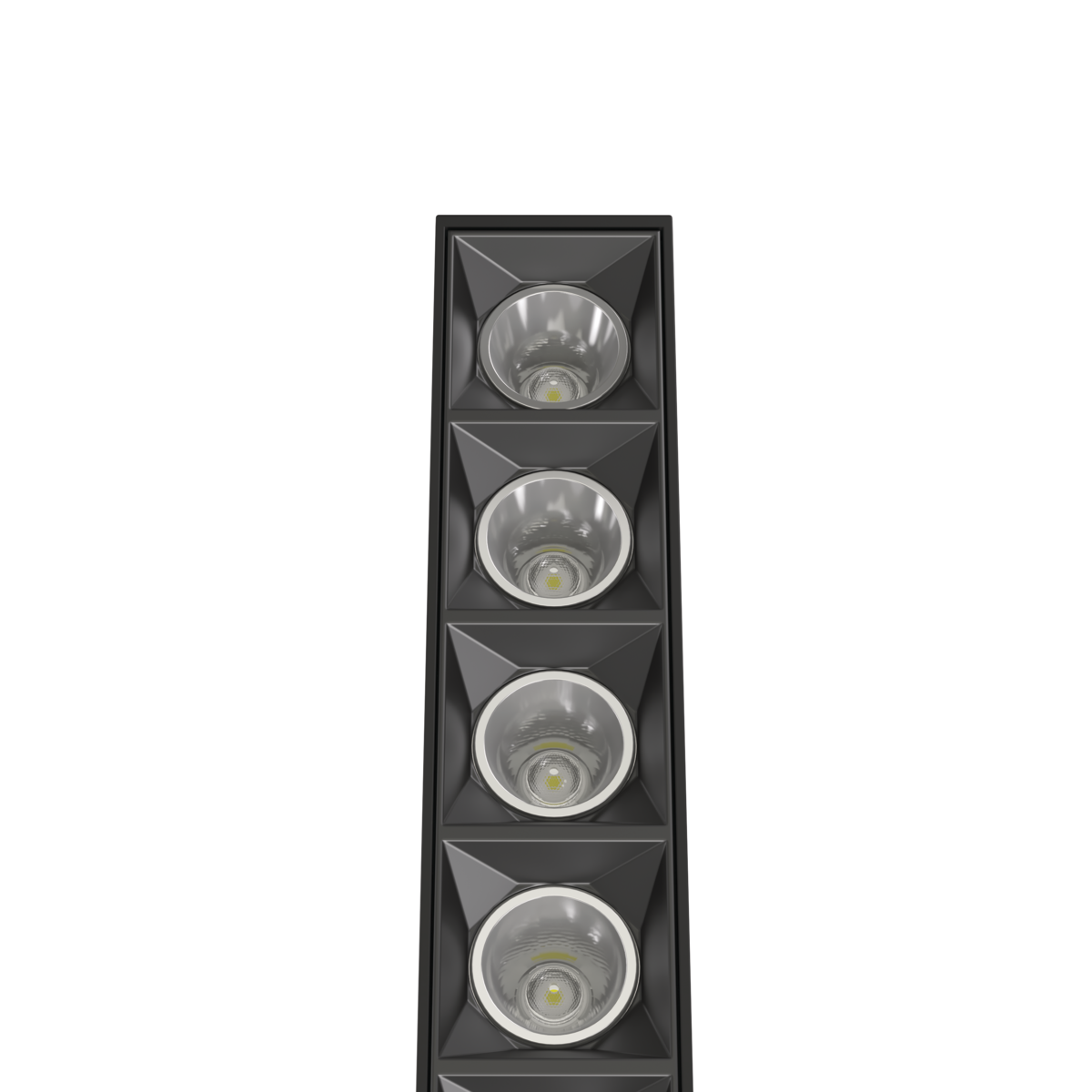

‣ Reflector: polished faceted
‣ Lifetime:
- (L80B10): 100,000 hours
- L90B10): 50,000 hours
‣ Protection: IP20 / IK04
‣ Warranty: 5 years
Please download the data sheet for further information
APPLICATION
Suitable for a variety of architectural and commercial applications.
