VOLICA 2 SYSTEM
SURFACE/SUSPENDED LINEAR LUMINAIRE

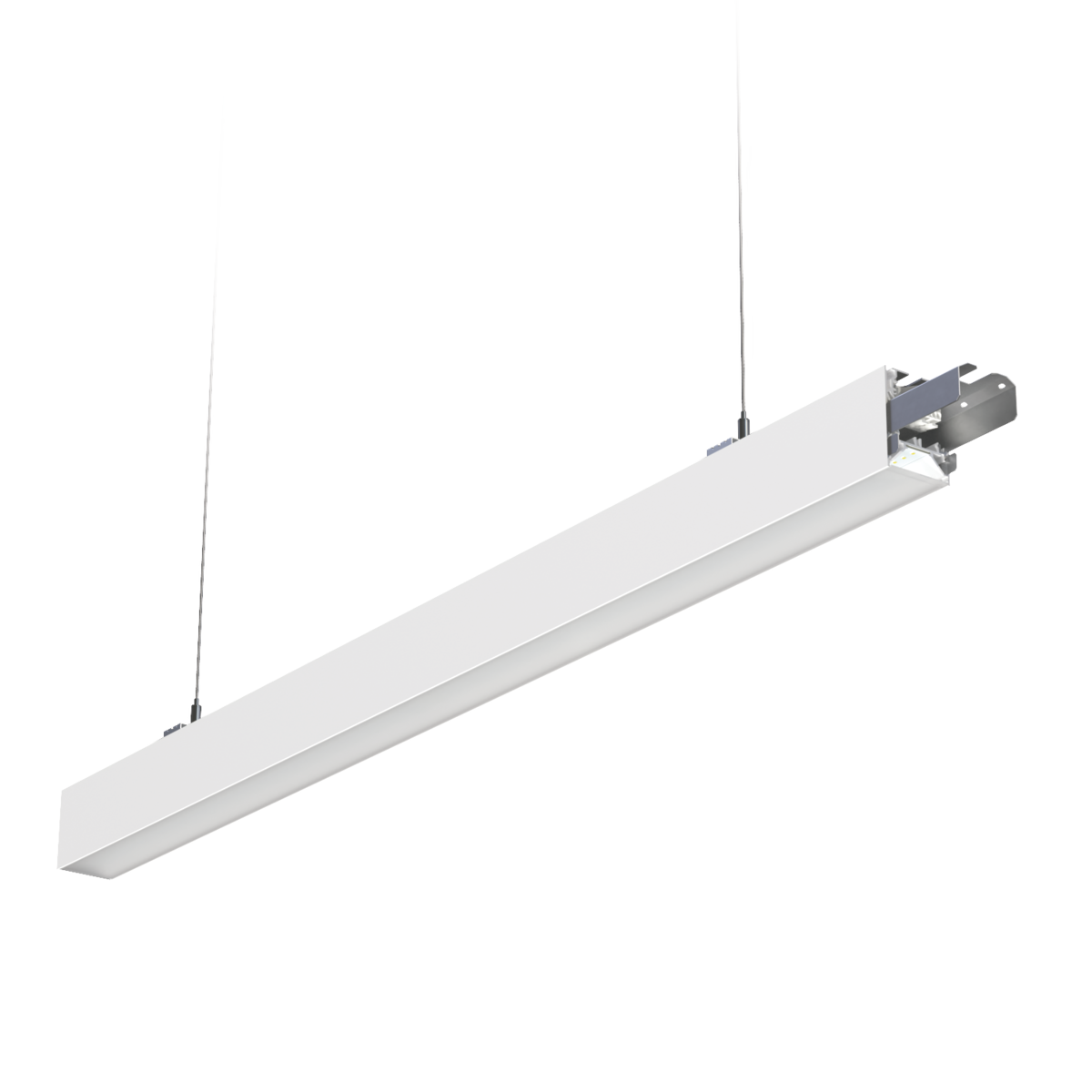

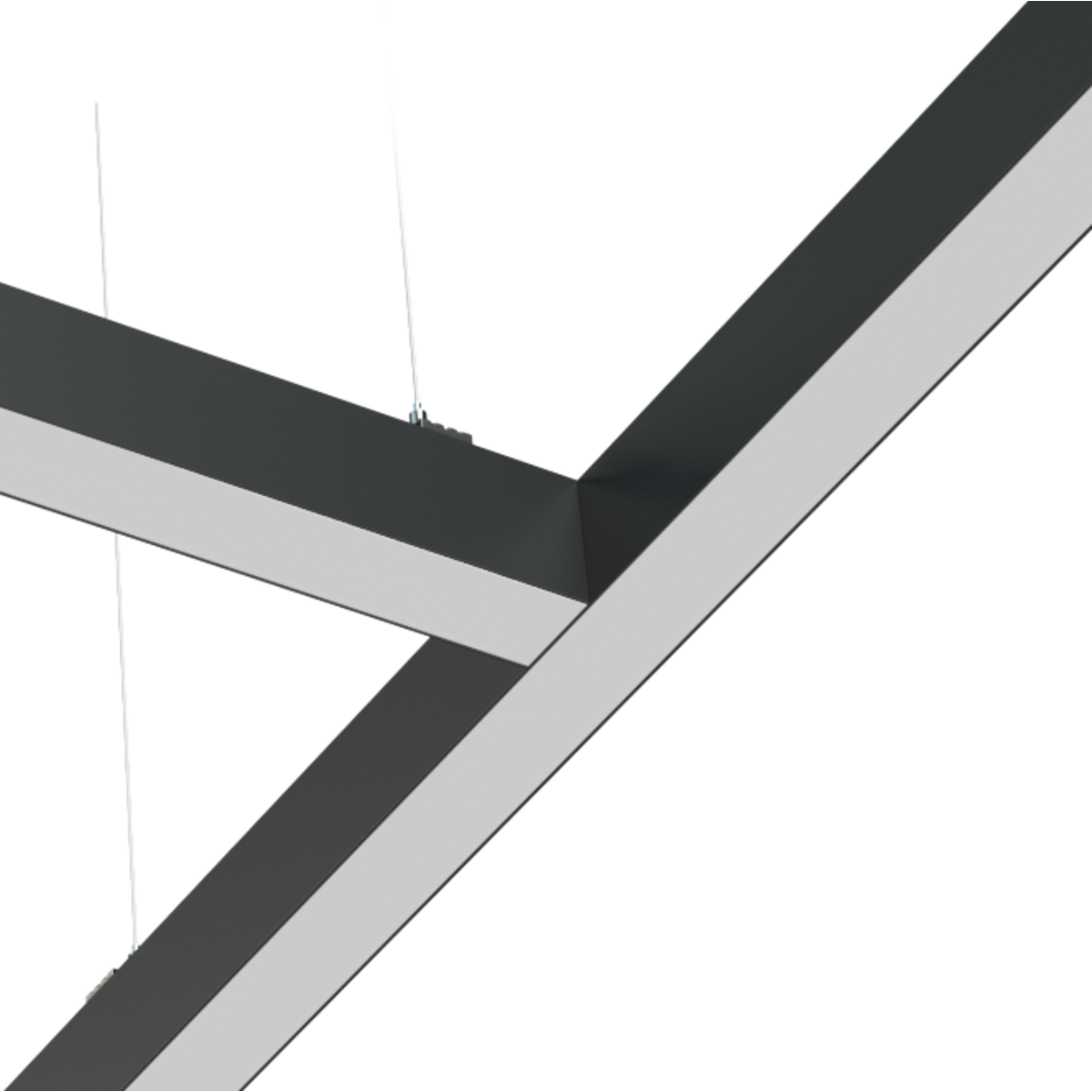

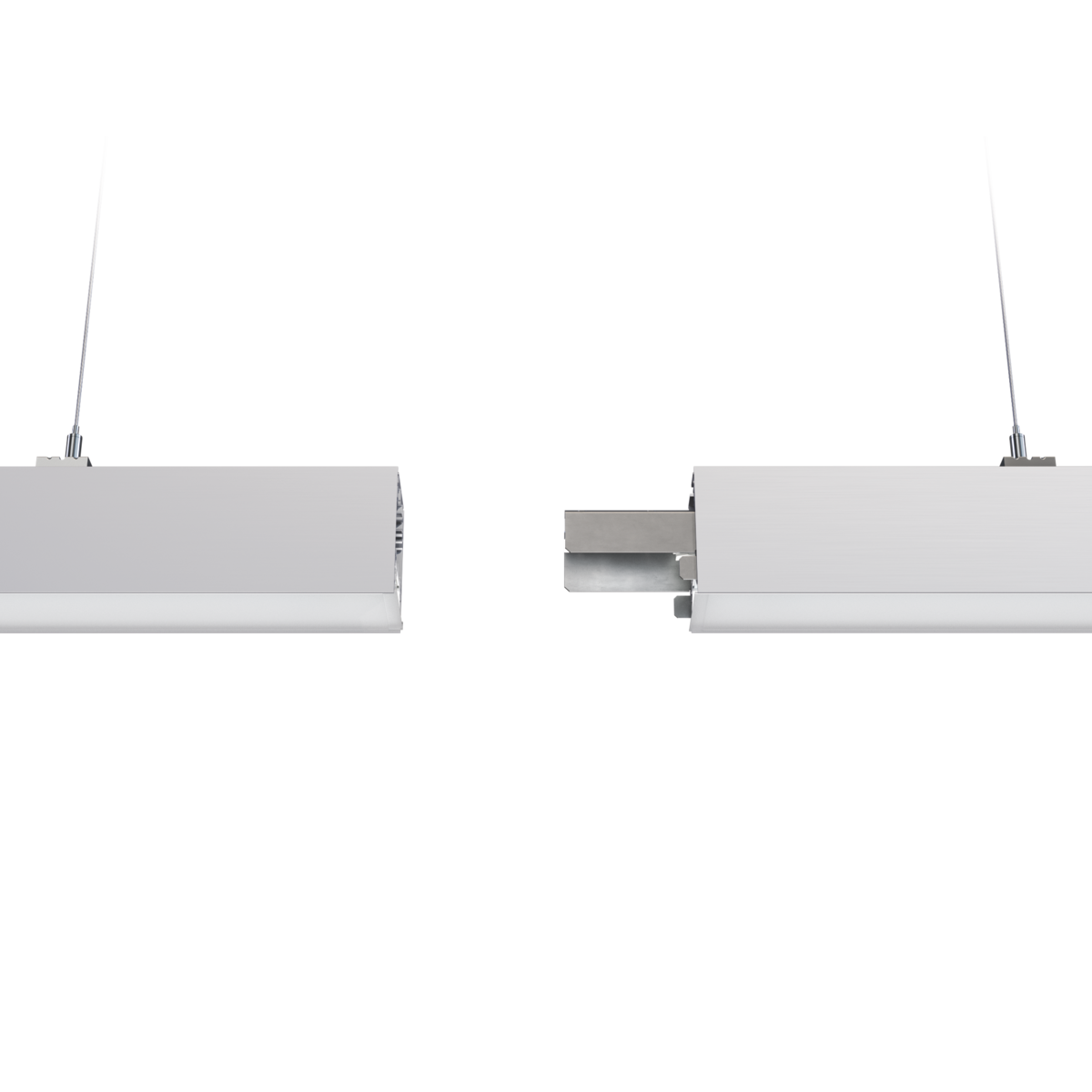

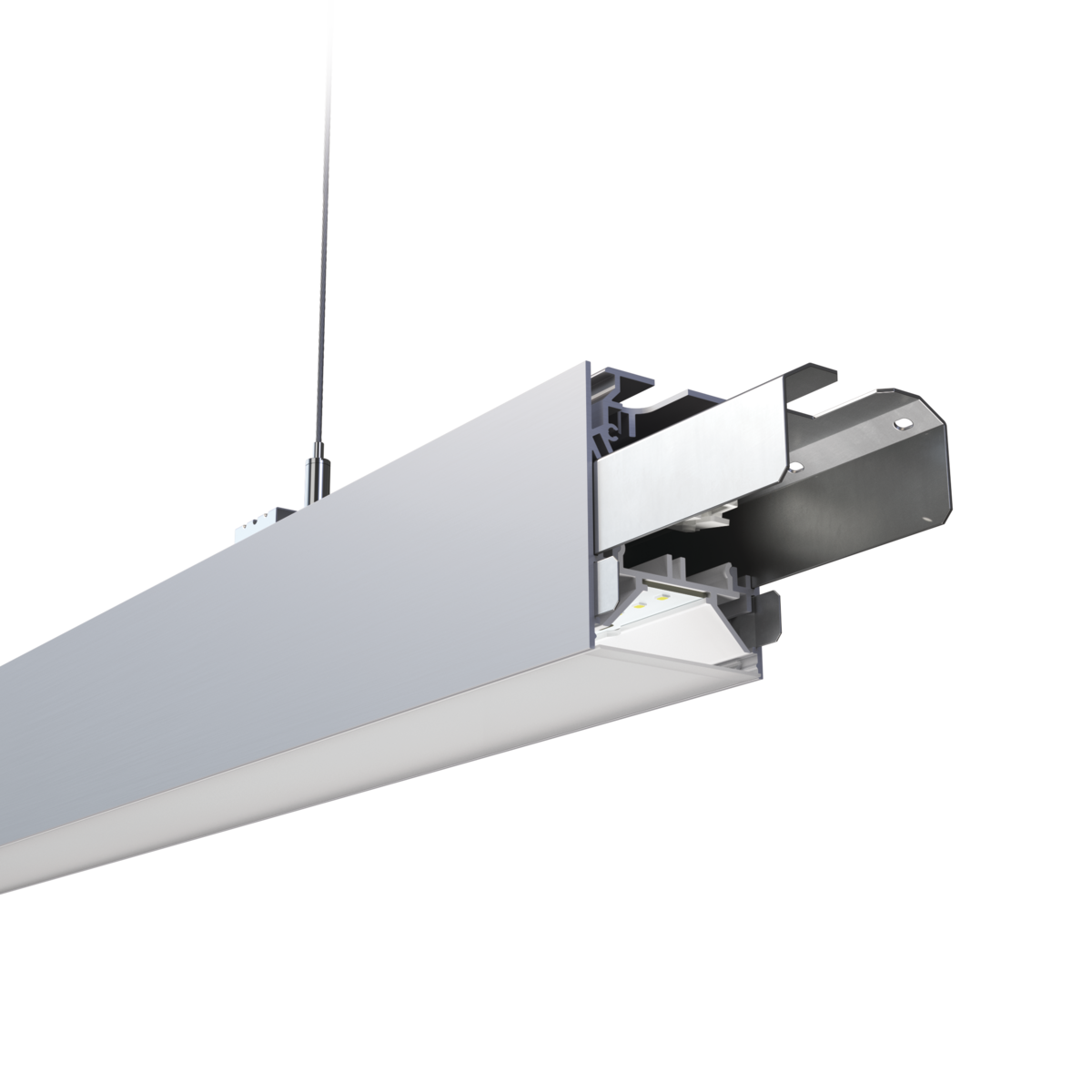

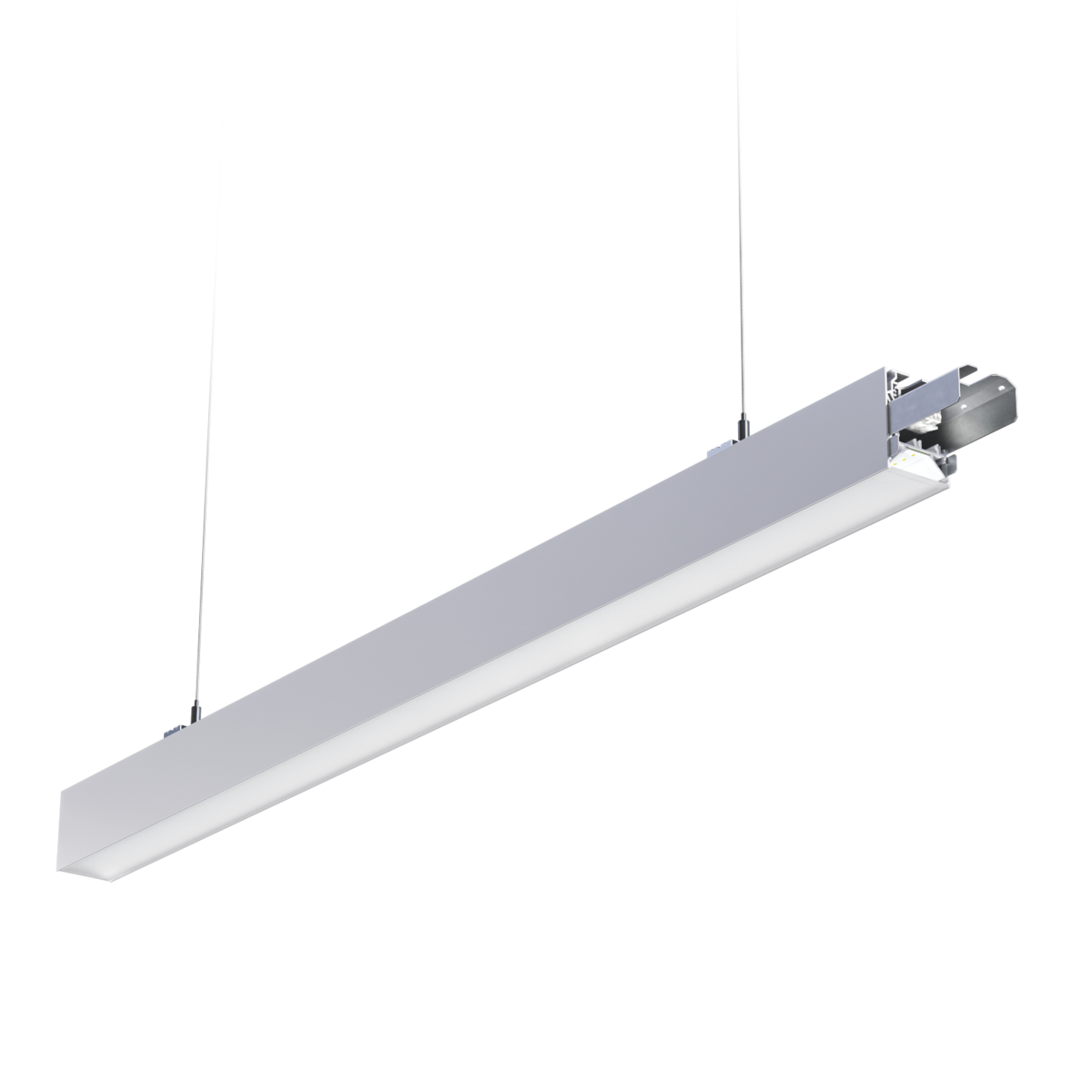

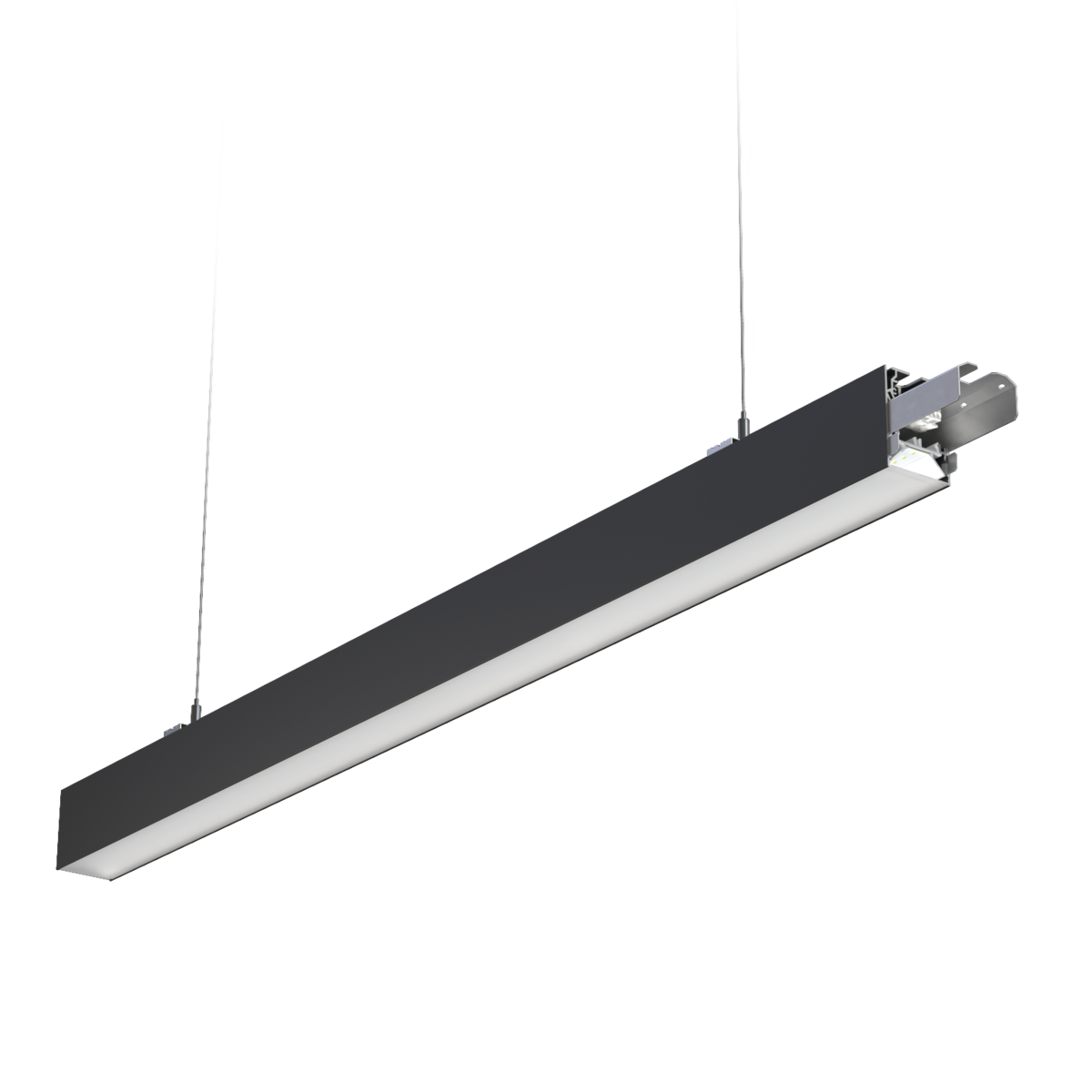

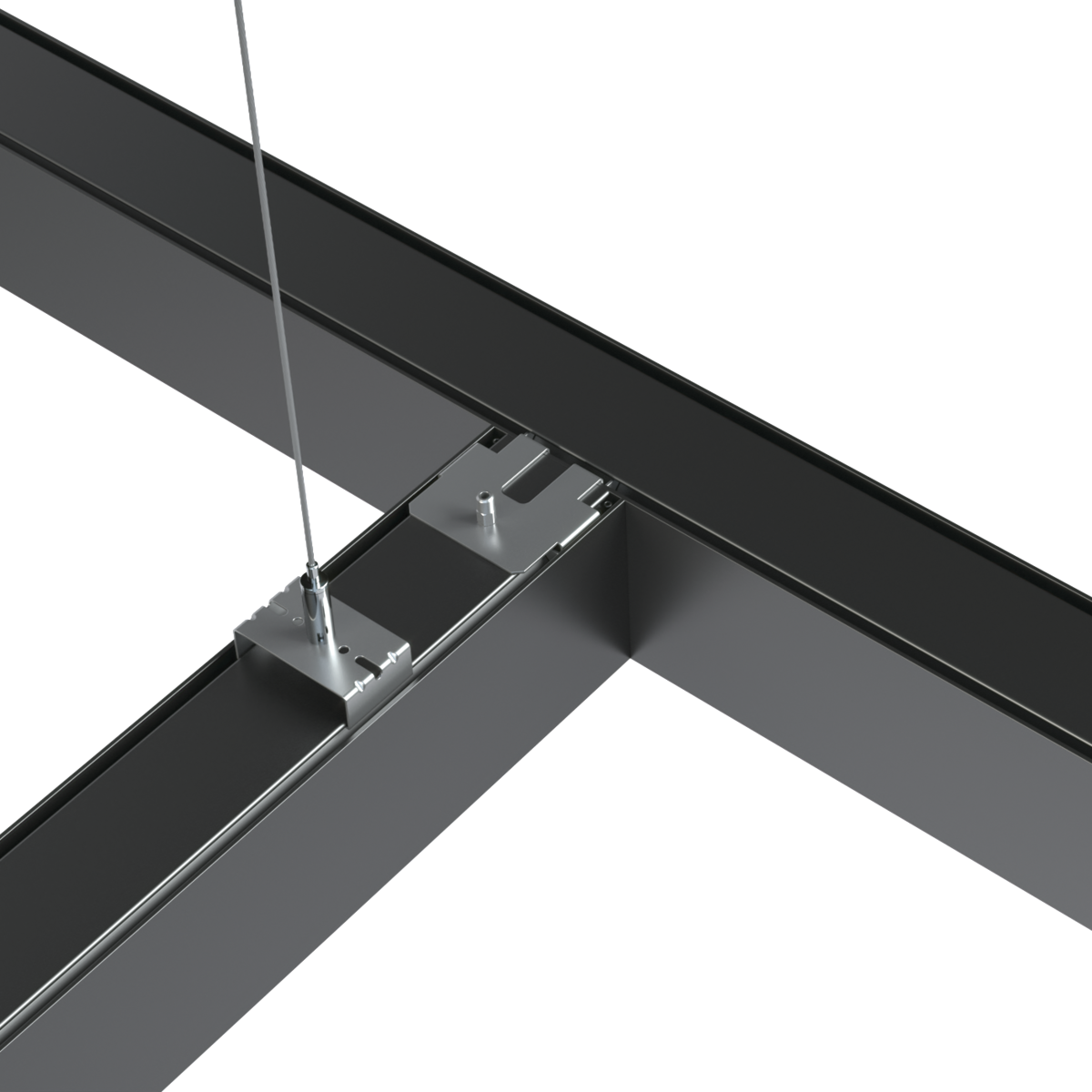

A decorative LED suspended or surface linear luminaire manufactured from aluminium. These fittings can be mechanically connected together to form different shapes and designs.
It is available in three colour finishes with a choice of diffusers and has an efficacy of up to 134 lm/W.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: suspended, on wire suspension (on request), surface mounted
‣ Body: aluminum profile
‣ Colour: anode C-0, white, black
‣ Diffuser: opal matt (PMMA), microprismatic diffuser (MPRM)
‣ Reflector: white
‣ Power supply efficiency: >87%
‣ Power: 220-240V 50/60Hz
‣ Light source: LED
‣ Colour Temperature: 3000K / 4000K
‣ Efficacy: ≤134 lm/W
‣ CRI: ≥80
‣ Type of equipment: ED, DALI
‣ Electrical connection: max 3x2,5 mm² wire, max 5x2,5 mm² wire
‣ Light distribution: omnidirectional
‣ Way of lighting: direct
‣ Lifetime:
- (L80B10): 100,000 hours
- (L90B10): 50,000 hours
‣ Protection: IP20 / IK04
‣ Operating temperature range [°C]: 0 ... +35
‣ Warranty: 5 years
Please download the data sheet for further information
APPLICATION
Suitable for a variety of architectural, commercial and retail applications.
