VERSEX

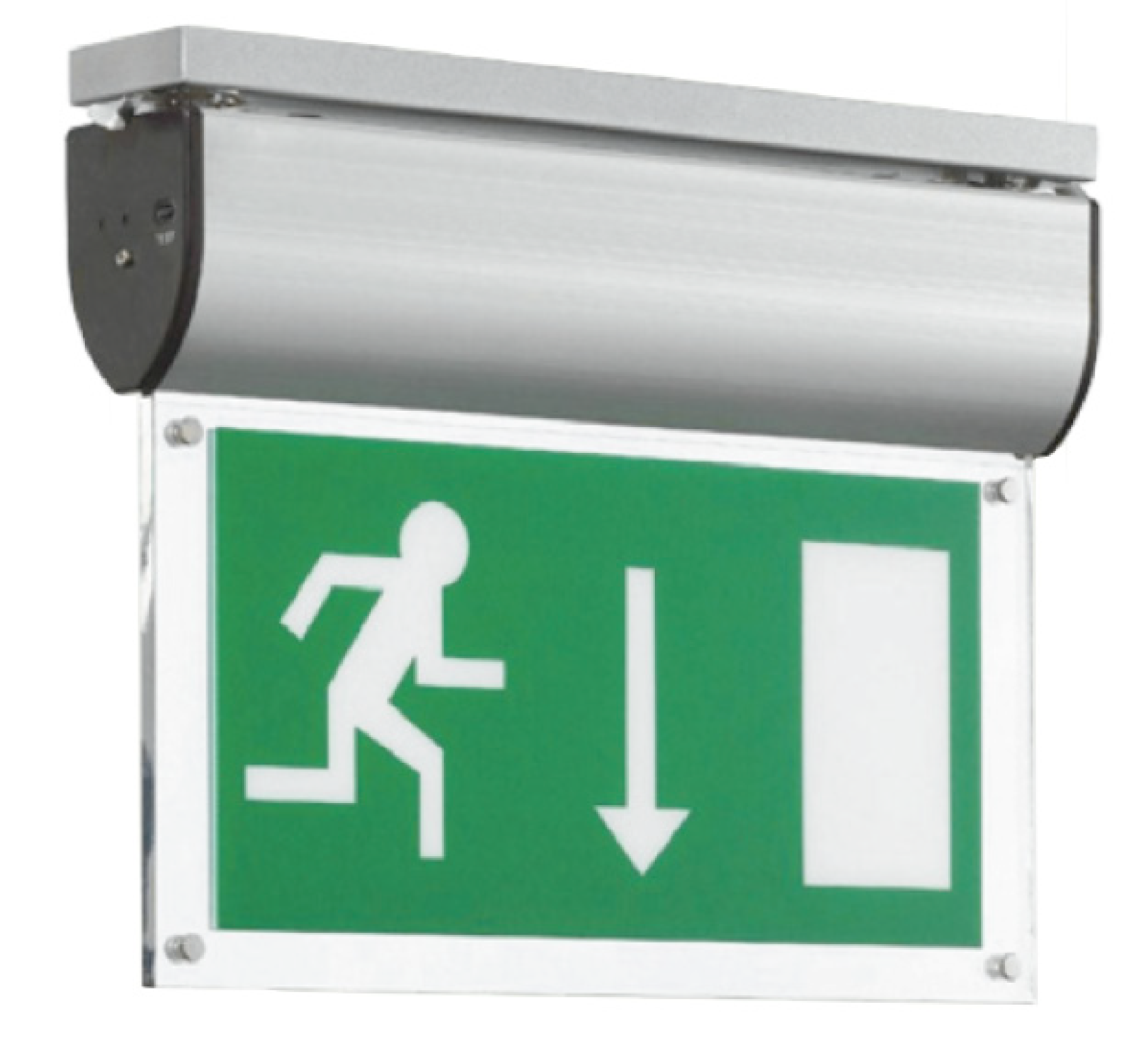

LED EMERGENCY EXIT LUMINAIRE
This range of LED exit sign luminaires offers long life, low energy and flexible mounting solutions in a choice of attractive packages.
The suspended luminaires feature extruded aluminium housings and a wide range of mounting attachments allowing wall, ceiling or suspended solutions. The luminaires feature a unique method of fitting legend ‘screens’ onto the face of the acrylic panel.
All luminaires incorporate long life high brightness white LED’s with typical life expectancy of over 50,000 hours. Self-test versions are also available.
KEY FEATURES AND SPECIFICATIONS
‣ Extruded aluminium housing
‣ Surface or suspension mounting options
‣ Light source: 15 x wide angle white LED's
‣ 3 hour maintained emergency
‣ Lifetime of up to 50,000 Hours
‣ Ambient temperature (Ta) 25°C
‣ Insulation class Class I
‣ Supply voltage 230V ~ 50Hz
‣ Battery 4.8V 0.9Ah NiCd
‣ Weight <3kg
‣ Dimensions: 300mm x 50mm x 220mm
NOTES:
NON-MAINTAINED EMERGENCY LUMINAIRES only operate during power failures.
MAINTAINED EMERGENCY LUMINAIRES operate when the power is on, as well as during power failures. The same light source is used in both cases.
Please download the data sheet for further information
APPLICATION
Suitable for a variety of emergency lighting applications in commercial environments.
