URBINO TWILIGHT LED
STREETLIGHT LUMINAIRE WITH SENSOR

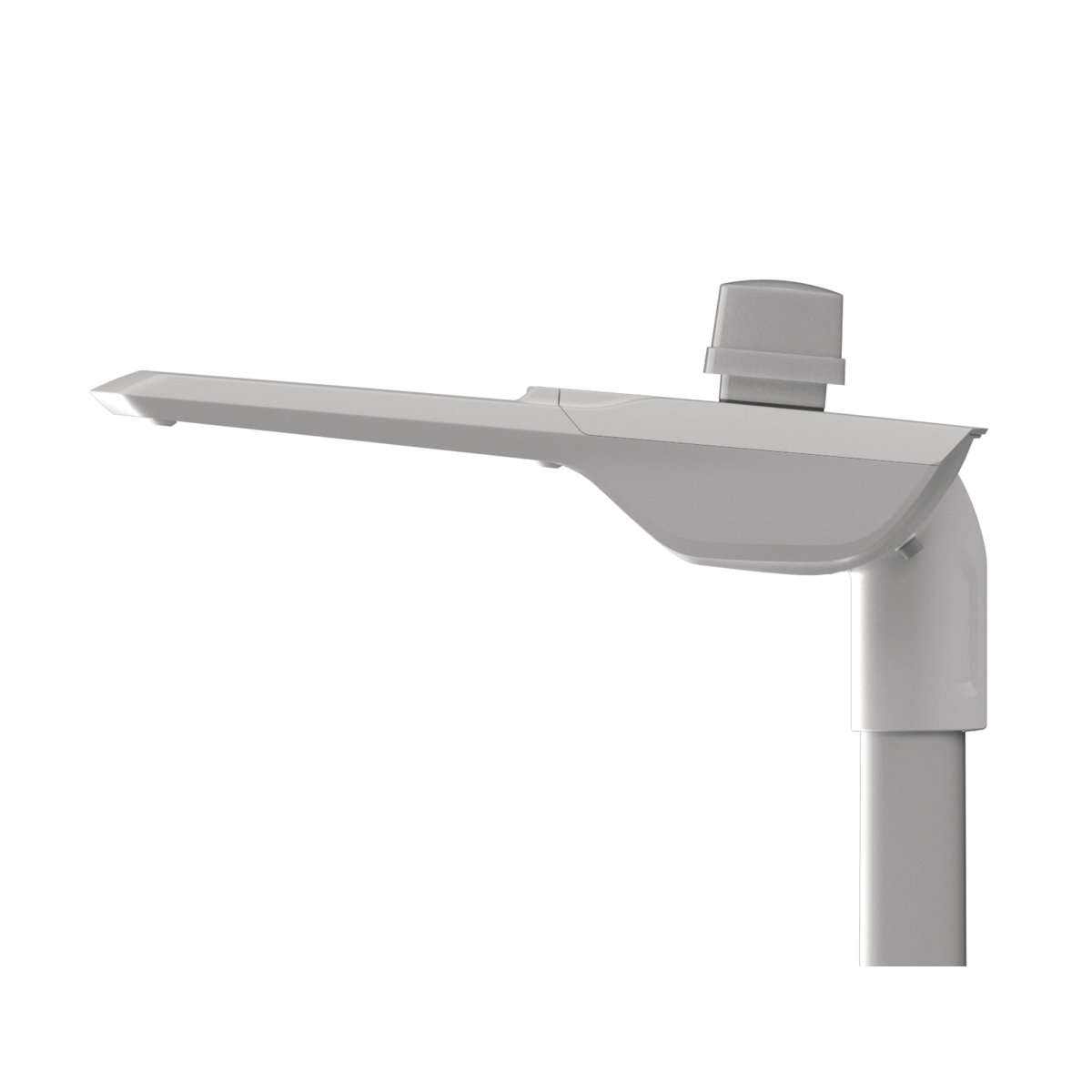

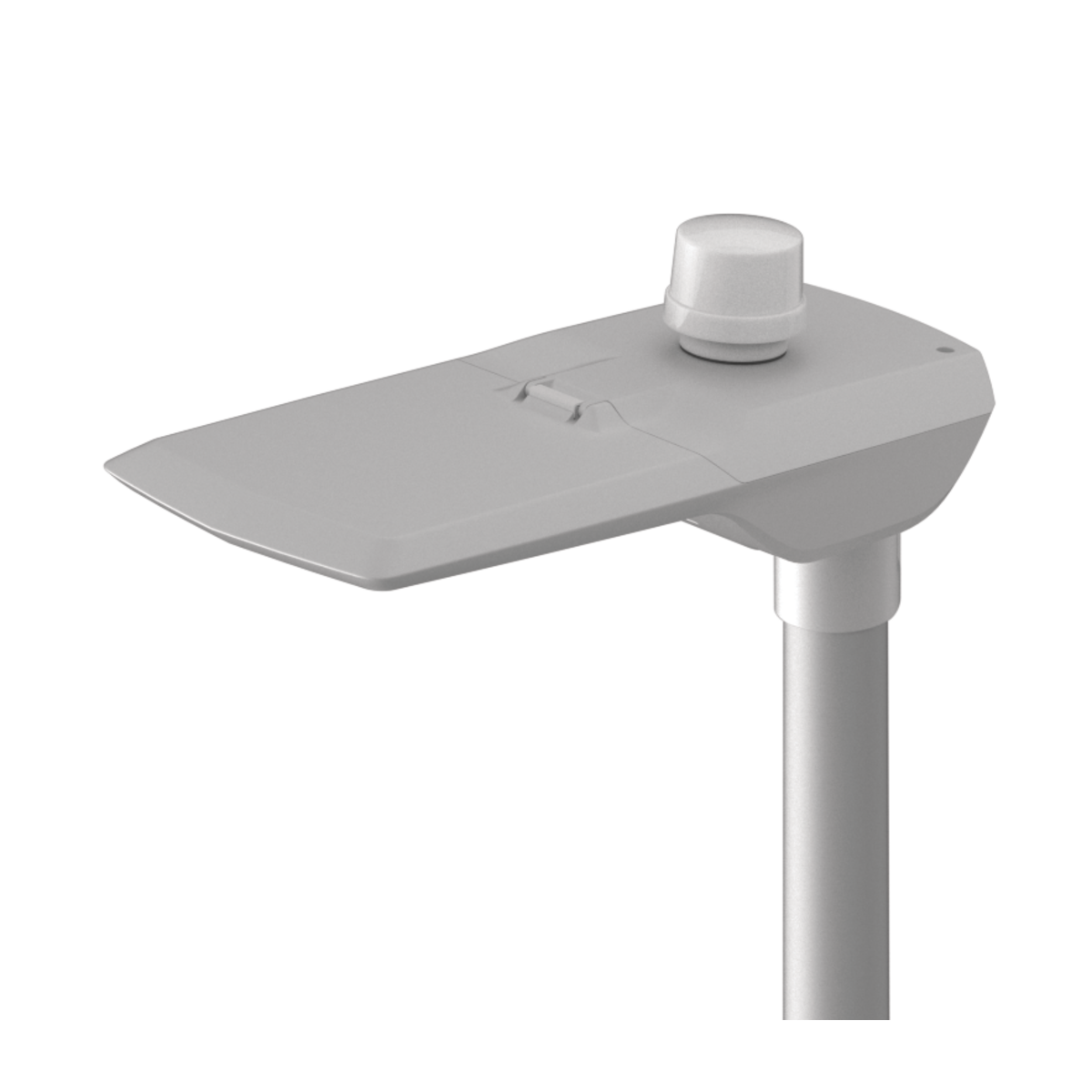

A high performance LED streetlight constructed from die cast aluminium and suitable for pole mounting fitted with a twilight sensor.
This fitting has a service lifetime of 100,000 hours and an efficacy of up to 129 lumens/W.
There are a number of optical light distribution options available to suit any application.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: on pillar ø60/48mm, on outriggers ø60/48mm
‣ Body: high pressure die-cast aluminum
‣ Tilt adjustment: -15° to +15° (every 5°)
‣ Lateral Surface Wind Exposed: 0.044 m²
‣ Colour: grey
‣ Diffuser: tempered glass
‣ Power supply efficiency: >95%
‣ Power: 220-240V 50/60Hz
‣ Light source: LED
‣ Colour temperature: 3000K, 4000K, 5700K
‣ Efficacy: ≤129 lm/W
‣ CRI: >70
‣ Type of equipment: ED, NEMA socket, twilight sensor
‣ Electrical connection: max 3x2,5 mm² wire, max 2x2,5 mm² wire
‣ Way of lighting: direct
‣ Choice of optics
‣ ULOR / DLOR: 0% / 100%
‣ Lifetime (L90B10): 100,000 hours
‣ Protection: IP66/IK08
‣ Warranty: 5 Years
‣ Available on request:
- DALI
- DIM 1..10V
- LLOC
- Knife switch
- 10kV surge protection
- NTC
- Access to the driver chamber without the use of tools
Please download the data sheet for further information
APPLICATION

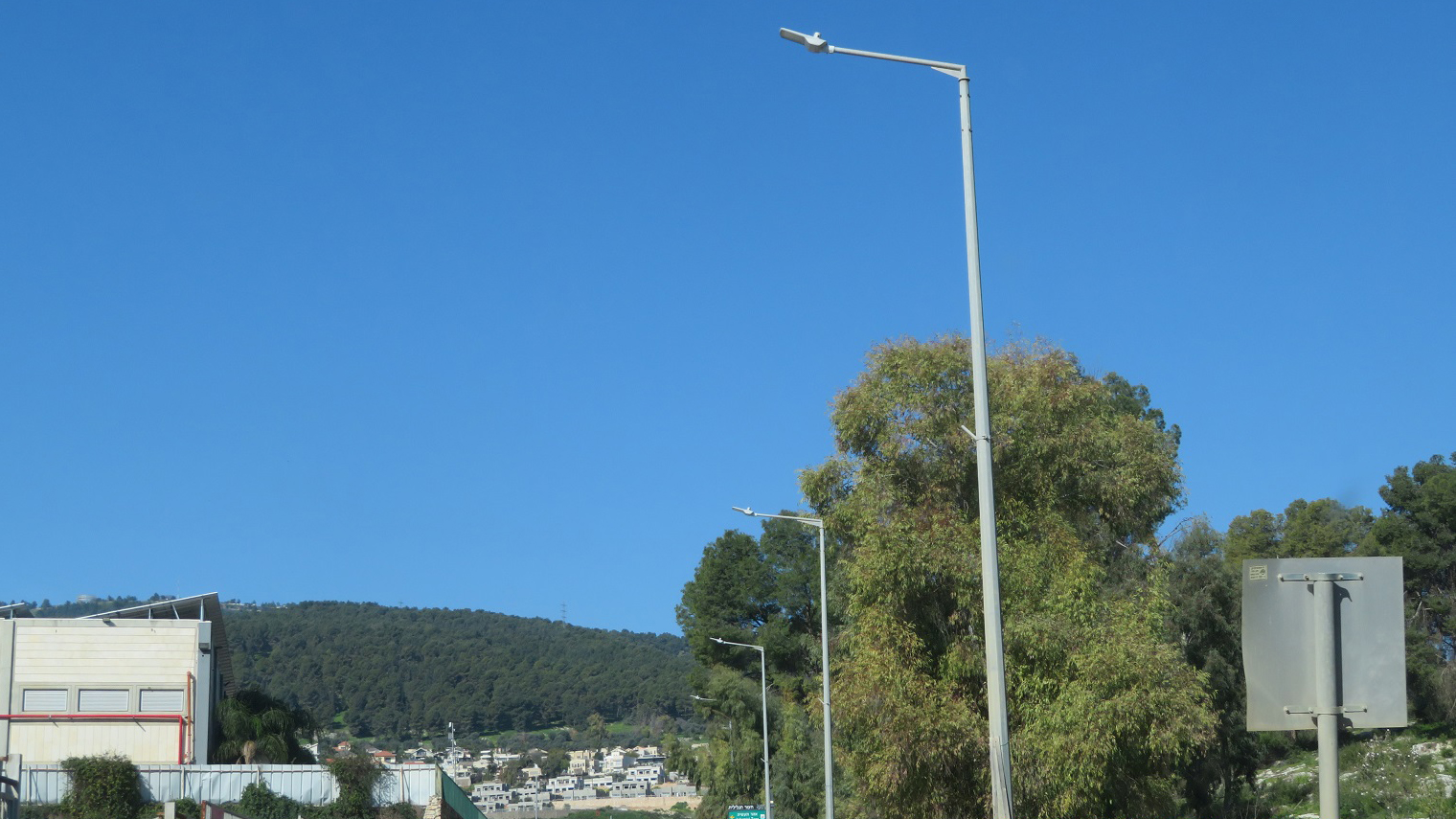

Suitable for a variety of street lighting applications.
