KEY FEATURES AND SPECIFICATIONS

‣ Mounting: on pillar ø60/40mm, on pillar ø76mm - modification .829, on outriggers ø60/40mm, on outriggers ø76mm - modification .829
‣ Body: high pressure die-cast aluminum

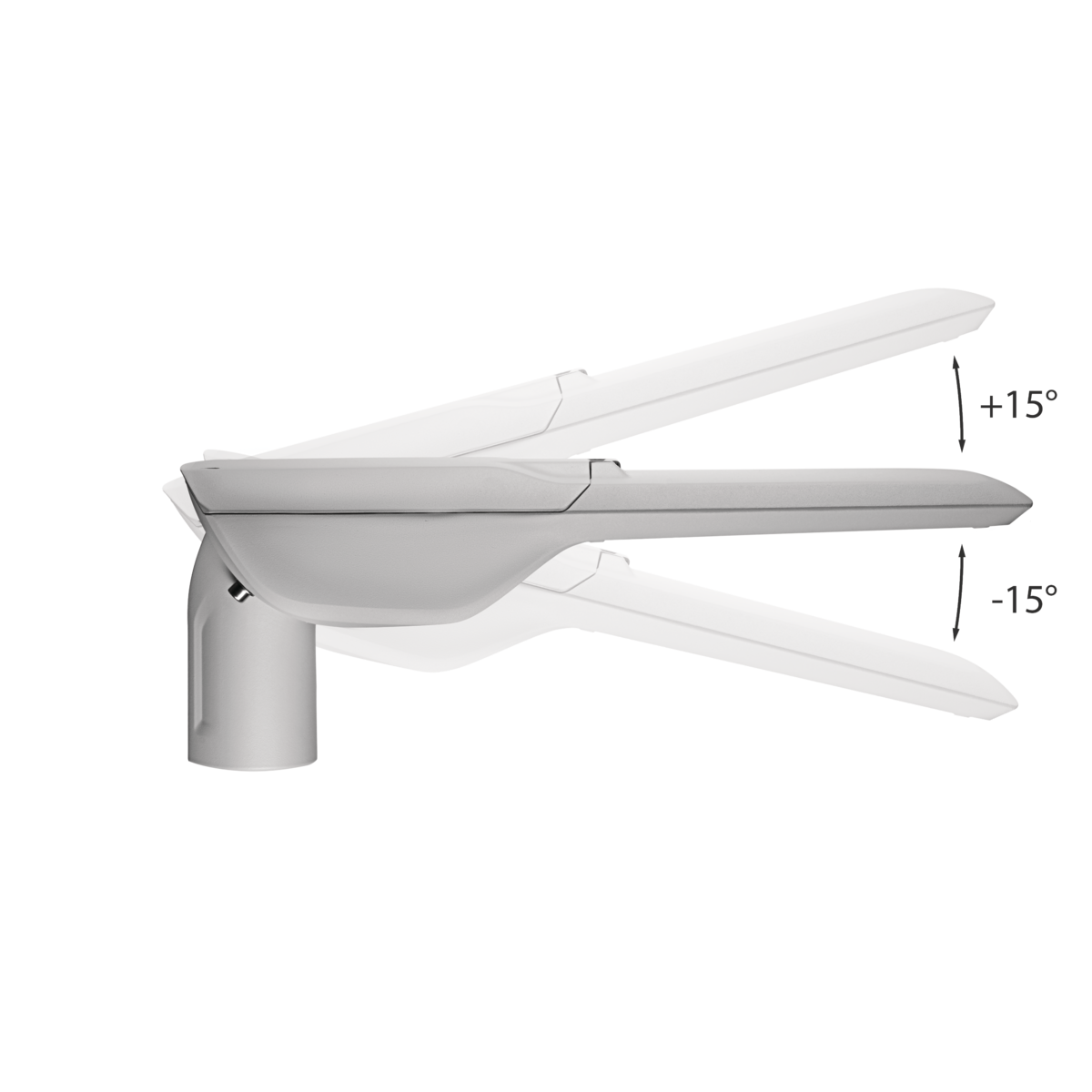

‣ Tilt adjustment: -15° to +15° (every 5°)
‣ Lateral Surface Wind Exposed: 0,045 m²
‣ Colour: grey, graphite
‣ Diffuser: tempered glass
‣ Power supply efficiency: >90%
‣ Power: 220-240V 50/60Hz
‣ Light source: LED
‣ Colour temperature: 2200K, 2700K, 3000K, 4000K
‣ Efficacy: ≤153 lm/W
‣ CRI: >70
‣ Type of equipment: DALI, ED
‣ Electrical connection: max 5x2,5 mm² wire, max 3x2,5 mm² wire, max 4x2,5 mm² wire, max 2x2,5 mm² wire
‣ Way of lighting: direct
‣ Choice of optics
‣ ULOR / DLOR: 0% / 100%
‣ Lifetime (L90B10): 100,000 hours
‣ Available on request: DIM 1..10V, LLOC, twilight sensor, knife switch, 10kV surge protection, NTC, NEMA connector, ZHAGA connector, Colour temperature - 5700K
‣ Protection: IP66/IK09
‣ Dimensions [mm] L W H: 670 x 320 x 105
‣ Weight: 10.3kg
‣ Warranty: 5 Years
