URBINO LED S
STREETLIGHT LUMINAIRE

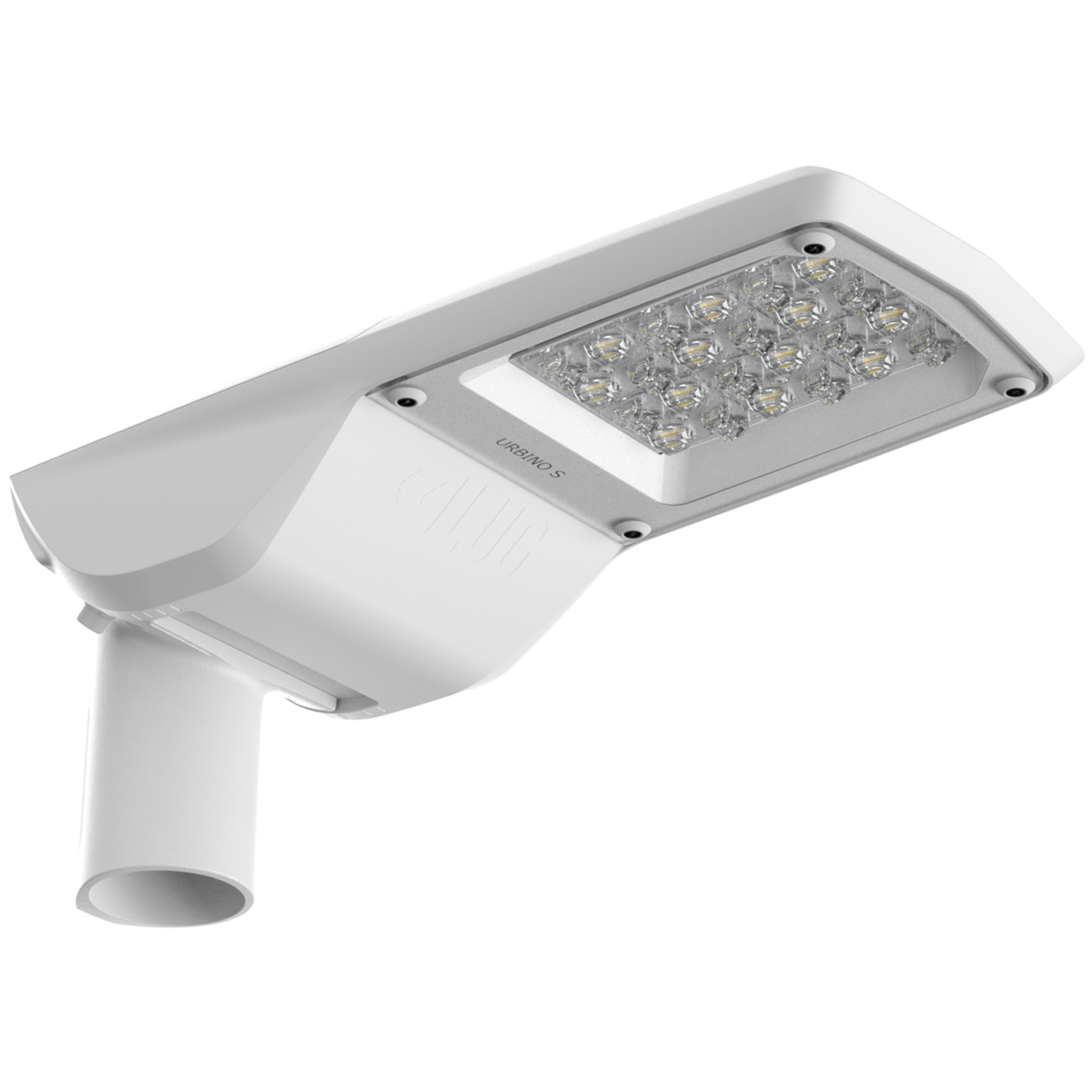

A high performance LED streetlight constructed from die cast aluminium and suitable for pole mounting.
This fitting has a service lifetime of 100,000 hours and an efficacy of up to 157 lumens/W.
Applications: roads, pedestrian crossings, area lighting, avenues, promenades, cycle paths.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: on pillar, on outriggers, with mounting brackets (to be ordered separately)
‣ Body: high pressure die-cast aluminum
‣ Lateral Surface Wind Exposed: 0,035 m²
‣ Colour: grey
‣ Diffuser: tempered glass
‣ Power supply efficiency: >93%
‣ Power: 220-240V 50/60Hz
‣ Light source: LED
‣ Colour temperature: 2200K, 27000K, 3000K, 4000K
‣ Efficacy: ≤157 lm/W
‣ CRI: >70
‣ Type of equipment: ED
‣ Electrical connection: max 3x1,5 mm² wire, max 2x1,5 mm² wire
‣ Way of lighting: direct
‣ Choice of optics
‣ ULOR / DLOR: 0% / 100%
‣ Lifetime (L90): 100,000 hours

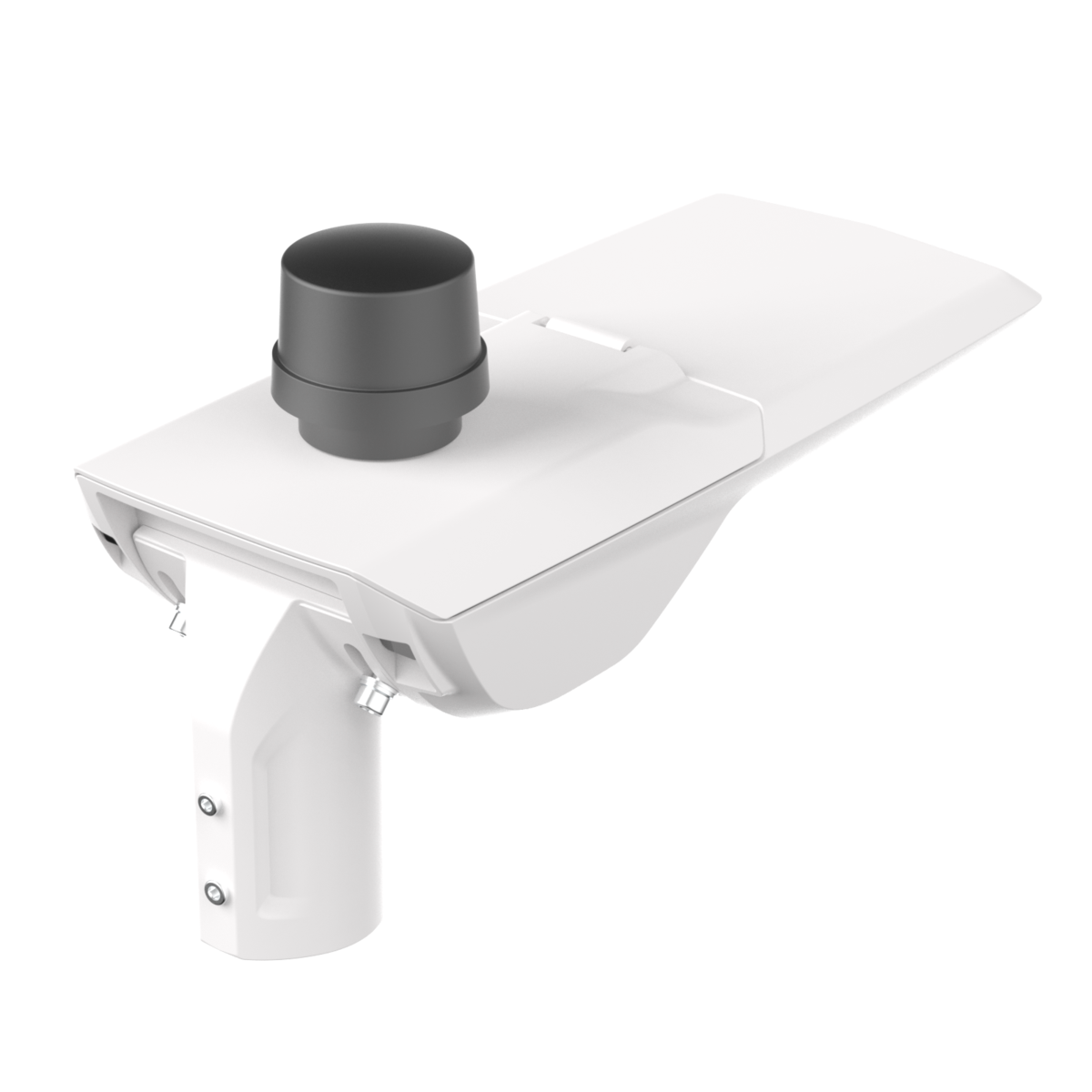

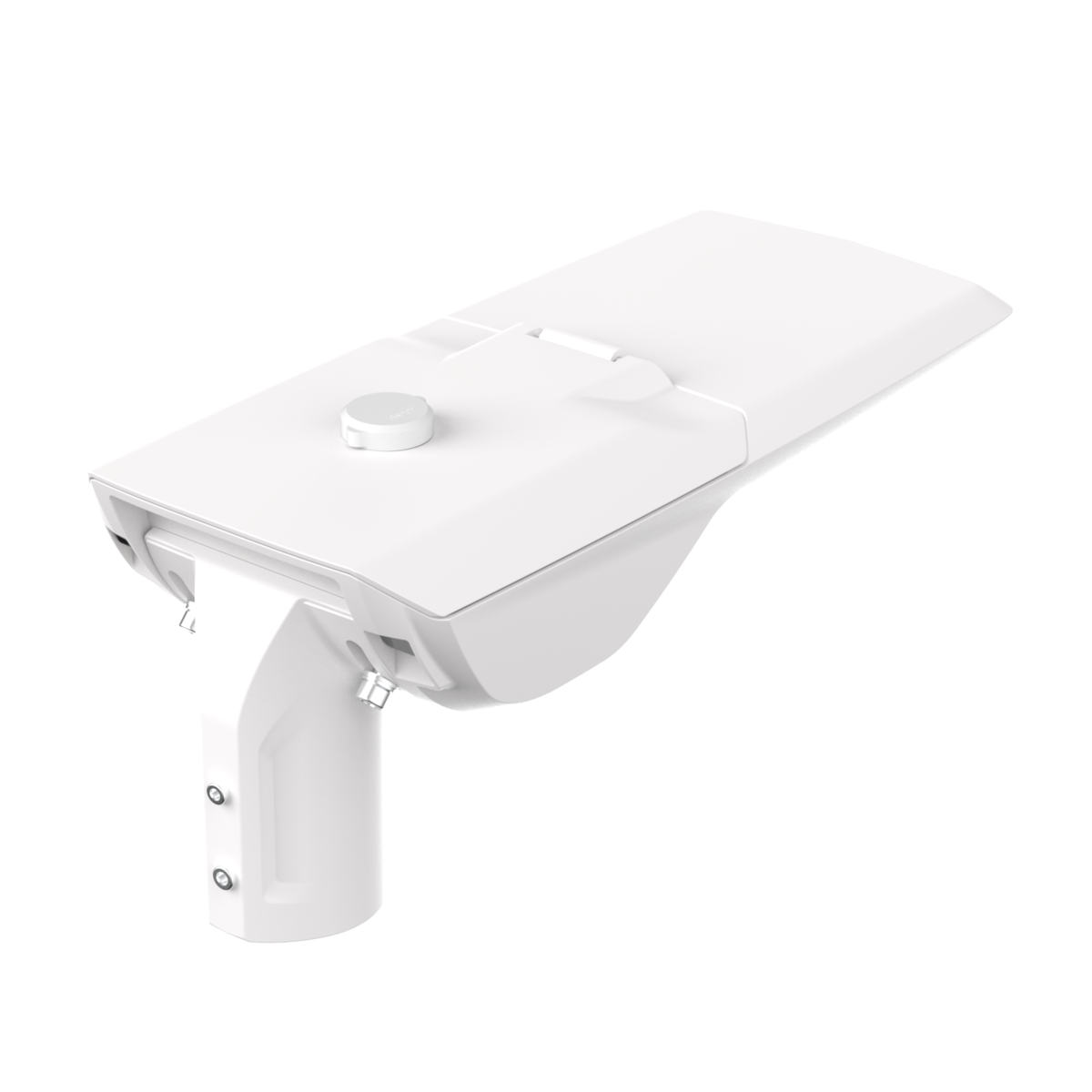

‣ Available on request: DALI, DIM 1..10V, knife switch, 10kV surge protection, NTC, NEMA connector, ZHAGA connector, version with increased corrosion resistance in accordance with class C5-M
‣ Protection: IP66/IK09
‣ Dimensions [mm] L W H: 470 x 200 x 100
‣ Weight: 3.6kg
‣ Warranty: 5 Years
Please download the data sheet for further information
APPLICATION
Suitable for a variety of street lighting applications.
