URBANO LED
STREETLIGHT LUMINAIRE

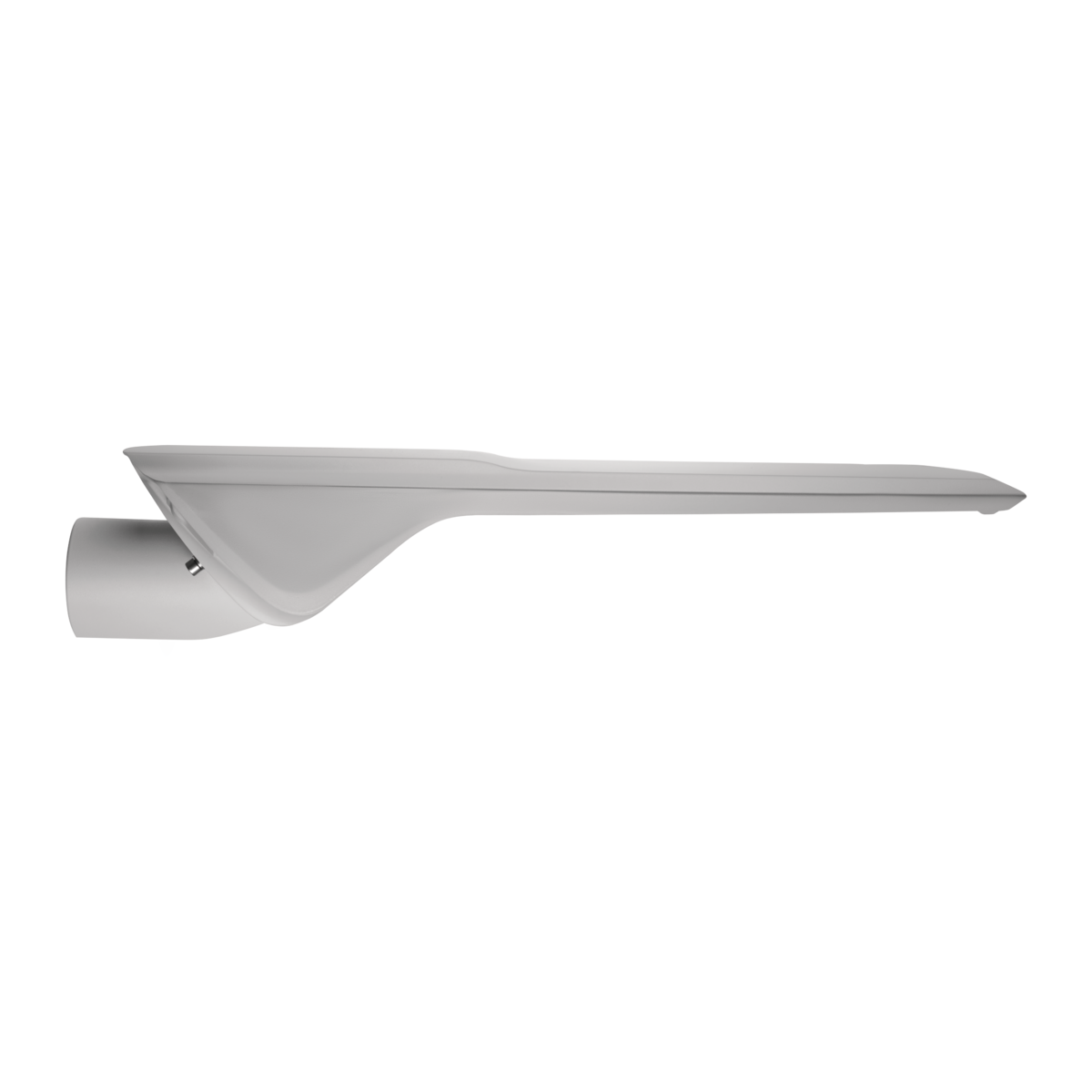

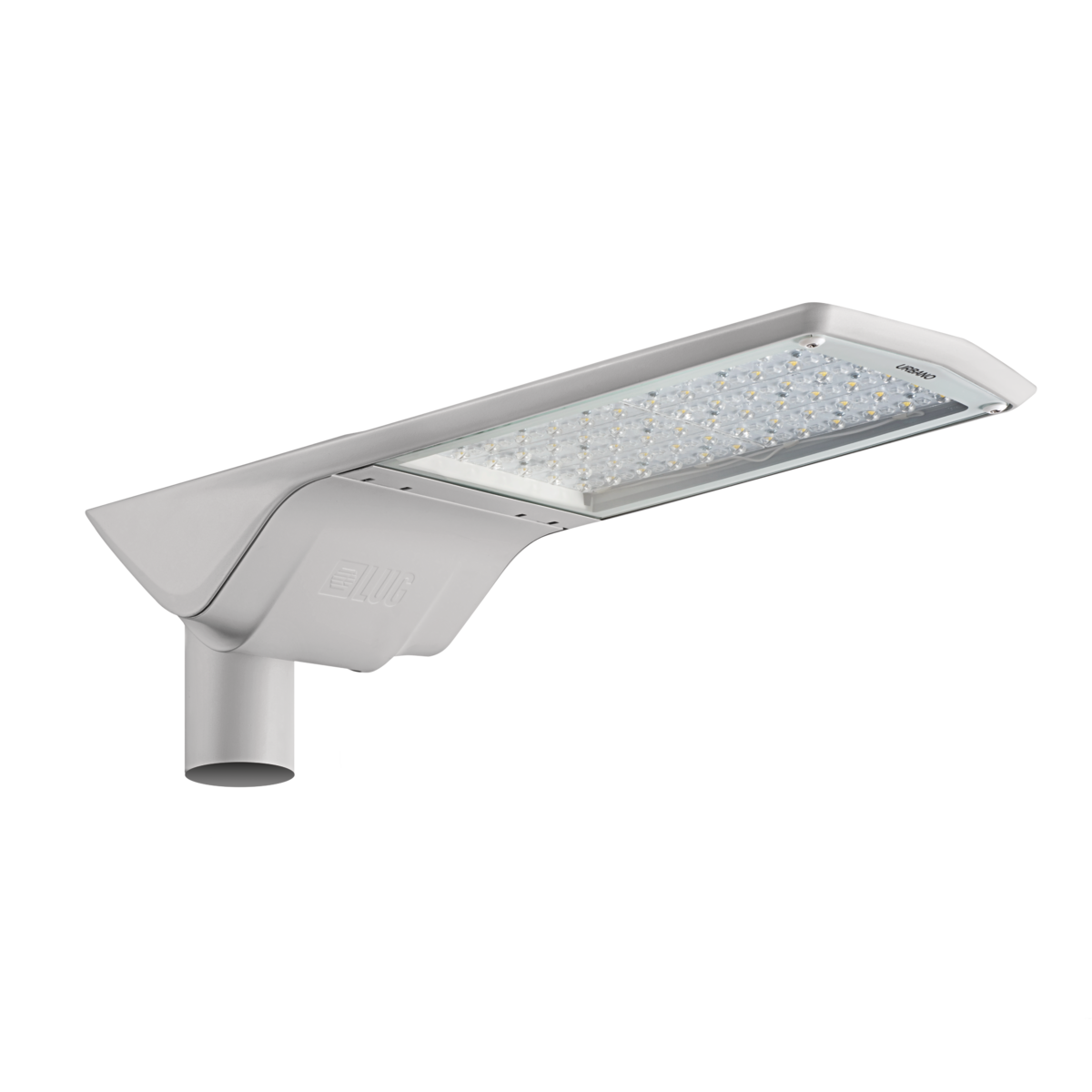

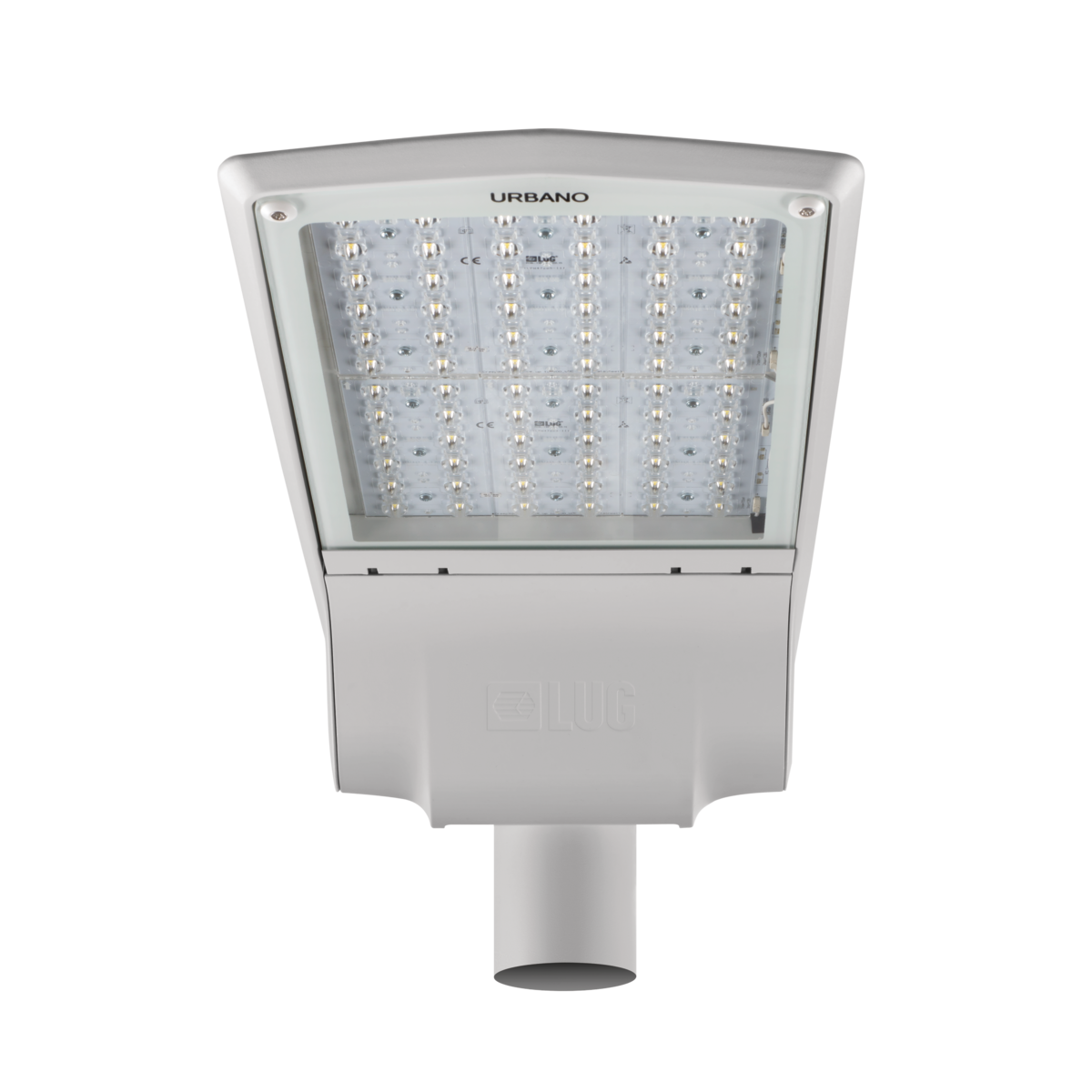

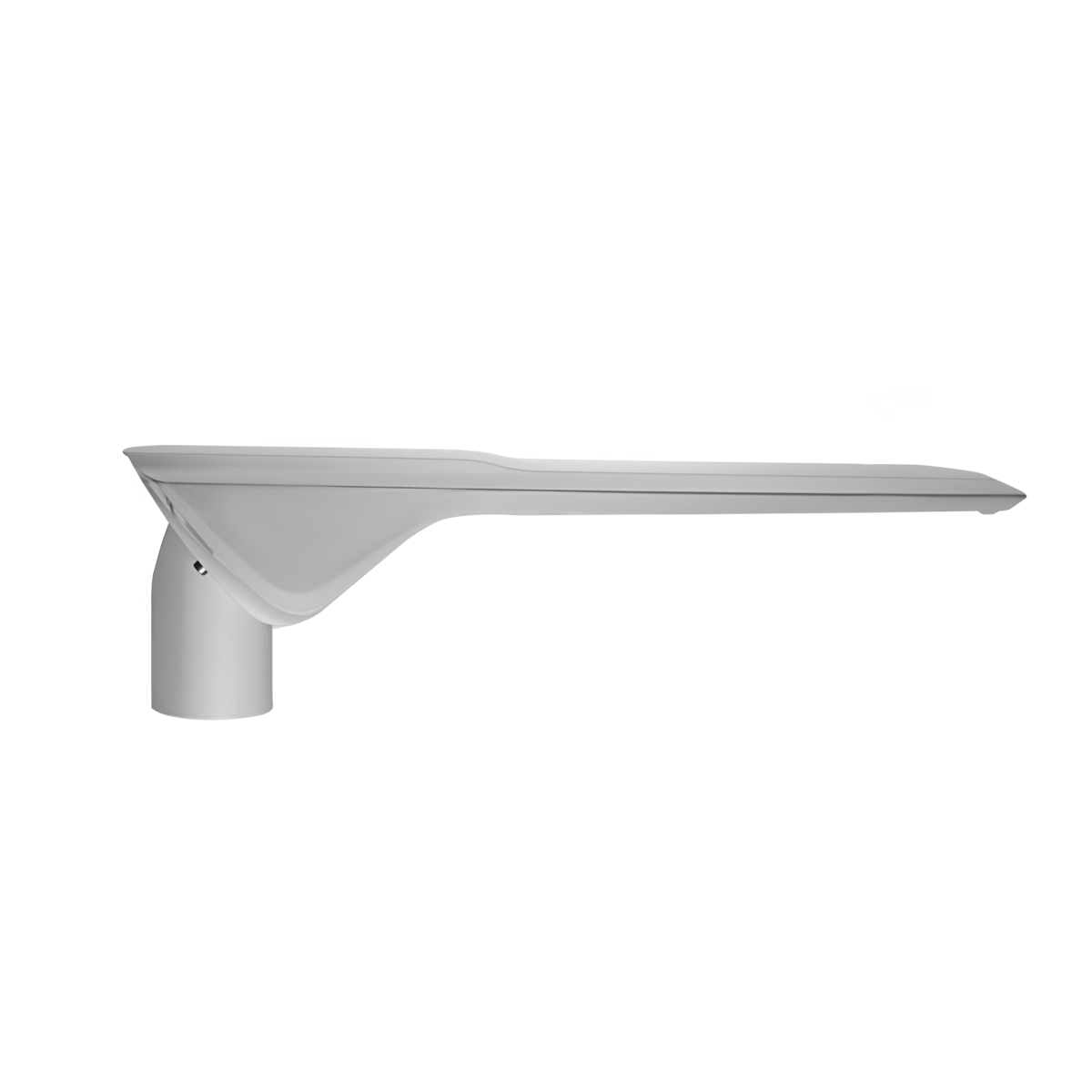

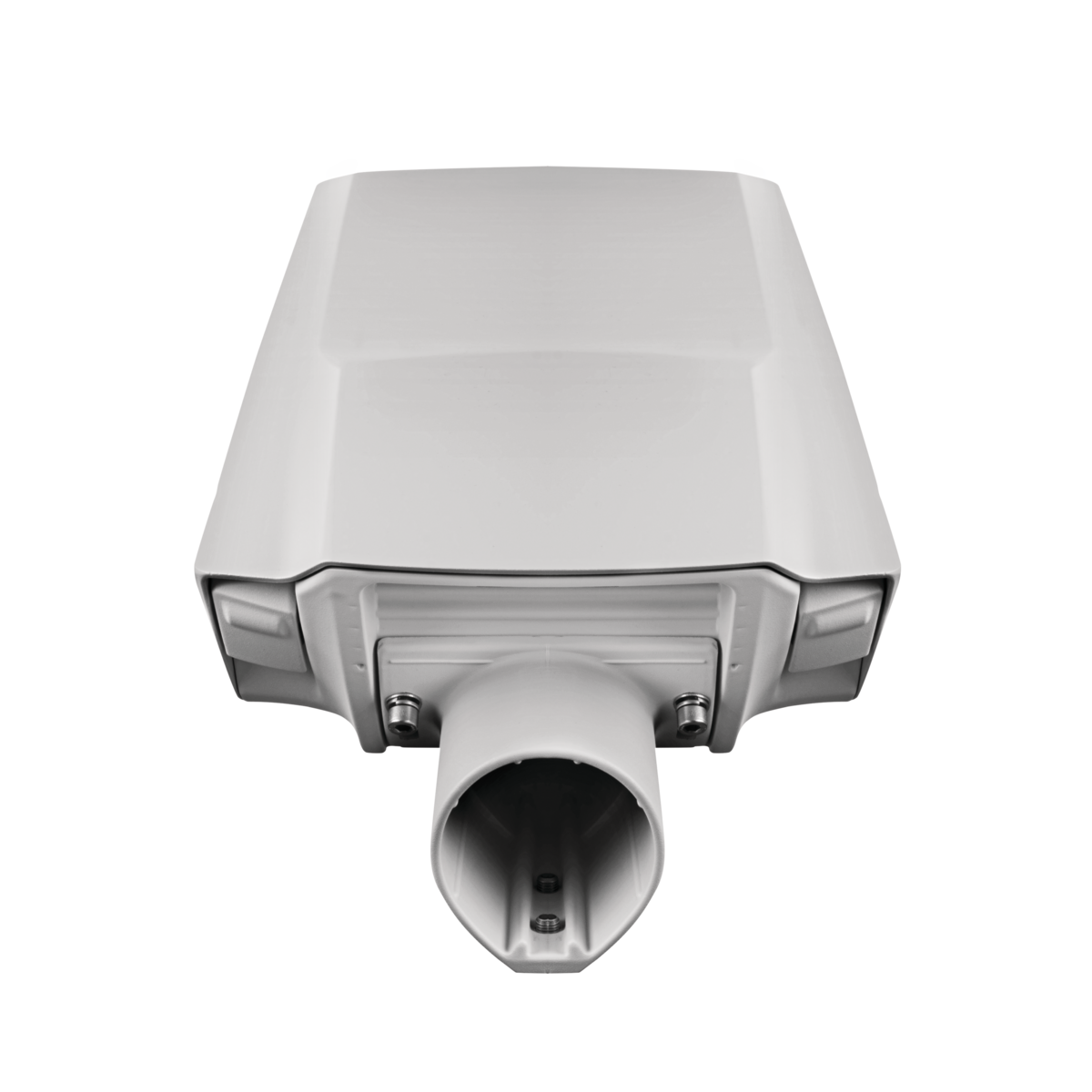

A high performance LED streetlight constructed from die cast aluminium and suitable for pole mounting.
This fitting has a service lifetime of 100,000 hours and an efficacy of up to 151 lumens/W.

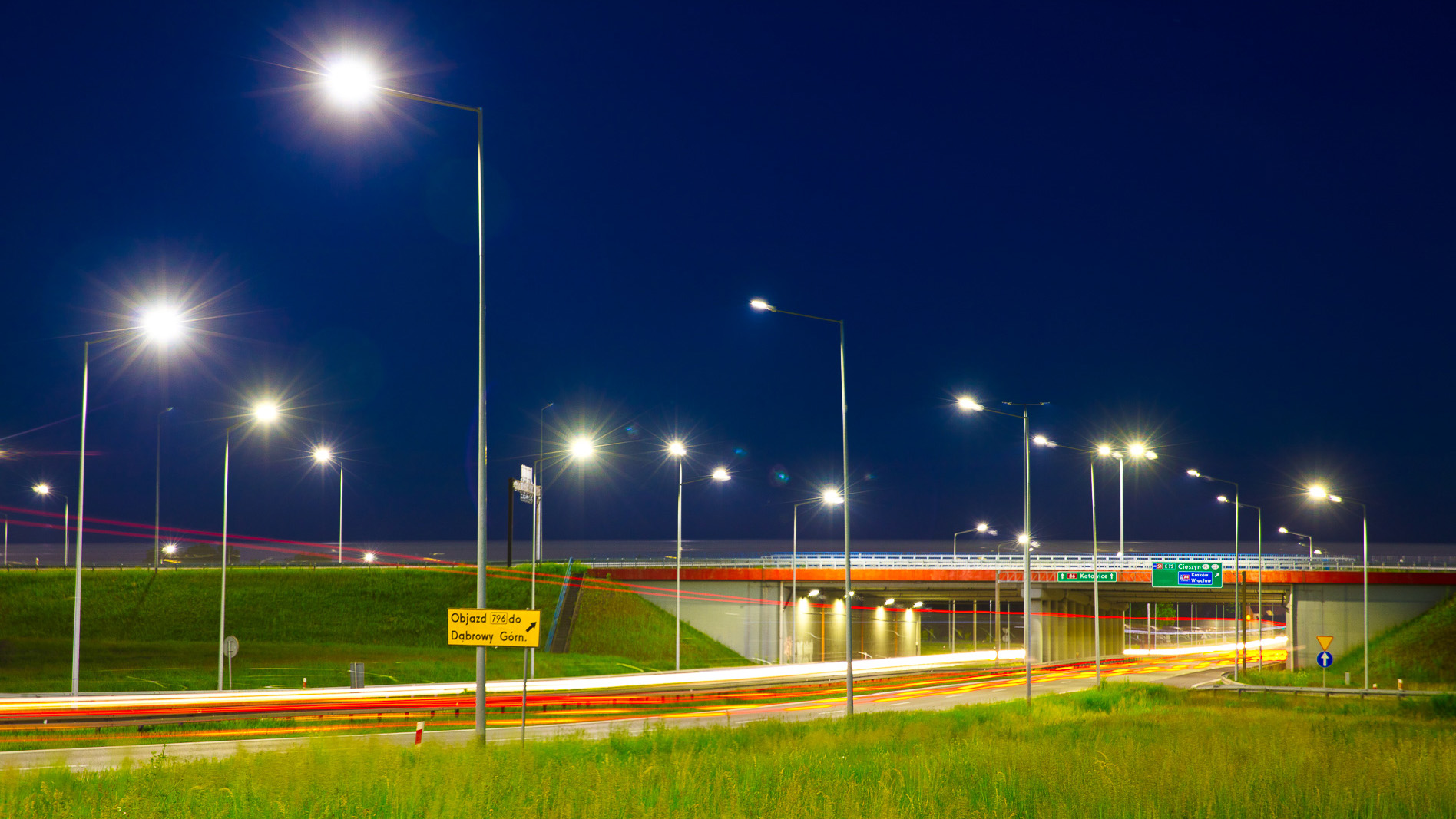

Applications: highways, express roads, local roads, town roads, residential area roads, area lighting.
KEY FEATURES AND SPECIFICATIONS

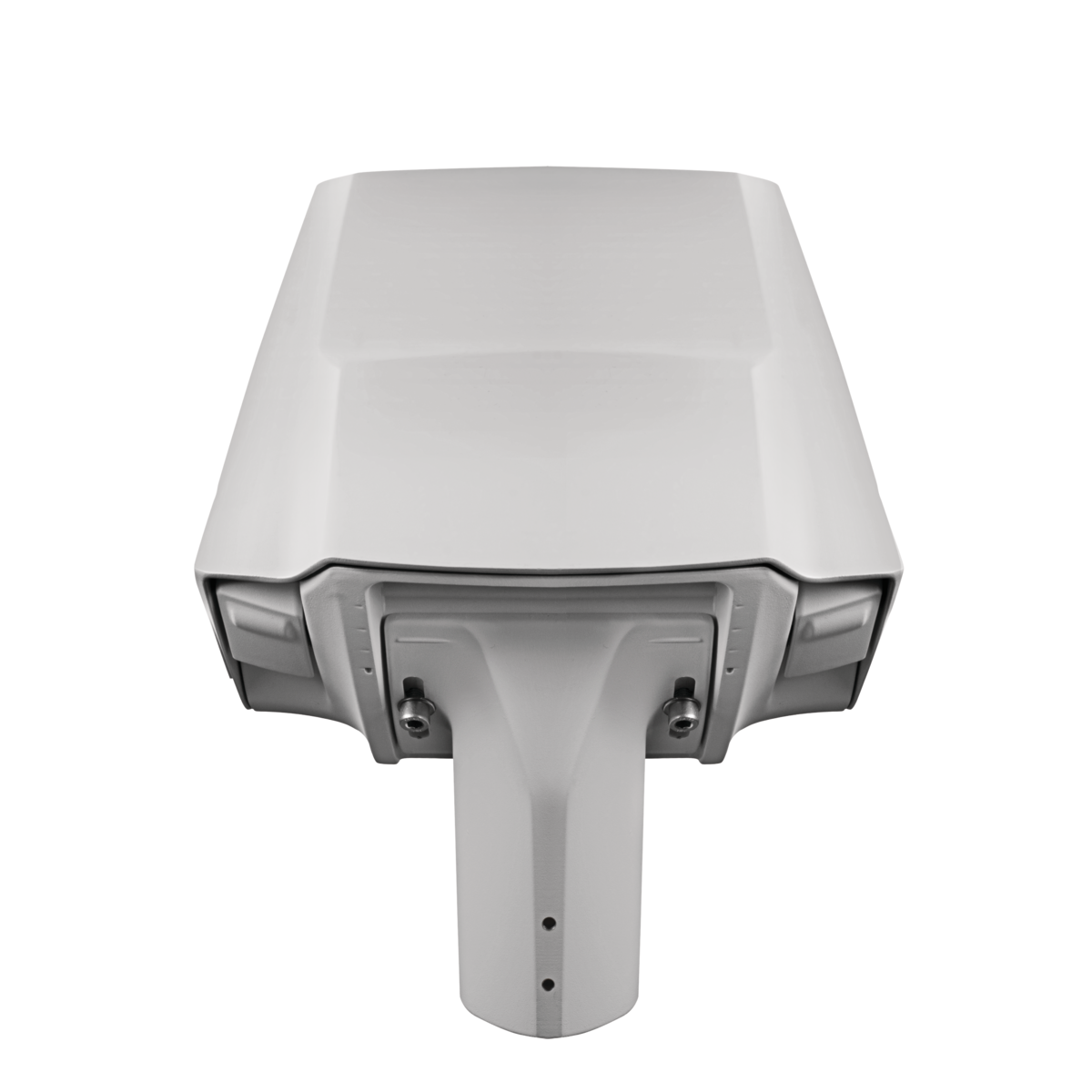

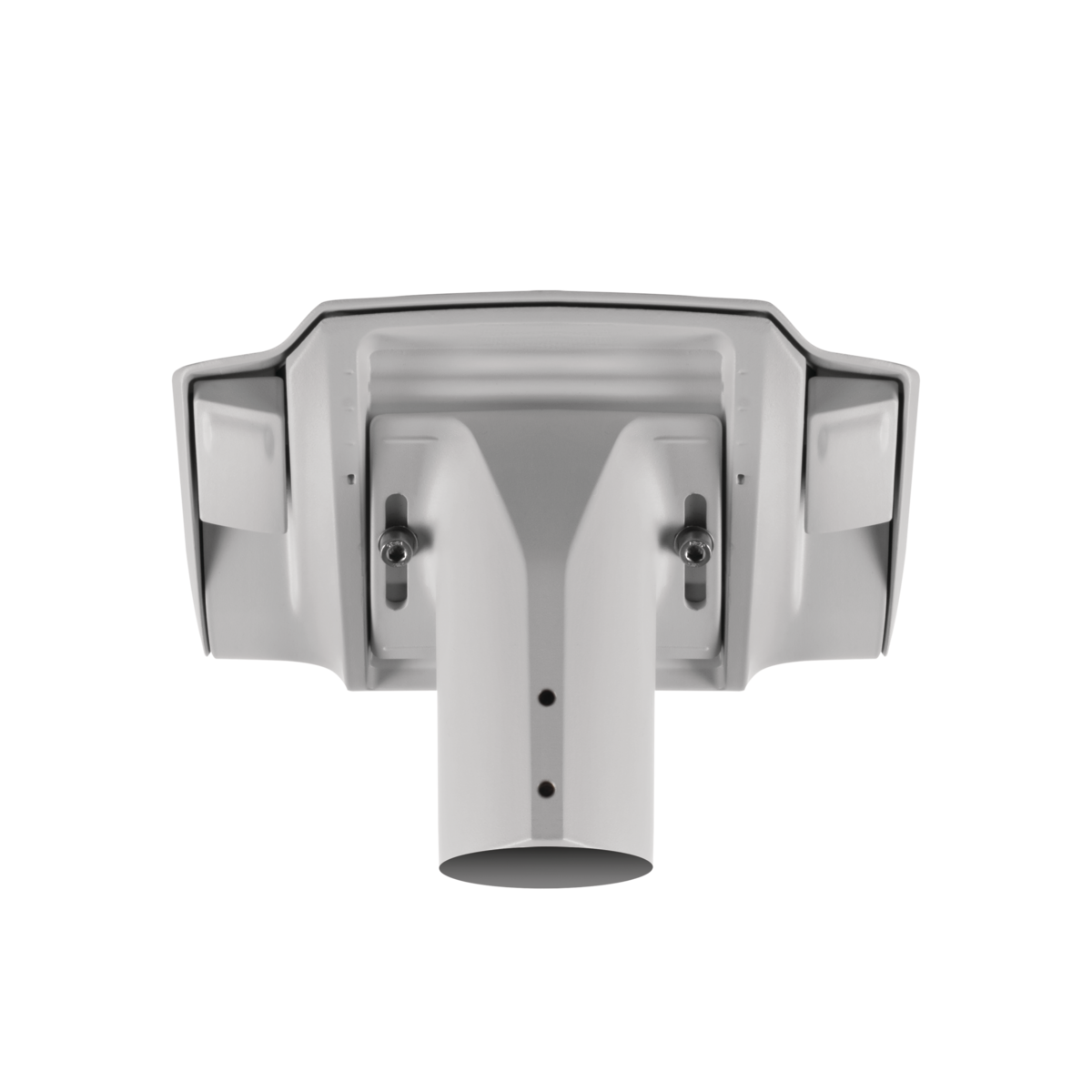

‣ Mounting: on pillar ø60/76mm, on pillar ø60/48mm (only for luminaires with a degree of regulation 0° ... +15°) - modification .834, on outriggers ø60/76mm, on outriggers ø60/48mm (only for luminaires with a degree of regulation 0° ... +15°) - modification .834
‣ Body: high pressure die-cast aluminum
‣ Lateral Surface Wind Exposed: 0,049 m²
‣ Colour: grey, graphite
‣ Diffuser: tempered glass
‣ Power supply efficiency: >93%
‣ Power: 220-240V 50/60Hz
‣ Light source: LED
‣ Colour temperature: 3000K / 4000K
‣ Efficacy: ≤151 lm/W
‣ CRI: >70
‣ Type of equipment: ED
‣ Electrical connection: max 3x2,5 mm² wire, max 2x2,5 mm² wire
‣ Light distribution: asymmetric
‣ Way of lighting: direct
‣ Choice of optics
‣ ULOR / DLOR: 0% / 100%
‣ Lifetime (L90): 100,000 hours
‣ Protection: IP66/IK09
‣ Dimensions [mm] L W H: 730 x 295 x 135
‣ Warranty: 5 Years
‣ Available on request:
- DALI
- DIM 1..10V
- LLOC
- Twilight sensor
- 10kV surge protection
- NTC
- NEMA connector
- ZHAGA connector
- Colour temperature - 2200K; 2700K
Please download the data sheet for further information
APPLICATION
Suitable for a variety of street lighting applications.
