KEY FEATURES AND SPECIFICATIONS

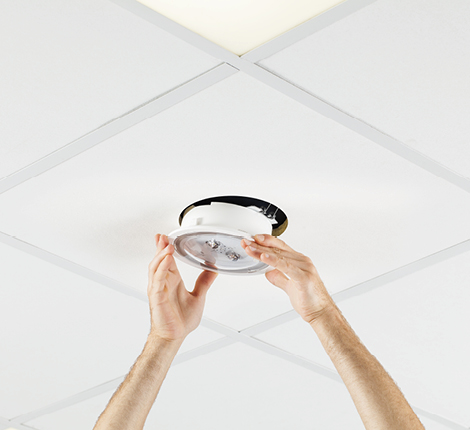

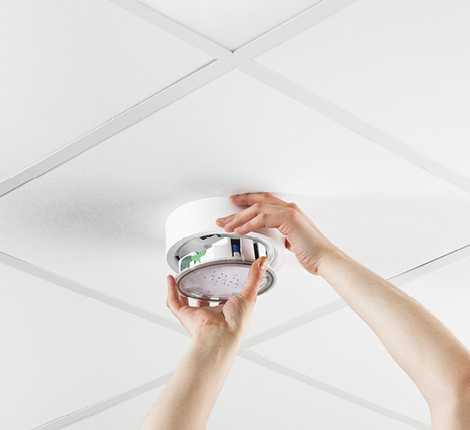

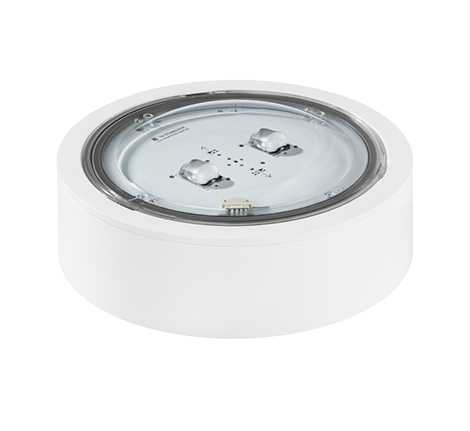

‣ Ceiling surface/recess/suspension mount
‣ Output up to 524 lumens
‣ Maintained / non-maintained
‣ 3 hour battery life

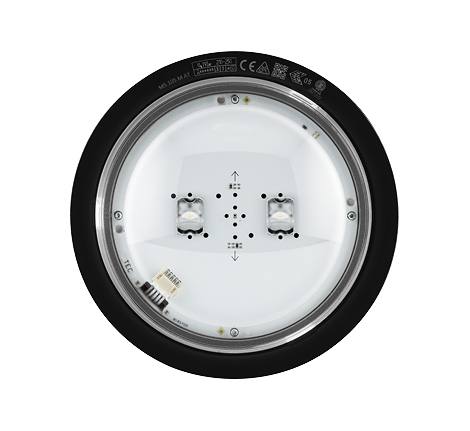

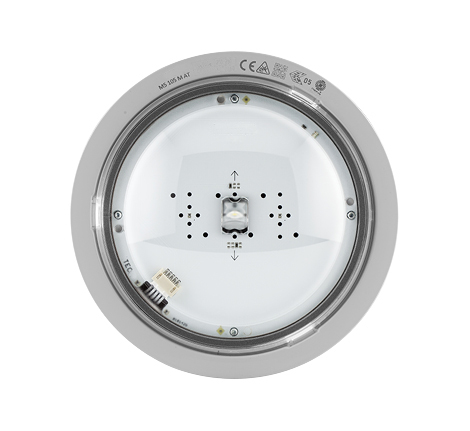

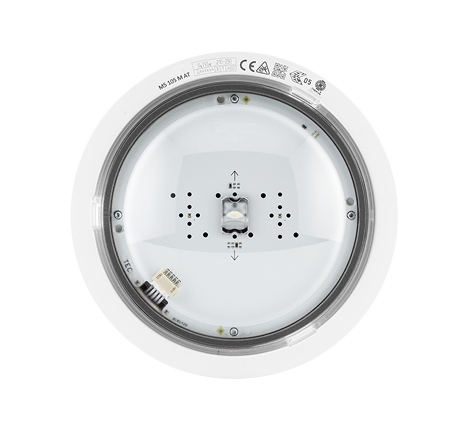

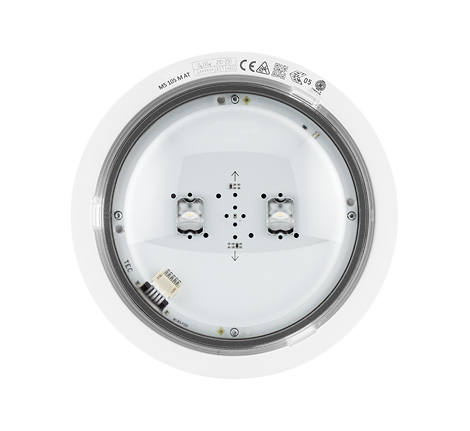

‣ PC/ABS housing (white, grey or black)
‣ Clear polycarbonate diffuser
‣ Plug-in connection
‣ Light distribution:
- M and S version – open space area (anti panic light)
- C version – evacuation route lighting (corridor lens) optimal up to 7 m high
- F version – evacuation route light (corridor lens) above 7 m high
- W version – lighting of the final exit / fire-protection devices
‣ IP65
‣ IK06
‣ 170mm diameter
‣ Cold versions available
‣ Extended lifetime with LiFePO4 packages
‣ Versions:
- ST – for button test
- AT - auto-test / self-test
- DD - DATA2
- for central battery
- DALI
‣ Warranty:
- 2 years - ST
- 3 years - AT
- 5 years - DATA, CB
