KEY FEATURES AND SPECIFICATIONS

‣ MOUNTING: Ceiling recessed
‣ LIGHT SOURCE: LED
‣ OPTICAL SYSTEM:

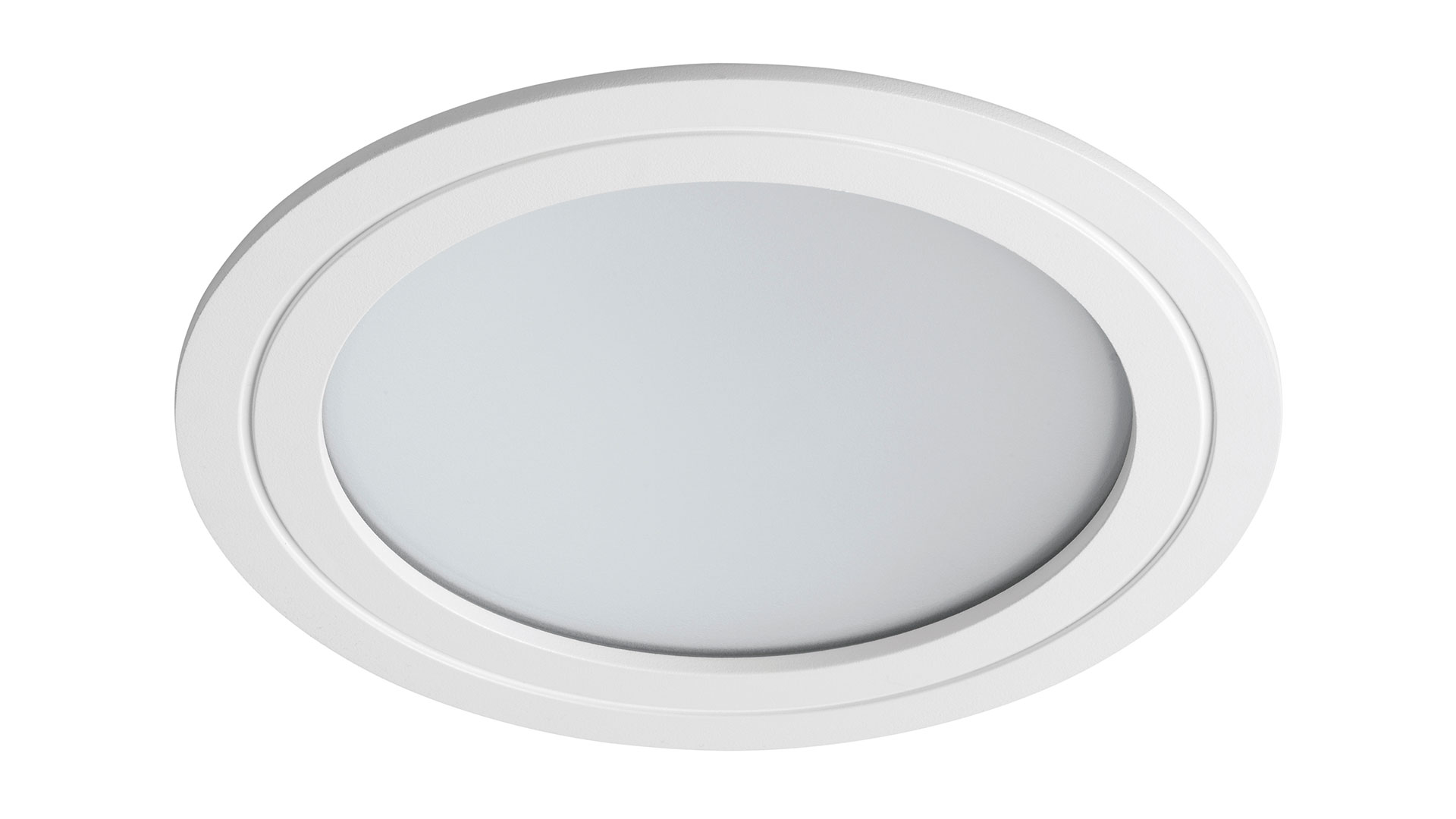

- Polished reflector + opal cover (PRO)

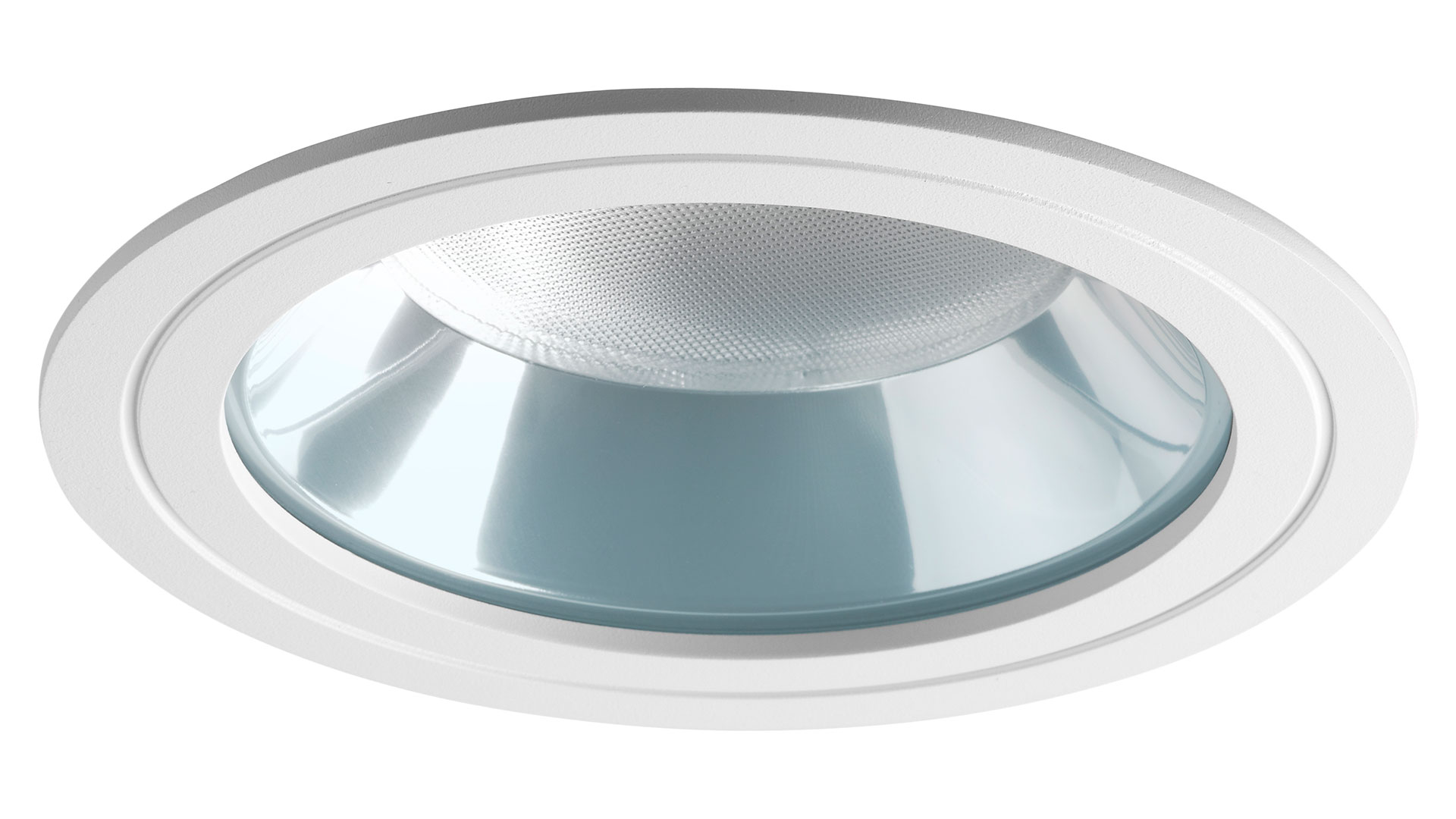

- Polished reflector + transparent cover (PRT)

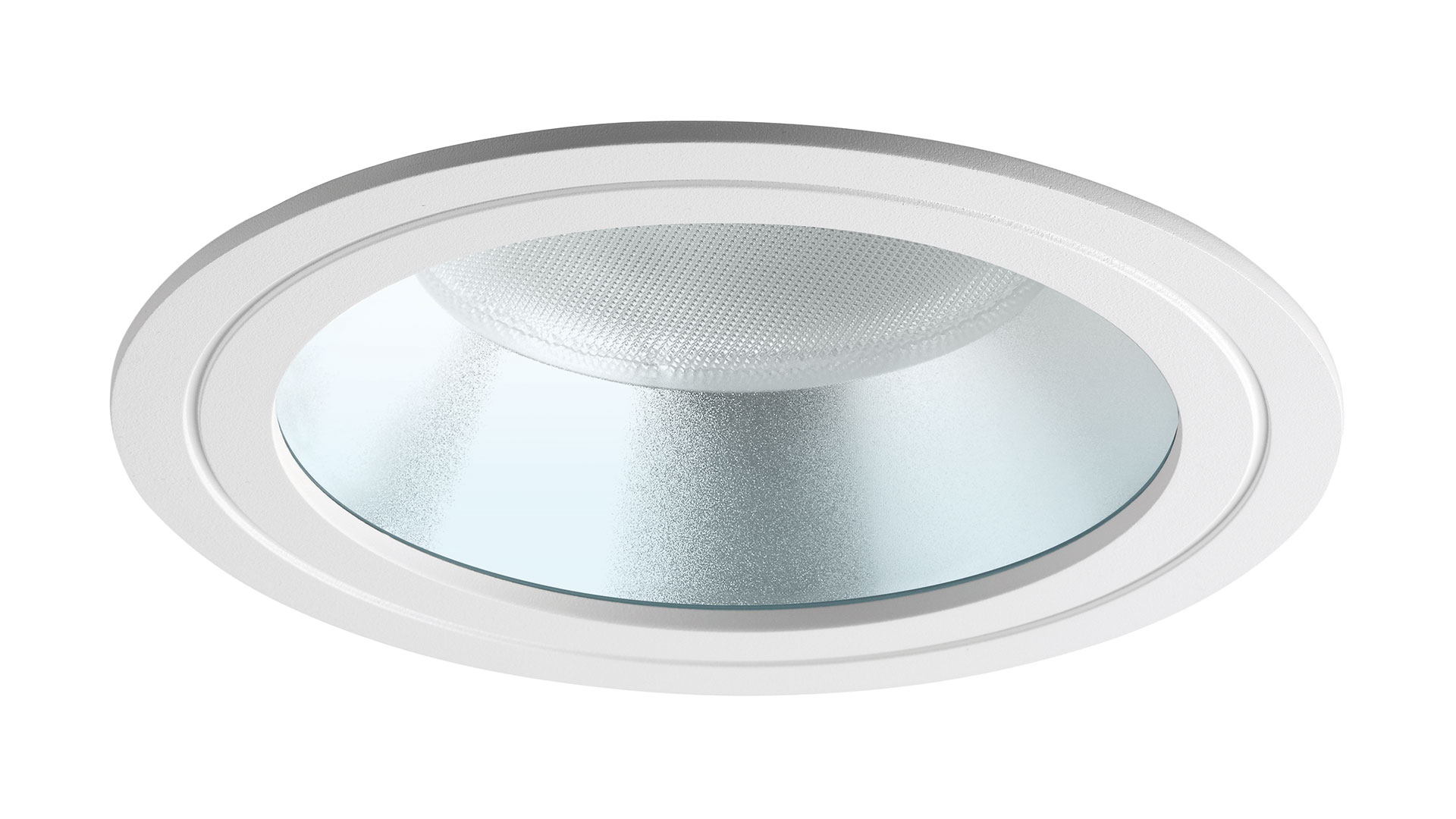

- Matt reflector + transparent cover (MRT)

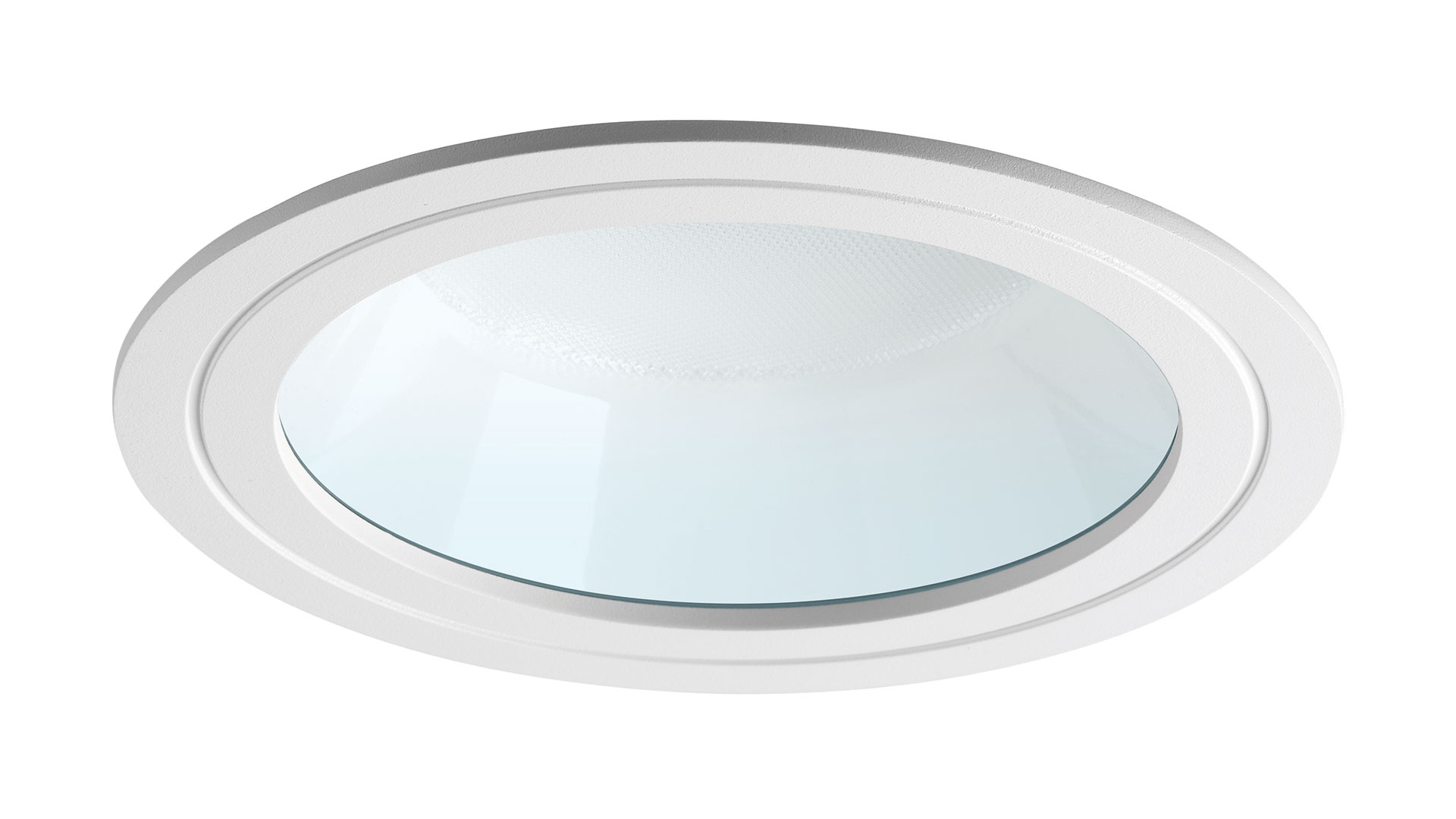

- White reflector + transparent cover (WRT)
‣ LIGHT DISTRIBUTION: Direct
‣ BEAM ANGLE:
- 72º
- 74º
‣ COLOUR TEMPERATURE: 3000K/4000K
‣ CRI: >80
‣ EFFICACY: ≤ 112 lm/W

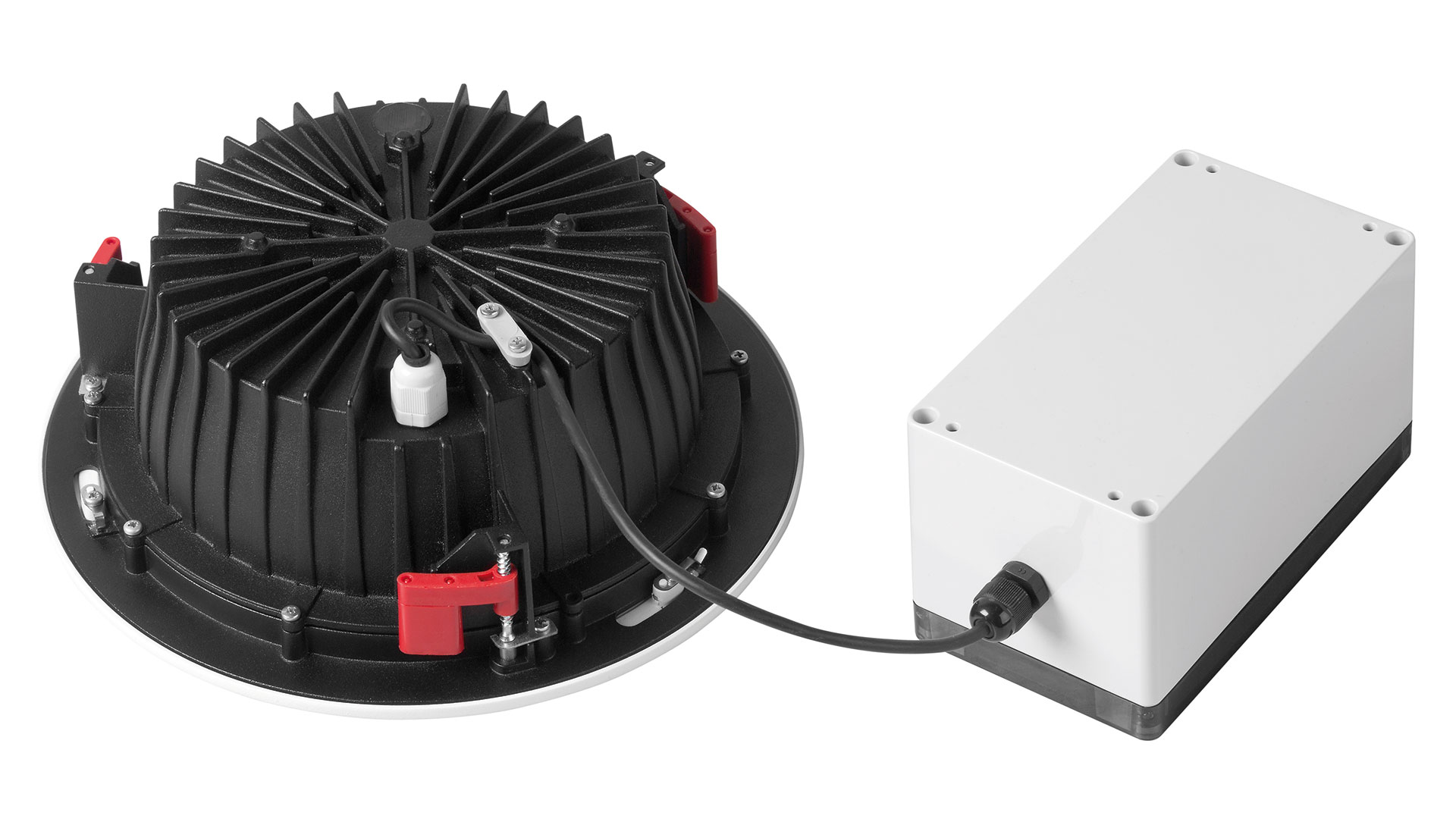

‣ WIRING:
- Electronic control gear FIX / DALI (ECG / EDA)
‣ MATERIALS:
- Diffuser: microprismatic PMMA
- Housing: die-cast aluminium
- Reflector: polished / matt / white anodised aluminium
- Trim: die cast aluminium
- Cover: transparent / opal glass
‣ SURFACE FINISH:
- Trim: white RAL 9003 (W03)
‣ SERVICE LIFETIME (Ta=25°C): 50,000 hours / L80 / B10
‣ AMBIENT OPERATING TEMPERATURE: From -20 °C to +35 °C
‣ 220-240V 50-60Hz
‣ INGRESS PROTECTION: IP65
‣ OVERALL DIAMETER: 251mm
‣ CUT-OUT: 232mm
‣ 220-240V 50-60Hz
‣ WARRANTY: 5 years
