KEY FEATURES AND SPECIFICATIONS

‣ MOUNTING: Ceiling recessed
‣ LIGHT SOURCE: LED
‣ OPTICAL SYSTEM:

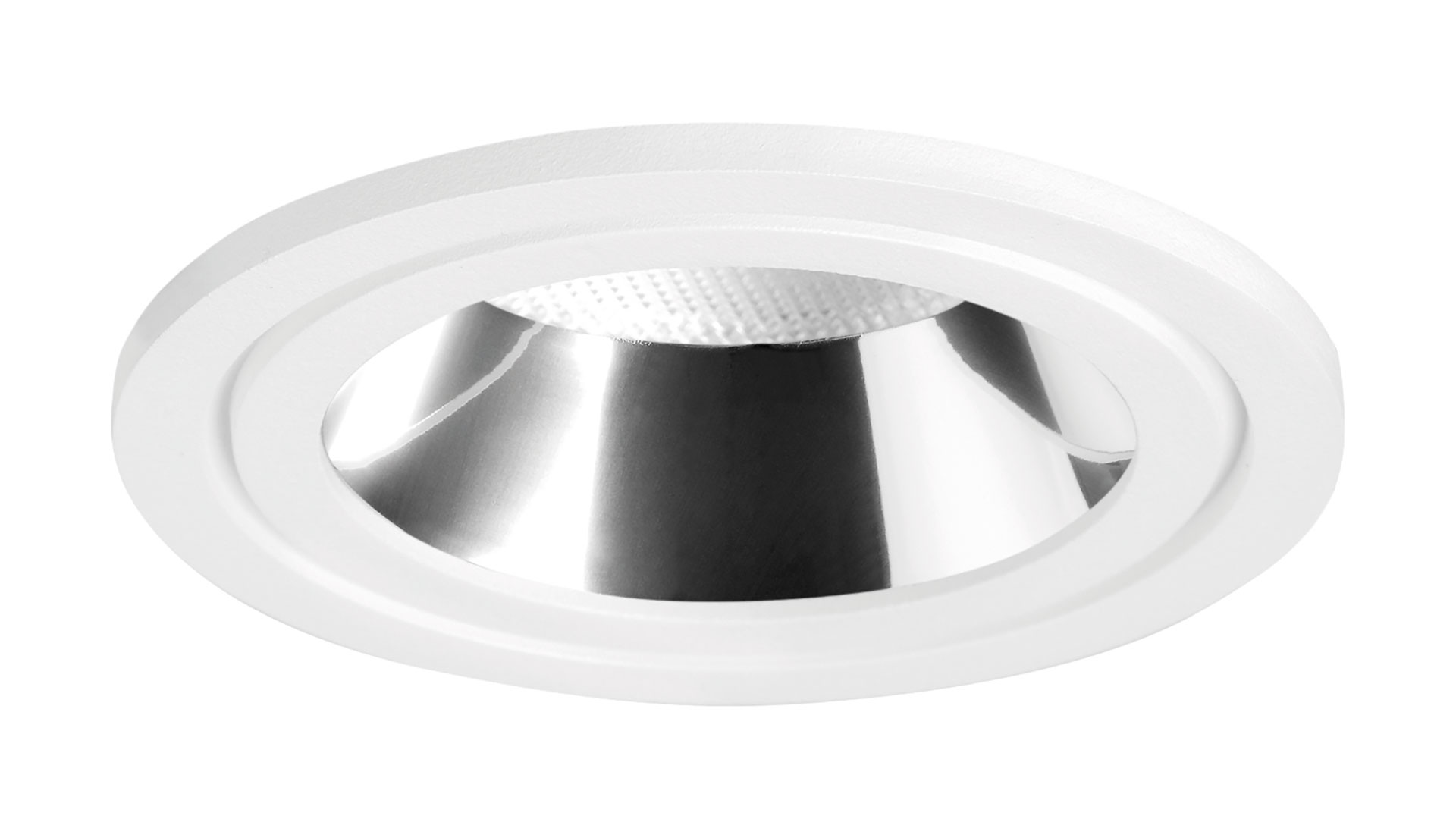

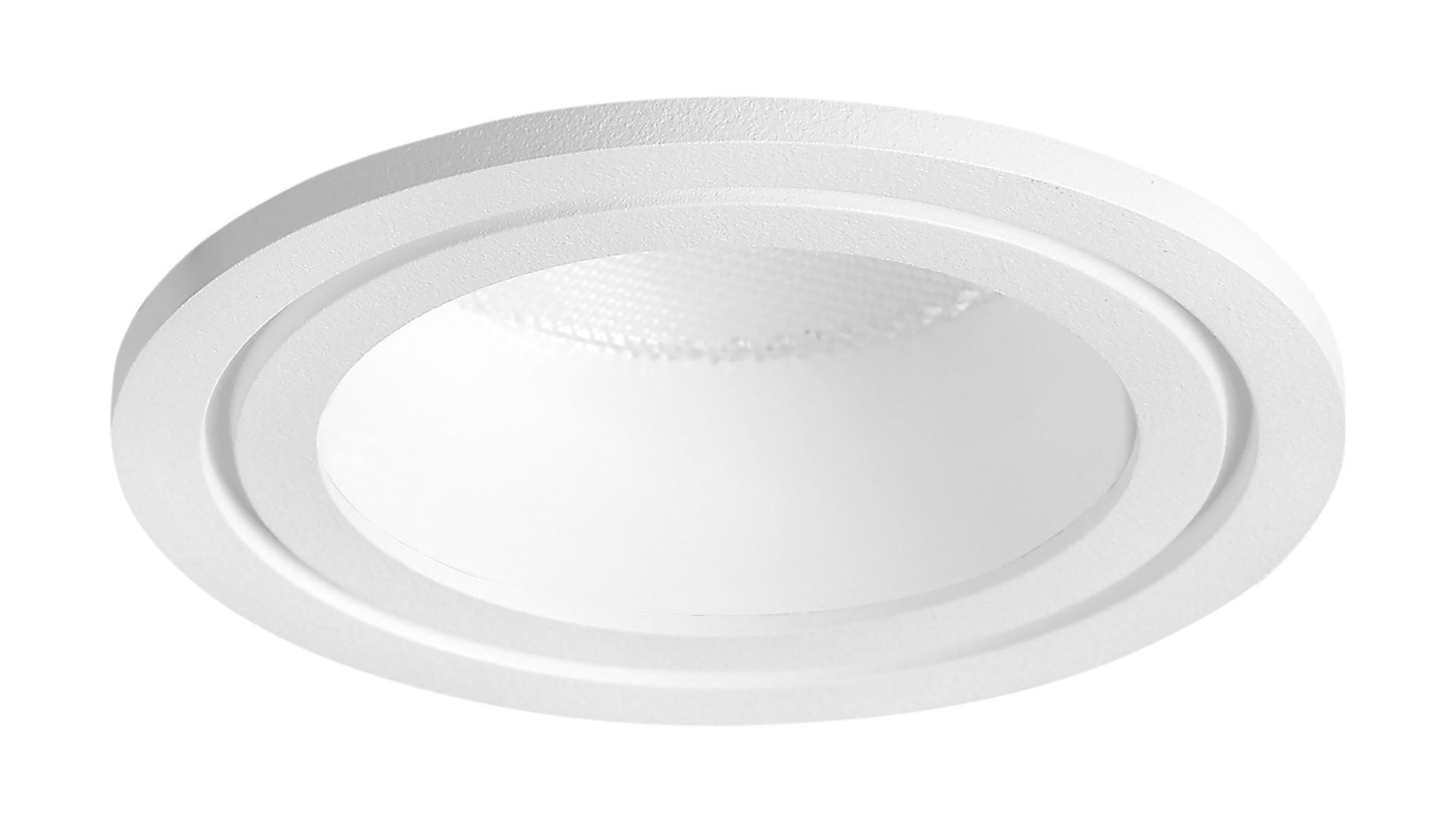

- Polished reflector (PRE)

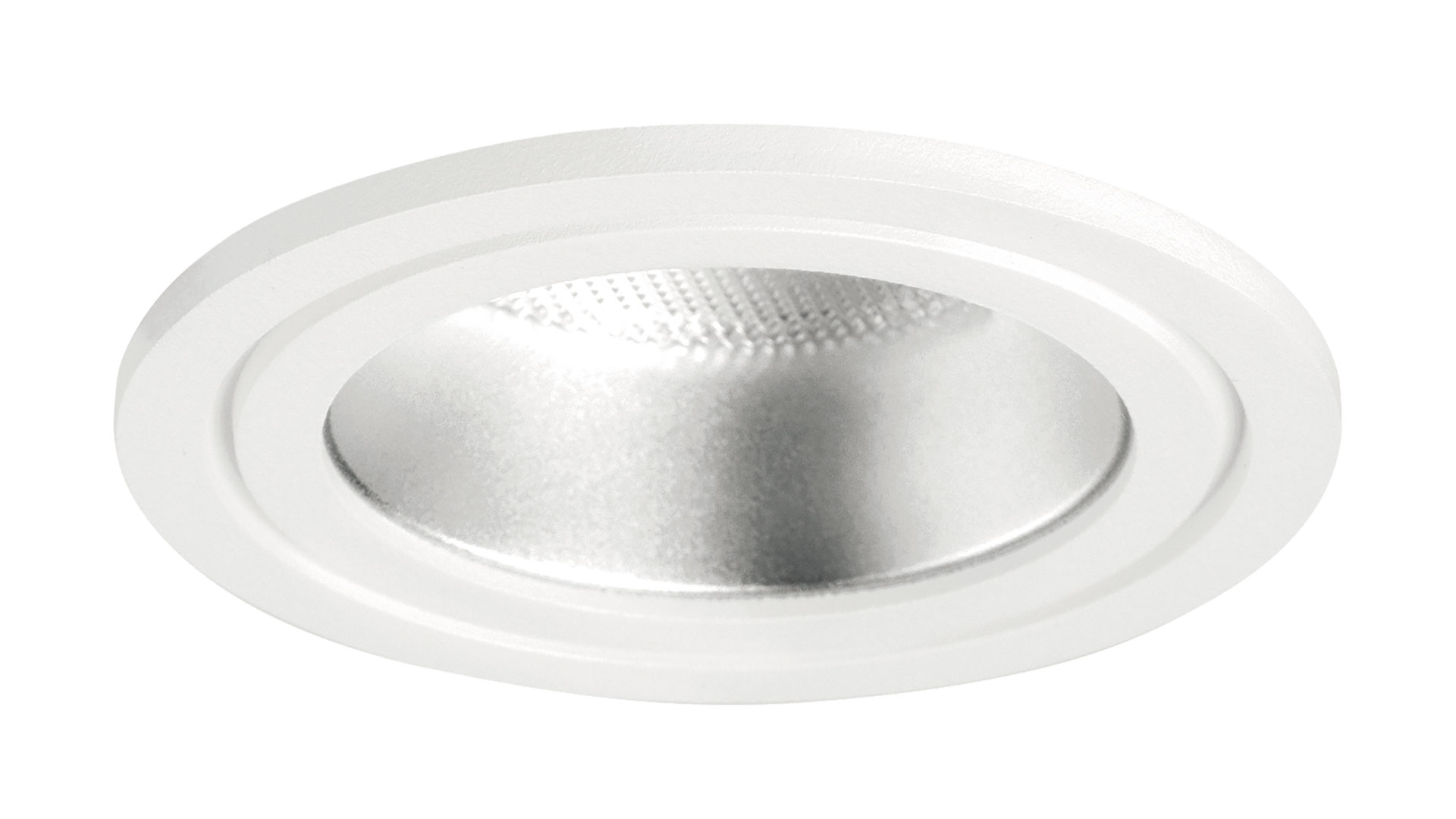

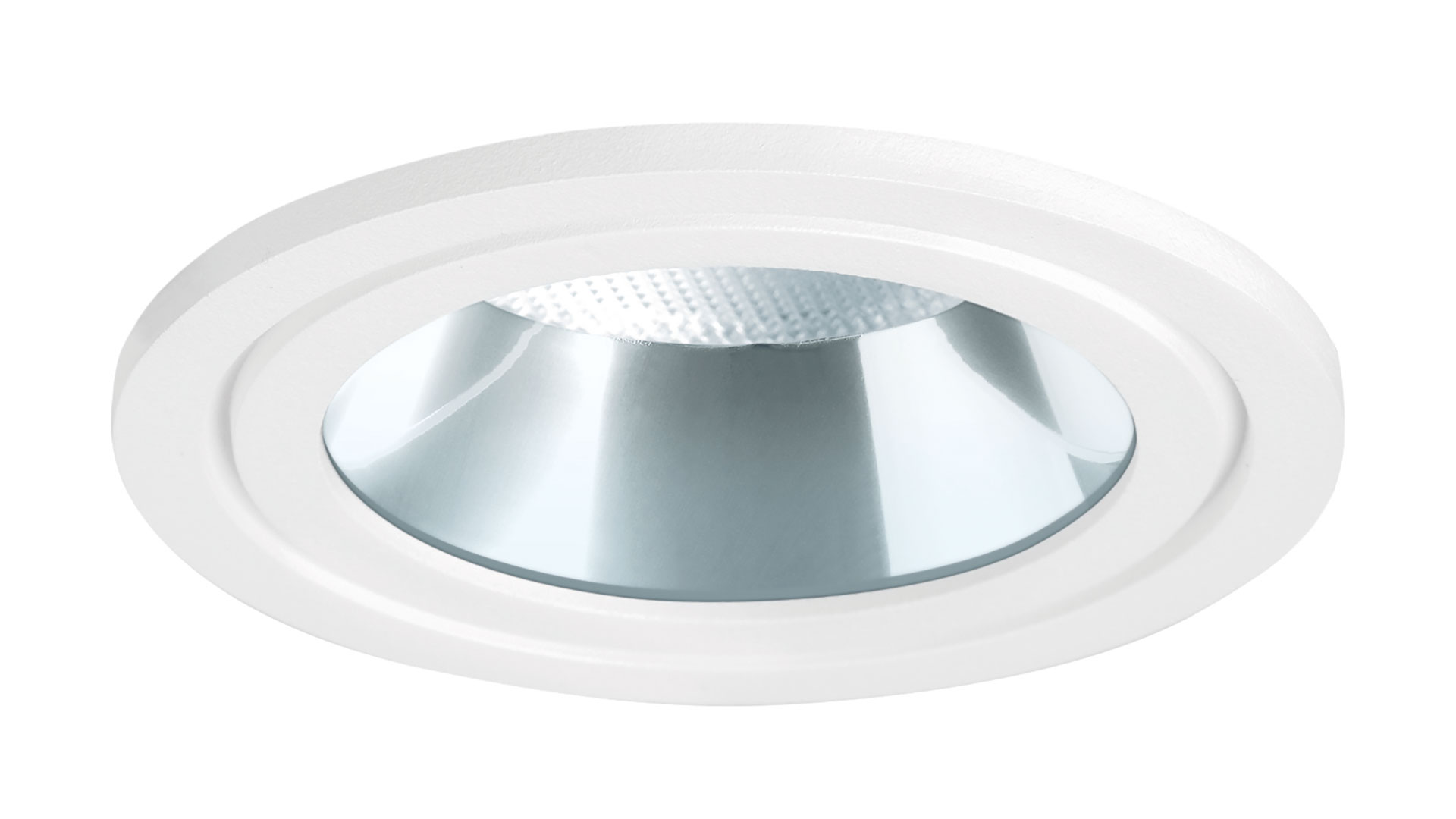

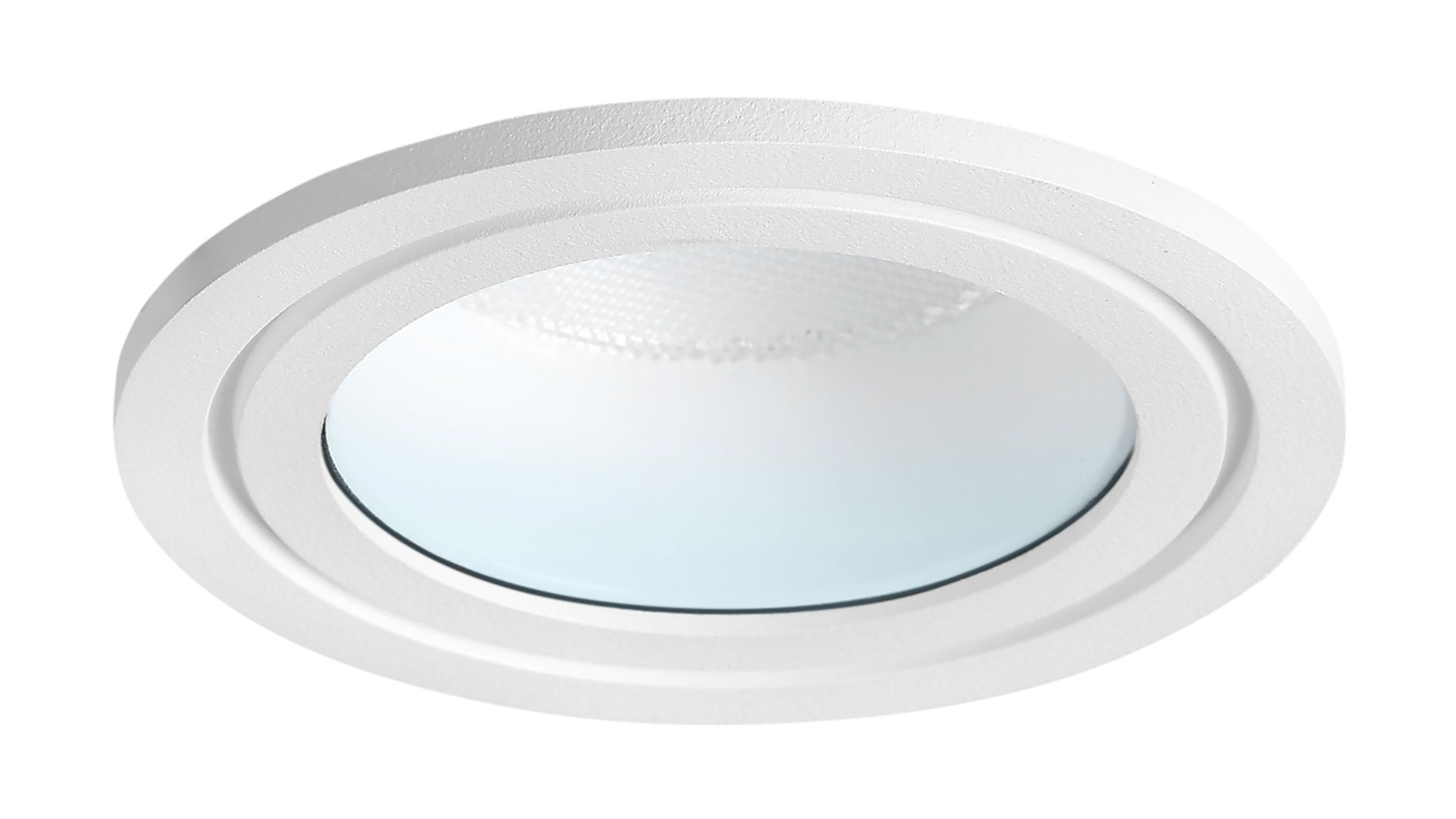

- Polished reflector + transparent cover (PRT)

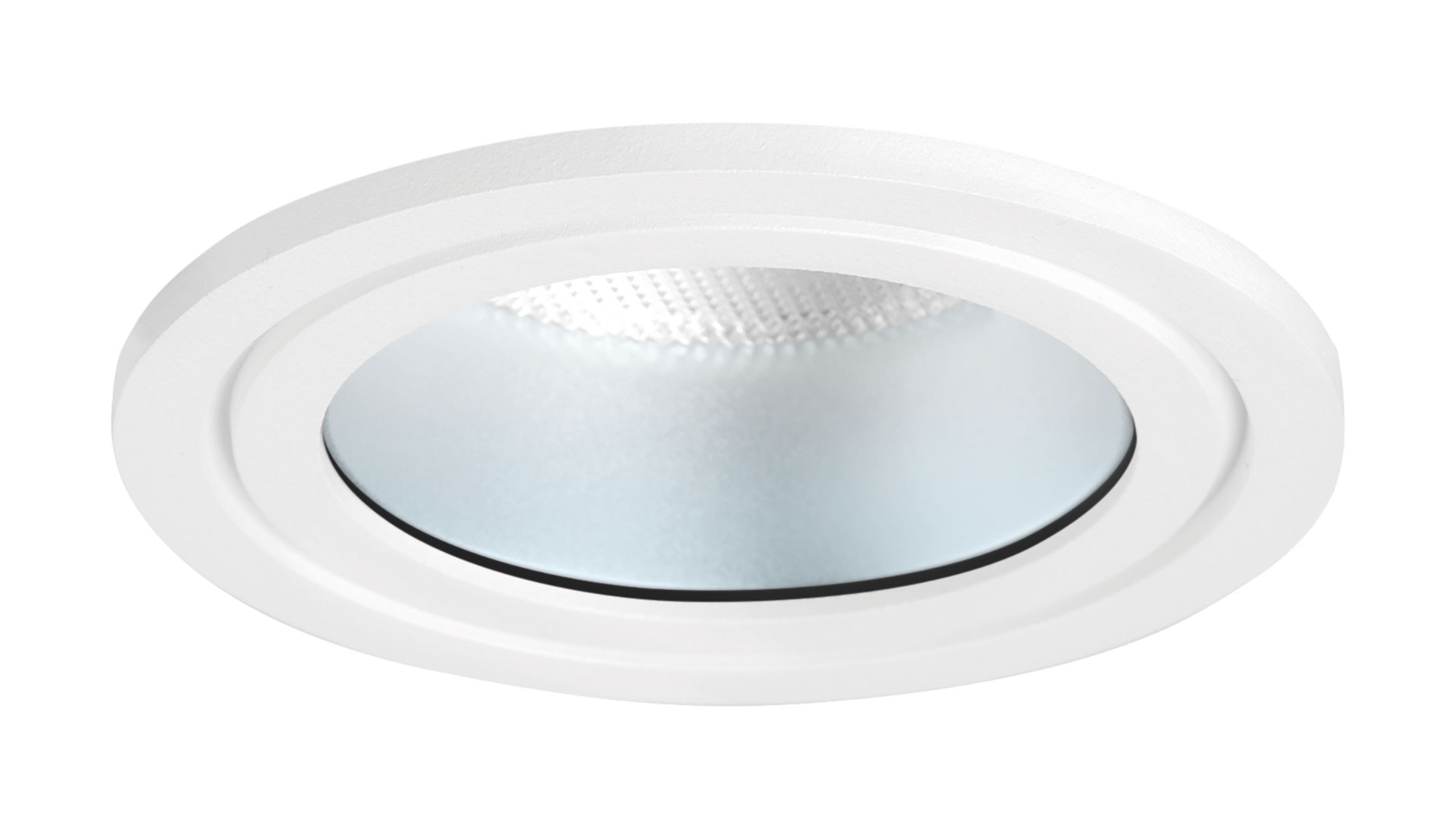

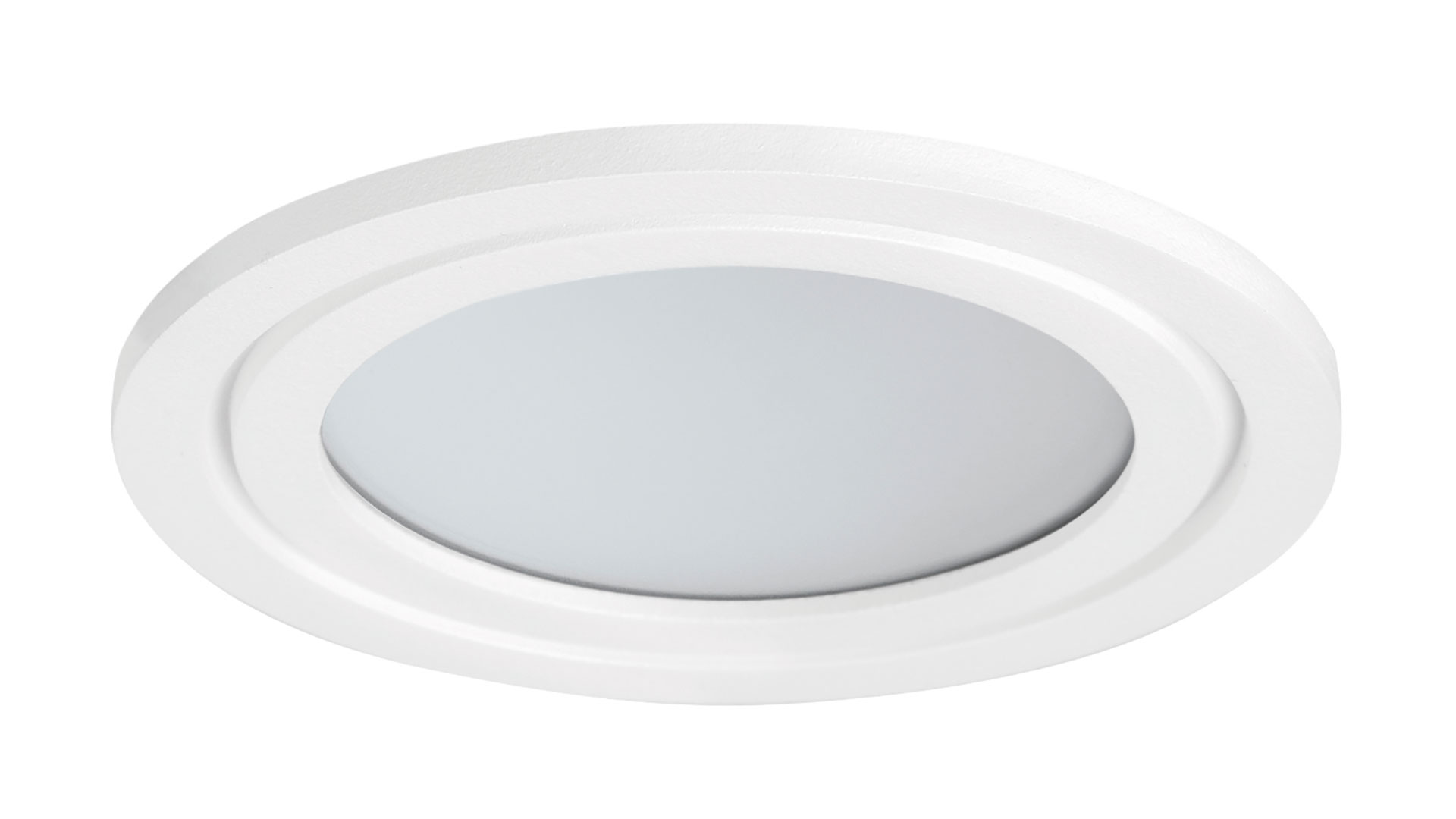

- Polished reflector + opal cover (PRO)
- On request: Matt/White reflector
‣ LIGHT DISTRIBUTION: Direct
‣ BEAM ANGLE:
- 60º
- 84º
‣ COLOUR TEMPERATURE: 3000K/4000K
‣ CRI: >80 Ra
‣ EFFICACY: ≤ 106 lm/W
‣ WIRING:

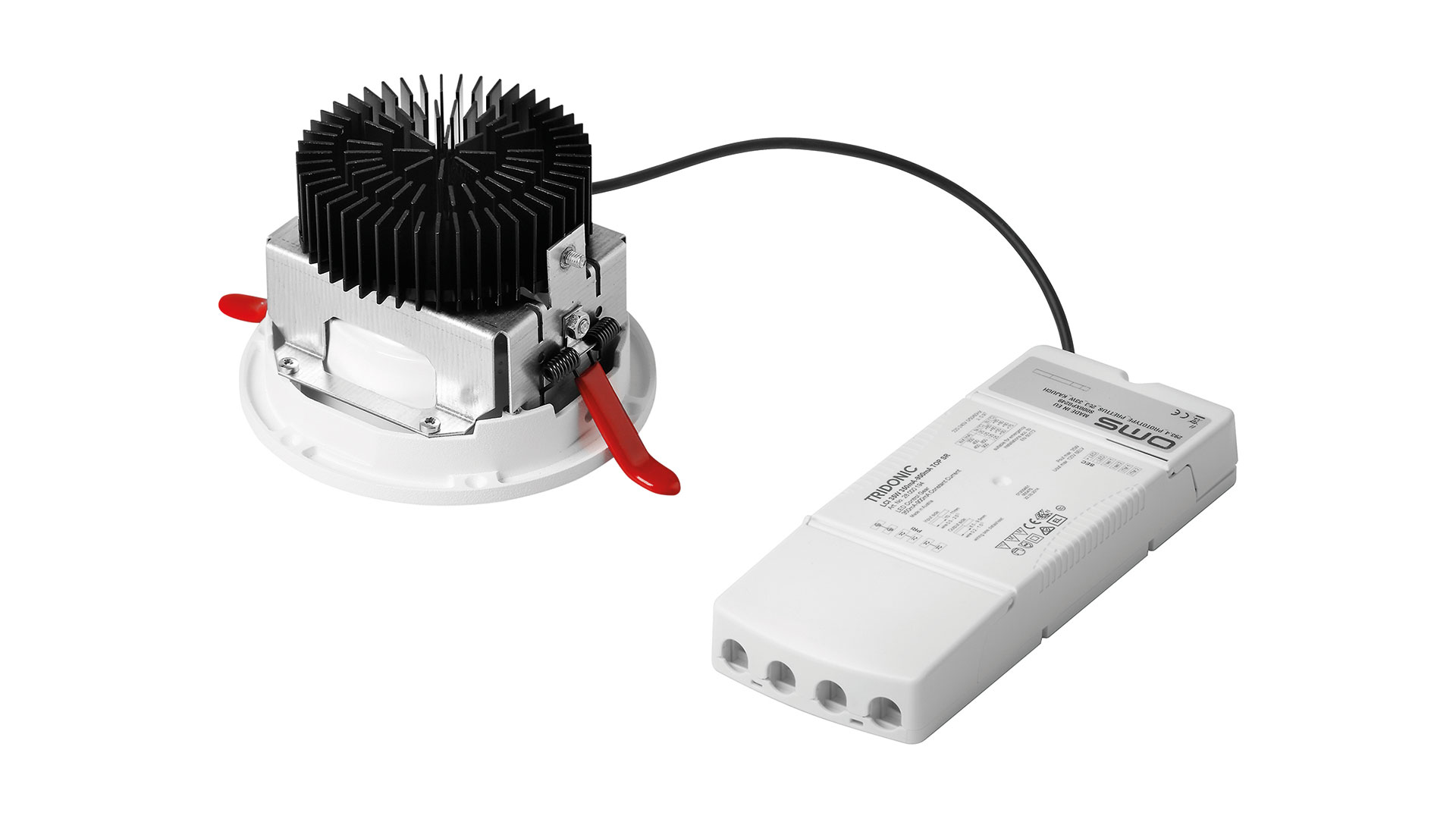

- Electronic control gear FIX/DALI (ECG/EDA)
‣ MATERIALS:
- Housing: sheet steel
- Diffuser: microprismatic PMMA
- Trim: die-cast aluminium
- Reflector: polished anodised aluminium
- Cover: transparent/opal PMMA
‣ SURFACE FINISH:
- Trim: white RAL 9003 (W03)
‣ SERVICE LIFETIME (Ta=25°C): 50,000 hours / L80 / B10
‣ AMBIENT OPERATING TEMPERATURE: From -20 °C to +35 °C
‣ 220-240V 50-60Hz
‣ INGRESS PROTECTION: IP20/IP40/IP54
‣ OVERALL DIAMETER: 116mm
‣ CUT-OUT: 104mm
‣ 220-240V 50-60Hz
‣ WARRANTY: 5 years
