KEY FEATURES AND SPECIFICATIONS

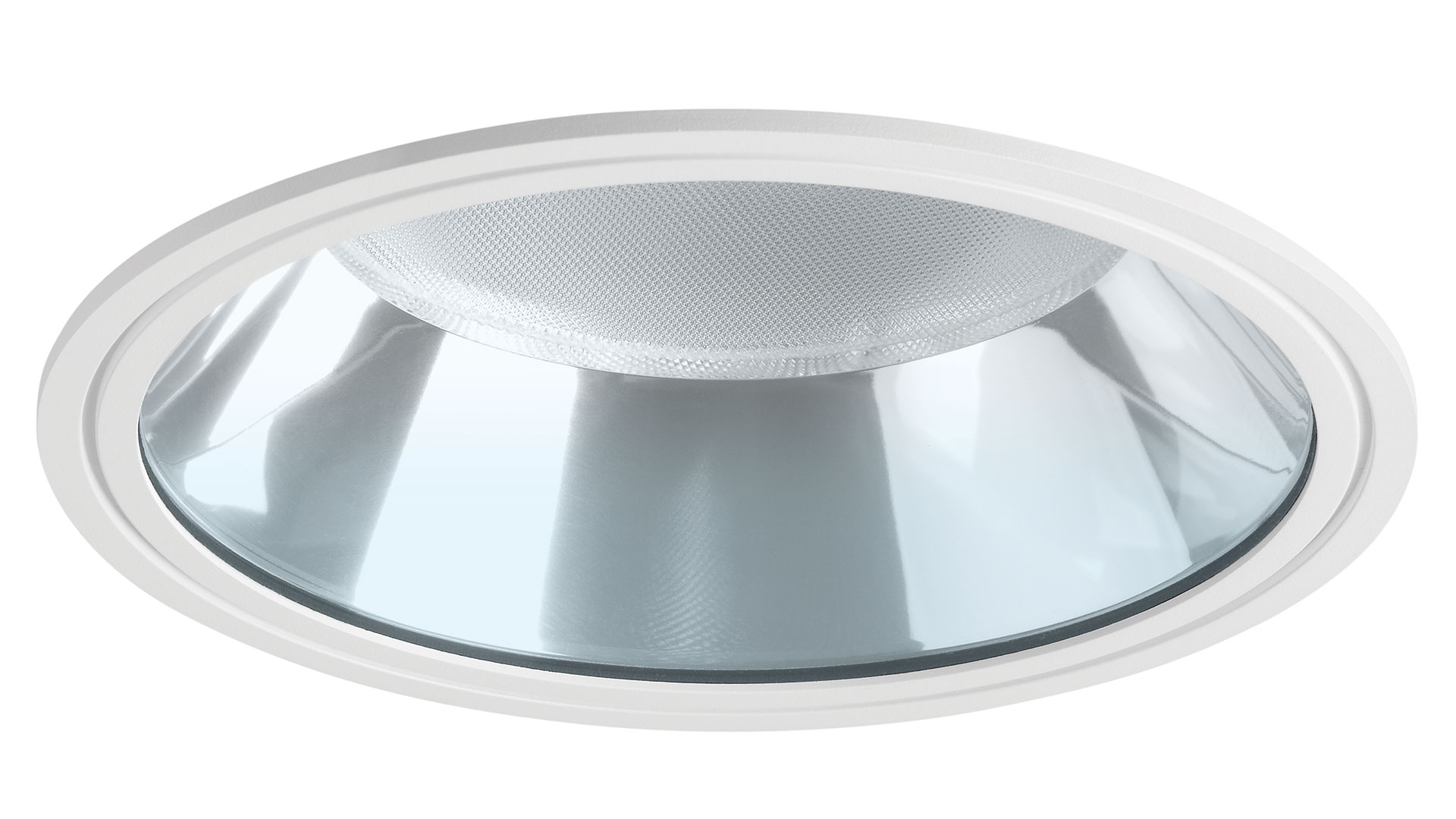

‣ MOUNTING: Ceiling recessed
‣ LIGHT SOURCE: LED

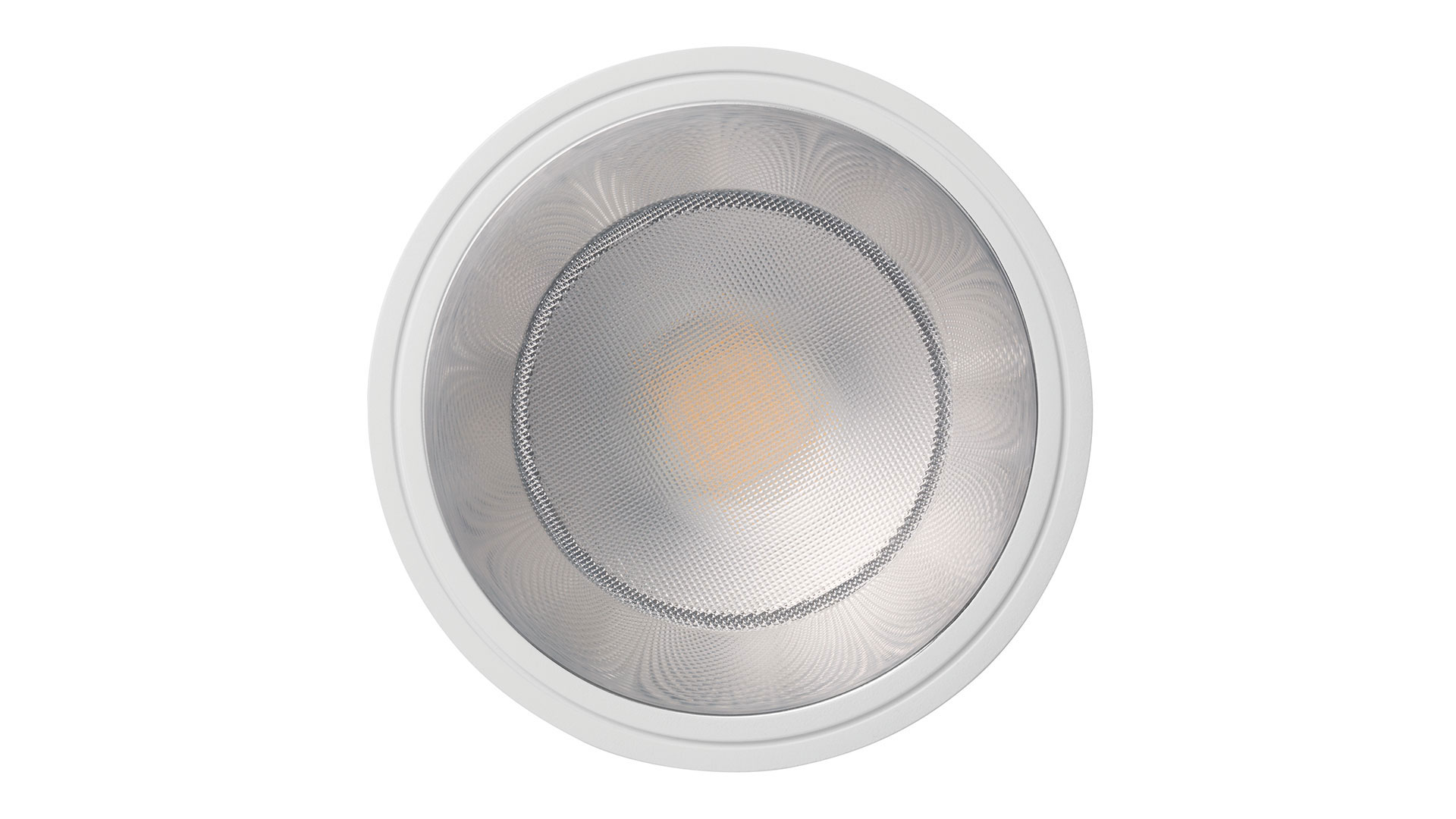

‣ OPTICAL SYSTEM:

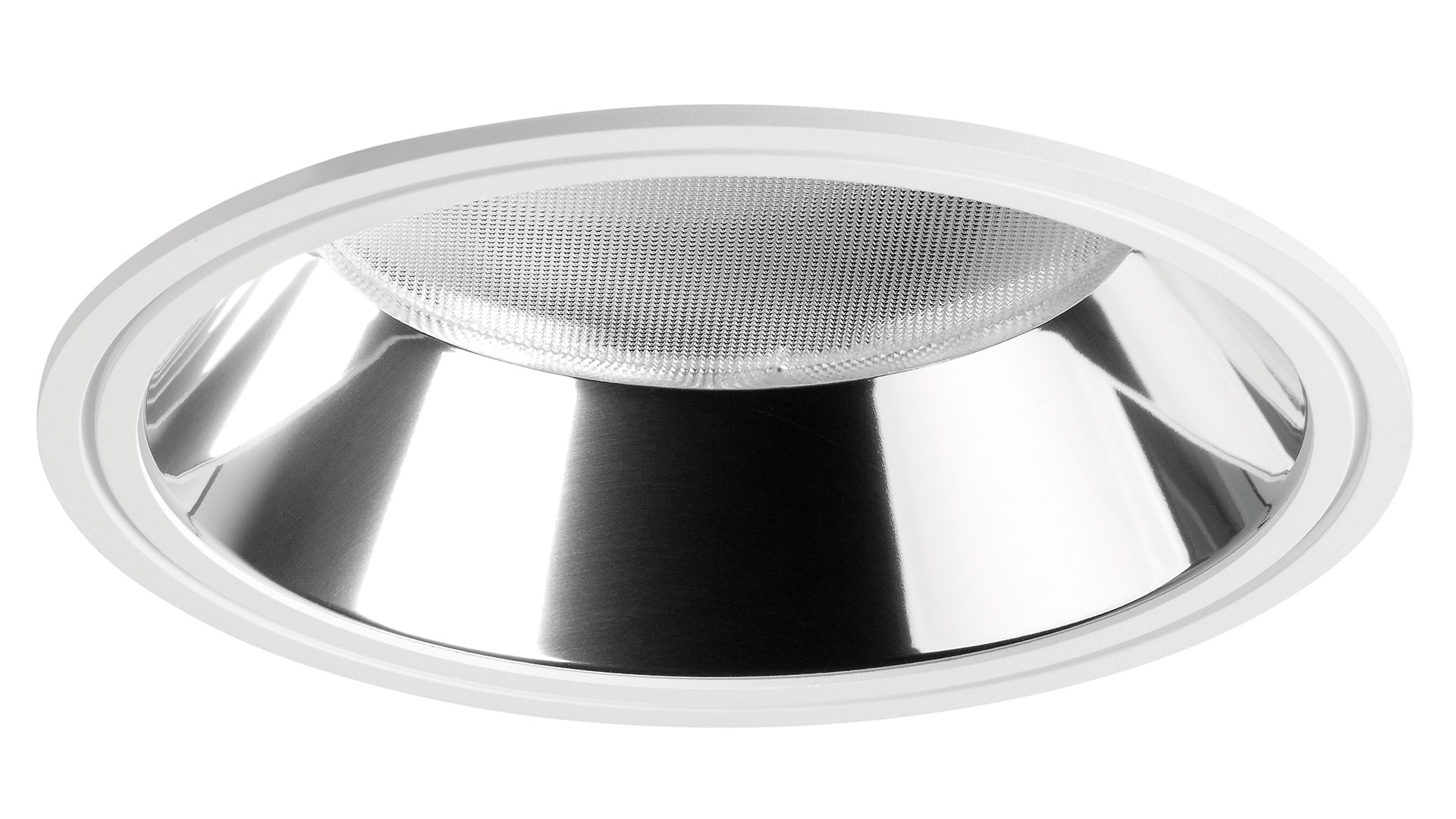

- Polished reflector (PRE)
- Polished reflector + transparent cover (PRT)

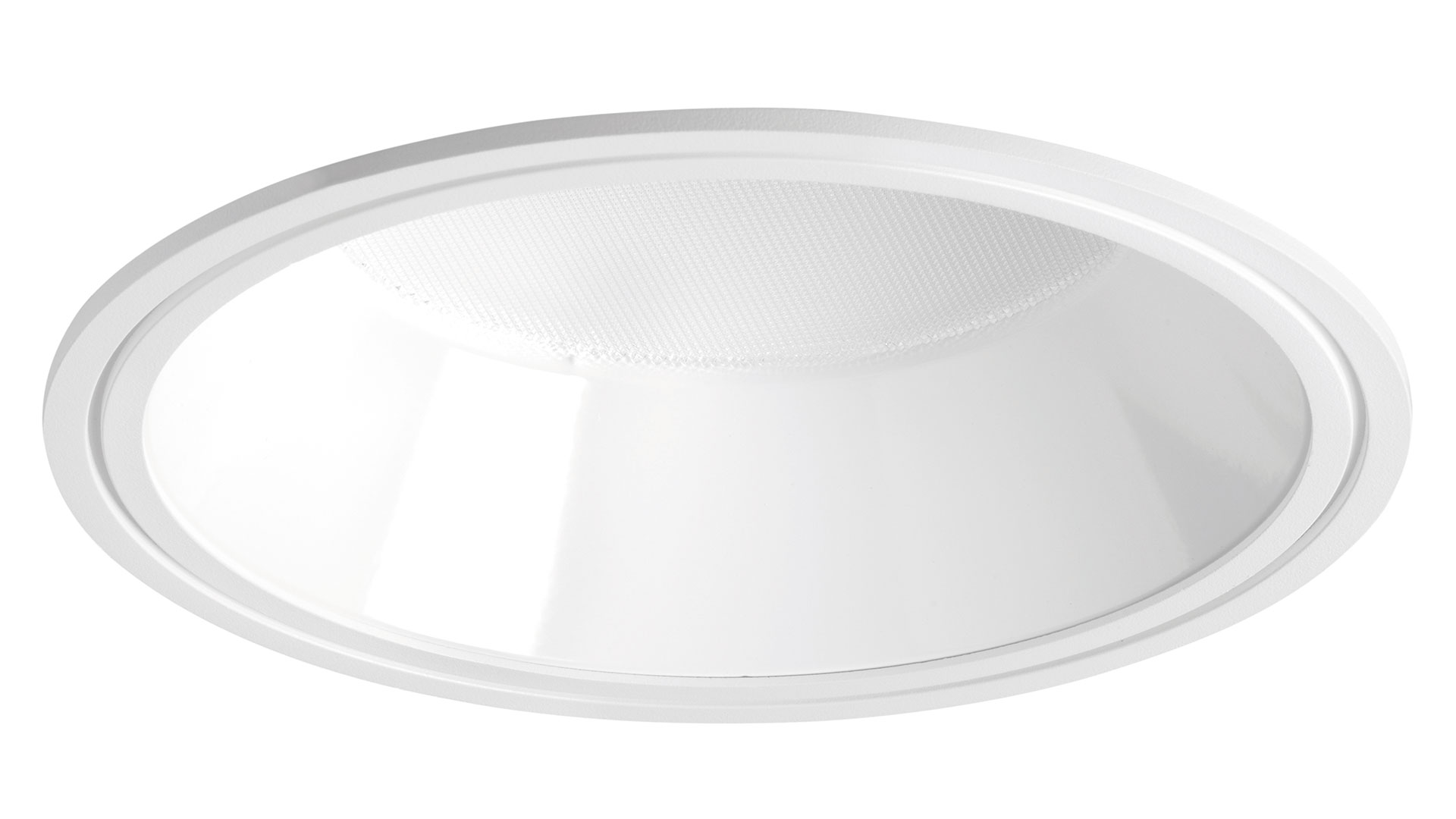

- Matt reflector (MRE)

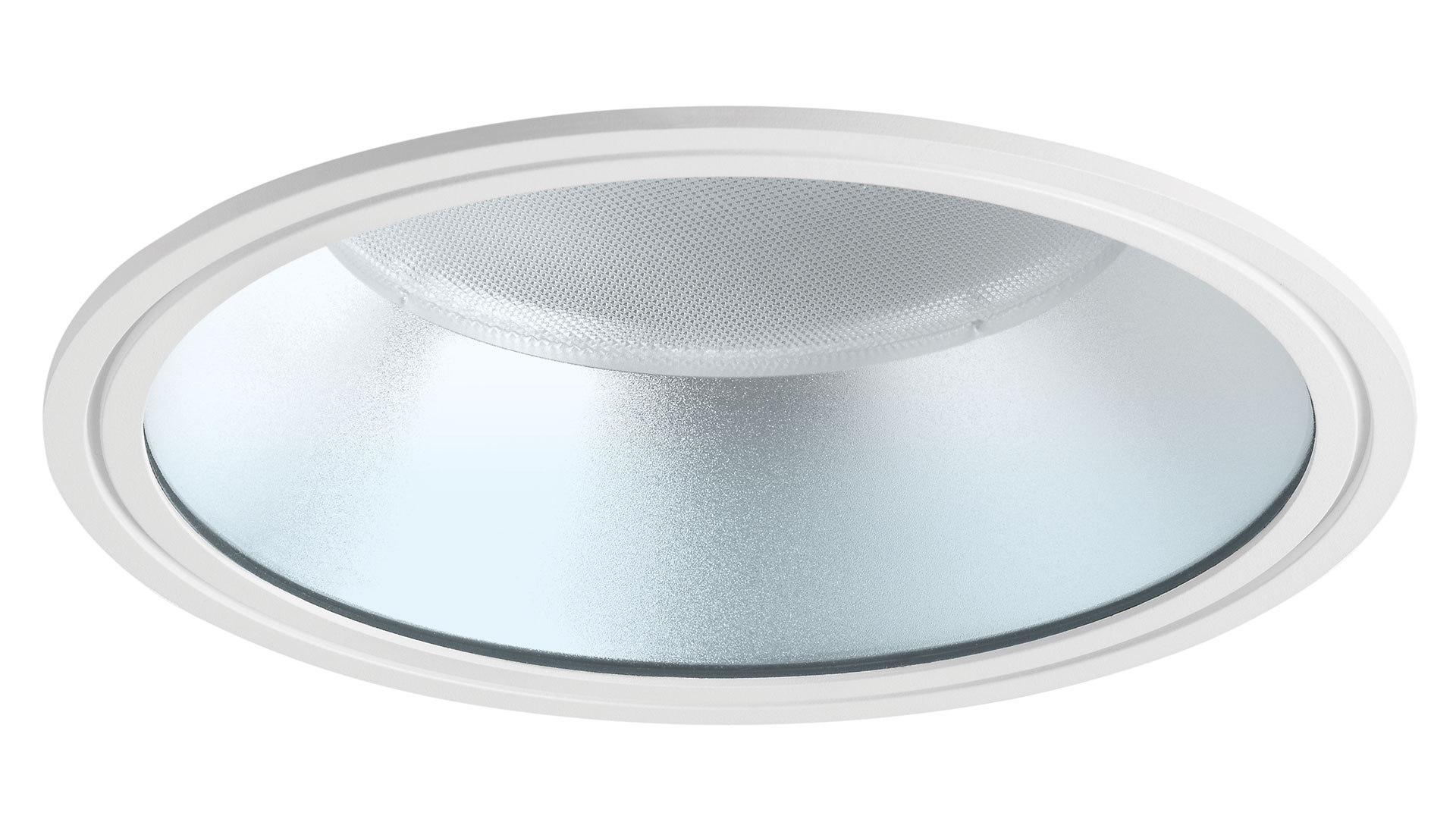

- Matt reflector + transparent cover (MRT)
‣ LIGHT DISTRIBUTION: Direct
‣ COLOUR TEMPERATURE: 3000K/4000K
‣ CRI: >80
‣ EFFICACY: ≤ 119 lm/W

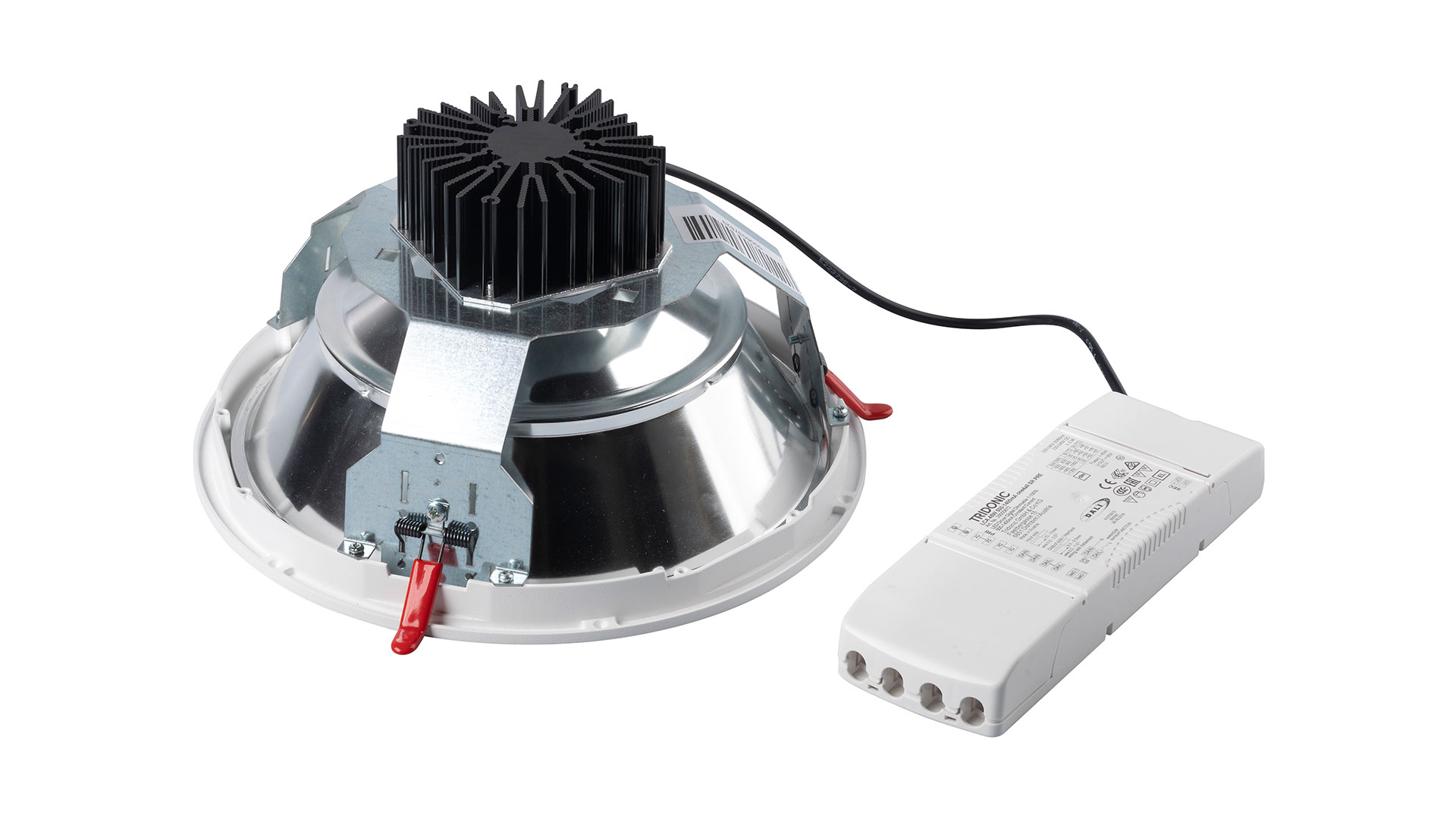

‣ WIRING:
- Electronic control gear FIX / DALI (ECG / EDA)

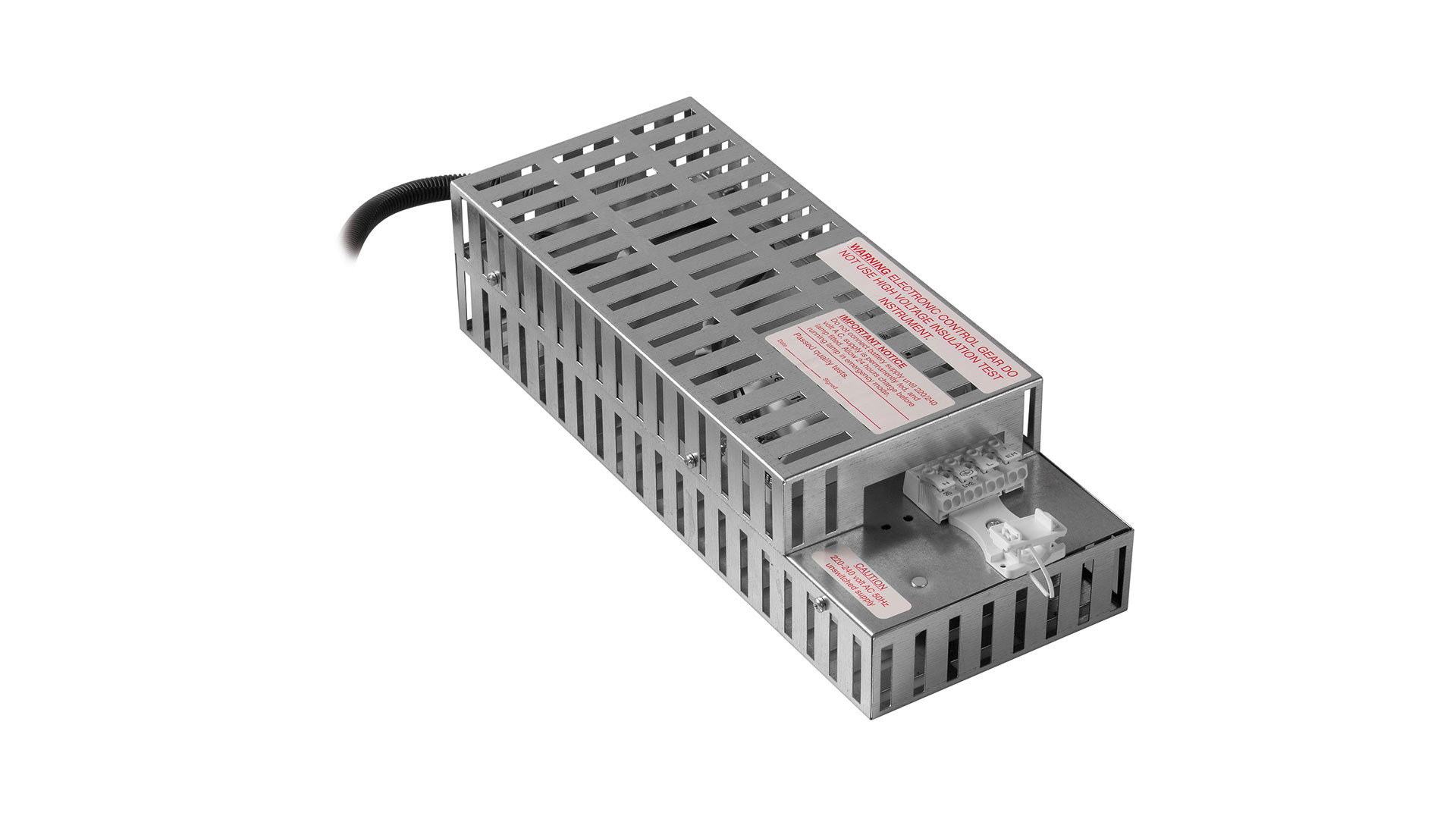

- Emergency unit variant (3H, ECG)
‣ MATERIALS:
- Housing: sheet steel
- Diffuser: microprismatic PMMA
- Trim: die-cast aluminium
- Reflector: anodised aluminium
- Cover: PMMA
‣ SURFACE FINISH:
- Trim: white RAL 9003 (W03)
‣ SERVICE LIFETIME:
- 100,000 hours/L90/B20 (ta 25°C) - EDA
- 50,000 hours/L90/B10 (ta 25°C) - ECG, EM
‣ AMBIENT OPERATING TEMPERATURE: From -20 °C to +35 °C (from 5 °C with EM unit)
‣ INGRESS PROTECTION: IP20/IP40/IP54
‣ OVERALL DIAMETER: 266mm
‣ CUT-OUT: 254mm
‣ 220-240V 50-60Hz
‣ WARRANTY: 5 years
