PAP-DRM

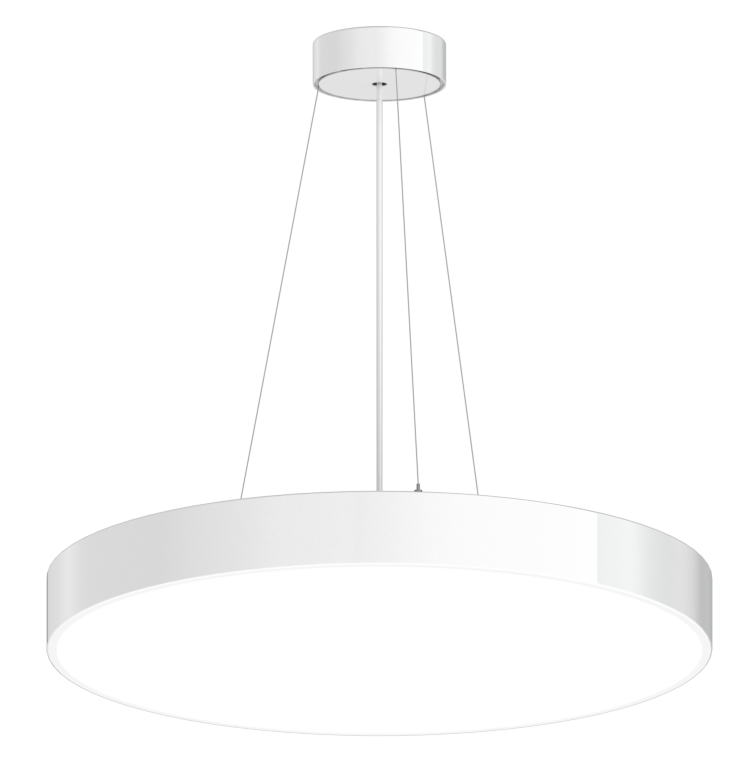

LED DRUM SURFACE/SUSPENDED LUMINAIRE
An architectural feature luminaire, supplied as either surface or wire suspended. Manufactured from spun aluminium, it is available in 500mm, 600mm, 700mm and 900mm diameters.
Supplied as standard with direct/indirect distribution, in a range of outputs to suit your needs.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting type: ceiling surface/suspended
‣ Power Options:
- Ø500mm - 35.8W 3203lm, 38.7W 3391lm
- Ø600mm - 47.4W 4021lm, 58.7W 4638lm
- Ø700mm - 47.4W 3820lm, 58.7W 4406lm
- Ø900mm - 59.3W 8233lm, 91.7W 12449lm
‣ Efficacy: up to 140 lm/W
‣ Colour Temperature: 3000K, 4000K
‣ CRI: ≥80Ra
‣ Optics: opal diffuser
‣ Colour Finishes: White (9016), Black (9005) or Silver (9006). ‣ Other RAL colours, available on request.
‣ MacAdam: SDCM 3
‣ IP Rating: IP20
‣ Service Lifetime: L70/B10 >50,000 hours
‣ Options:
- Control - DALI 1-100%, DSI, 1 -10V, Casambi
- Emergency - 3 hour, DALI, Self-Test, DALI Wireless Sentinel
‣ Suspended luminaire supplied complete with individual wire suspensions, which are adjustable up to 3m length as standard (central single point fixing via ceiling rose available as additional item)
‣ Custom length wire suspension, Clear, Black or White flex are also available
Please download the data sheet for further information
APPLICATION

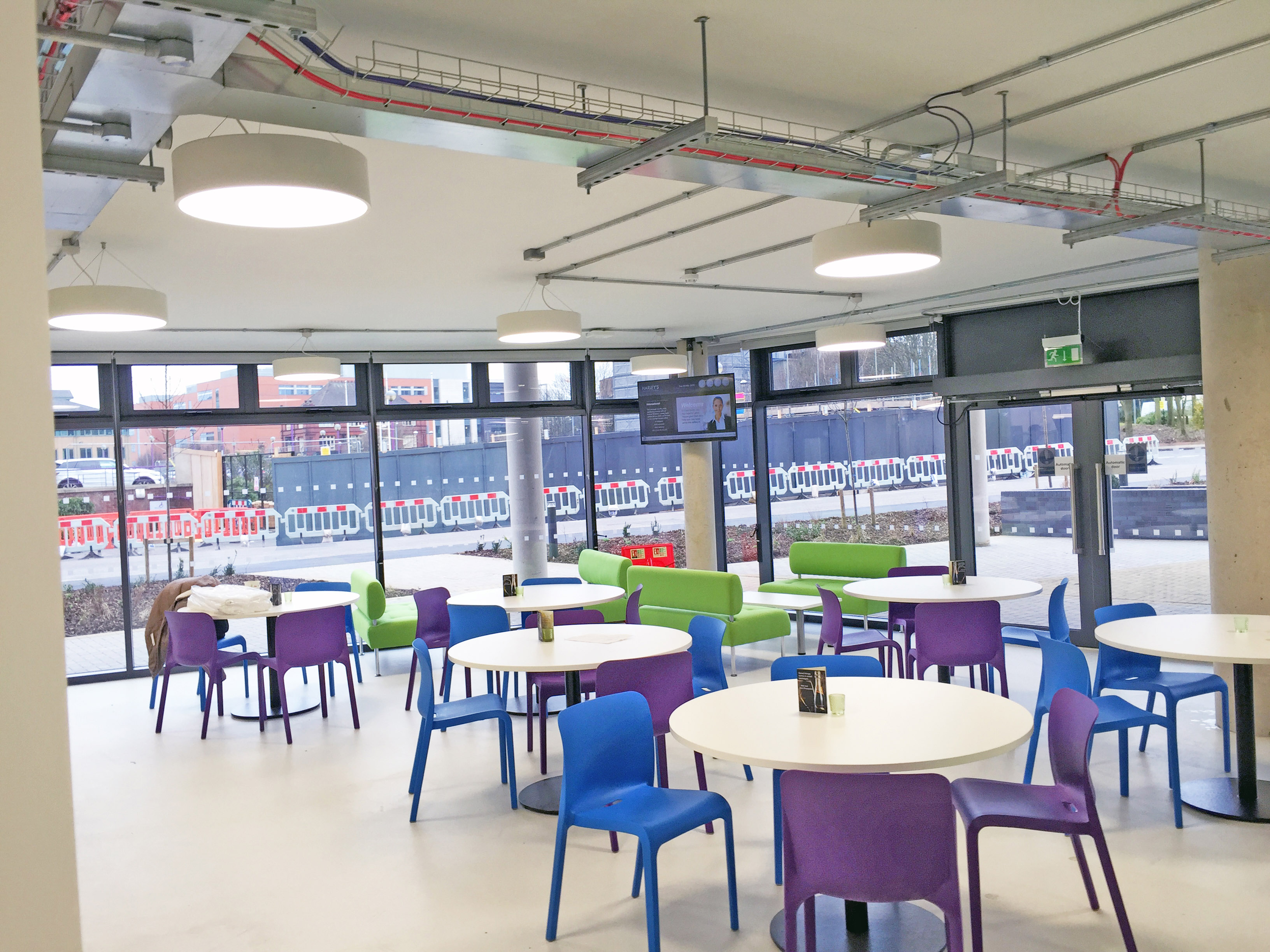

Suitable for a range of architectural and commercial applications.
