MP66 LED PANEL

600x600 RECESSED LUMINAIRE

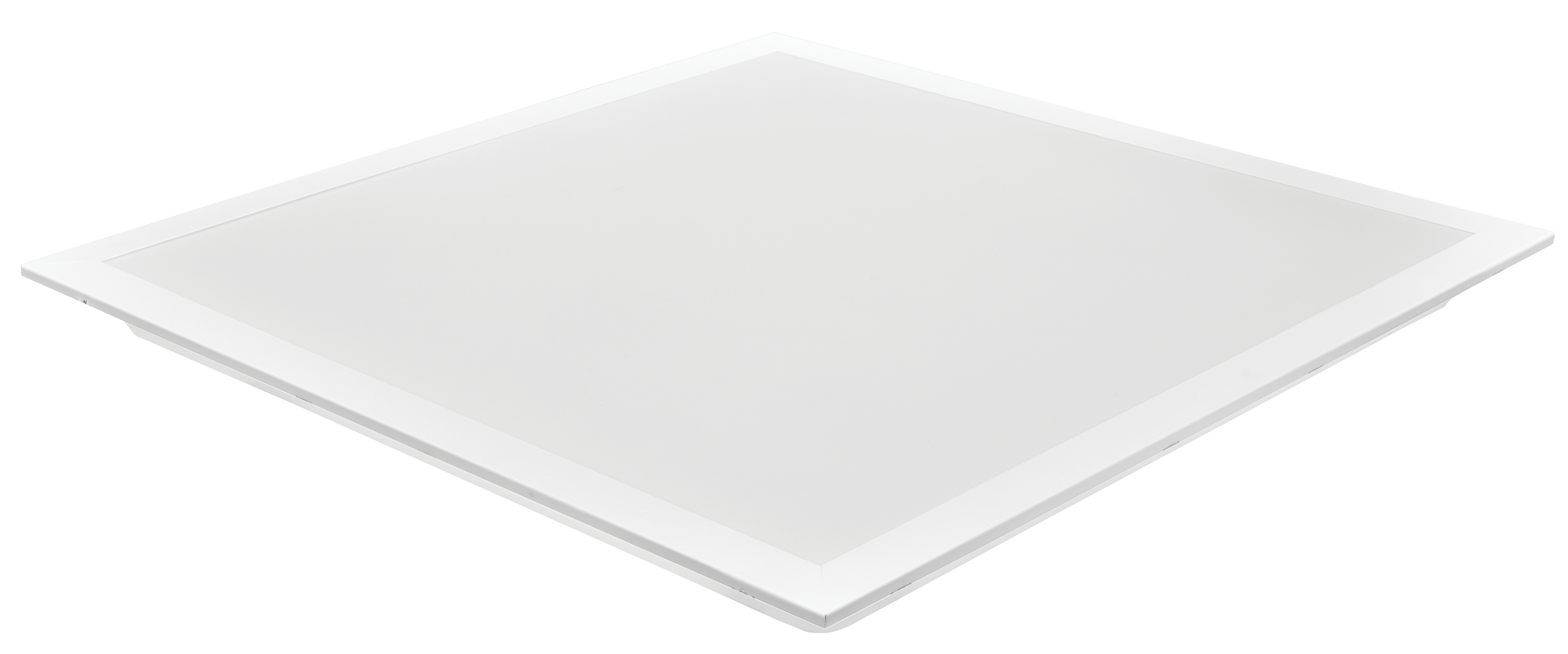

A 600 x 600 backlit LED panel with a micro-prismatic diffuser suitable for recessed ceiling installation. Supplied with a remote driver and quick connect push-fit terminals.

This LED panel has an efficacy of up to 113lm/W, and is UGR 19.

KEY FEATURES AND SPECIFICATIONS

‣ Mounting: Recessed in ceiling grid
‣ Construction:
- Body: Aluminium

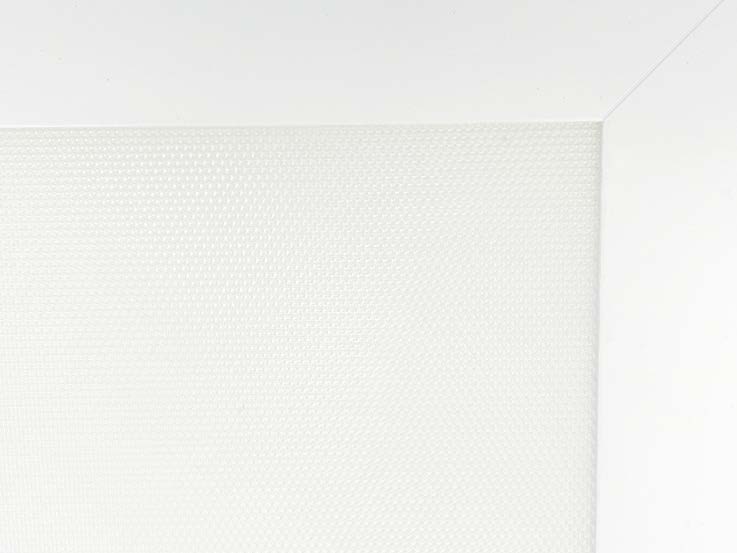

- Diffuser: TPa micro-prismatic
- Finish: White

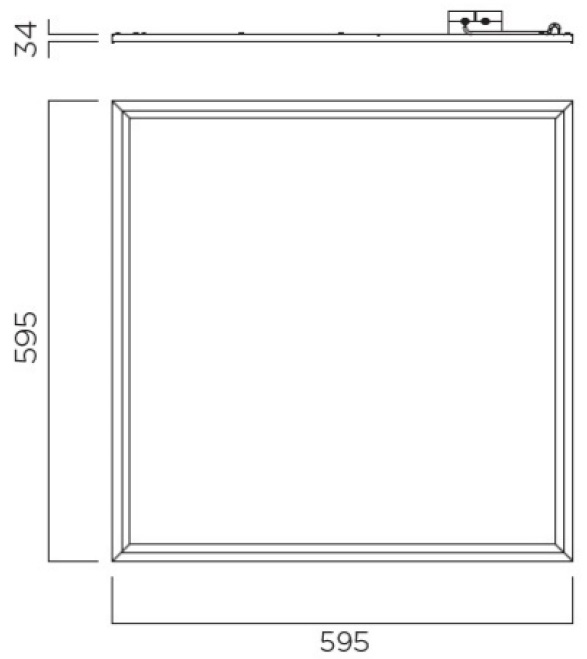

‣ Dimensions [LWH] mm: 595x595x34
‣ Light Source: LED
‣ Circuit Watts: 30W
‣ Colour Temperature: 4000K
‣ Lumen Output: 3400lm
‣ Efficacy: 113lm/W
‣ UGR: 19
‣ CRI: 80
‣ Driver: Remote
‣ Voltage: 220-240V Hz
‣ Ingress Protection: IP20
‣ Warranty: 5 years/30,000 hours
‣ Options:
- DALI or Switch Dim
- 3 hour maintained emergency

Please download the data sheet for further information

APPLICATION

Suitable for commercial applications.

PRODUCT CLASSIFICATION

RESOURCES

download data sheet request a quotation get adobe reader

LDT FILES

You can request LDT files using the link below

request ldt files
