KEY FEATURES AND SPECIFICATIONS

‣ Mounting: in handrails and handles
‣ Body: high pressure die-cast aluminum
‣ Colour: silver
‣ Diffuser: lens
‣ Power supply efficiency: >85%
‣ Power: 2.4W, 24V DC
‣ Light source: LED
‣ Efficacy: 77lm/W
‣ CRI: ≥80
‣ Colour temperature: 3000K, 4000K
‣ Type of equipment: ED
‣ Electrical connection: 2x wire 1x1,5mm²
‣ Light distribution: asymmetric
‣ Way of lighting: direct
‣ Type of optic: lens
‣ ULOR / DLOR: 0/100
‣ Lifetime (L80B10): 100,000 hours
‣ Dimensions [mm] W x H: 36 x 35
‣ Operating temperature range: -30˚C ... +50˚C
‣ Protection: IP65, IK03
‣ Warranty: 5 years

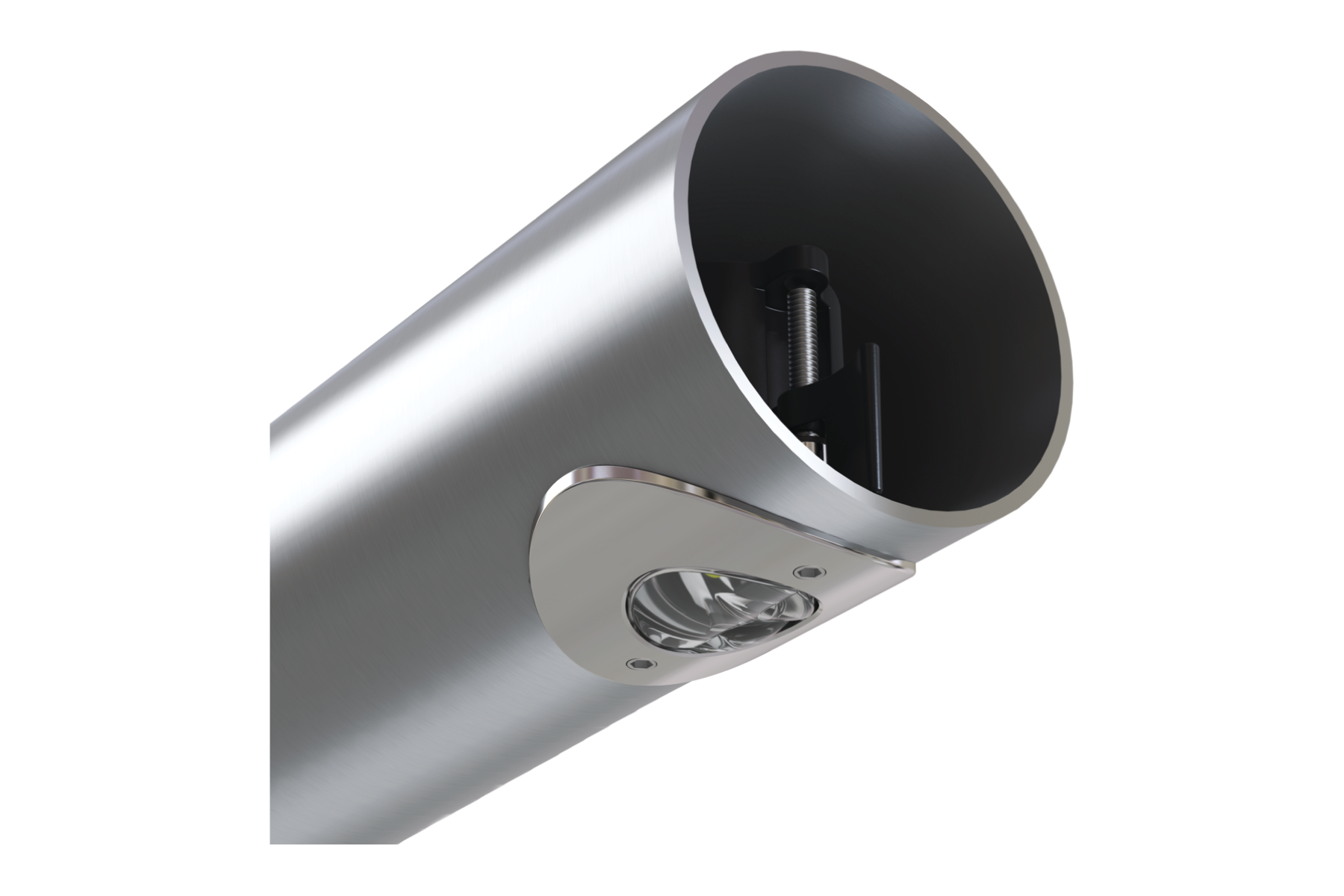

Additional information: the luminaire is adapted for mounting in handrails with a minimum thickness of 2mm and a diameter of ø42,4mm and ø48,3mm
