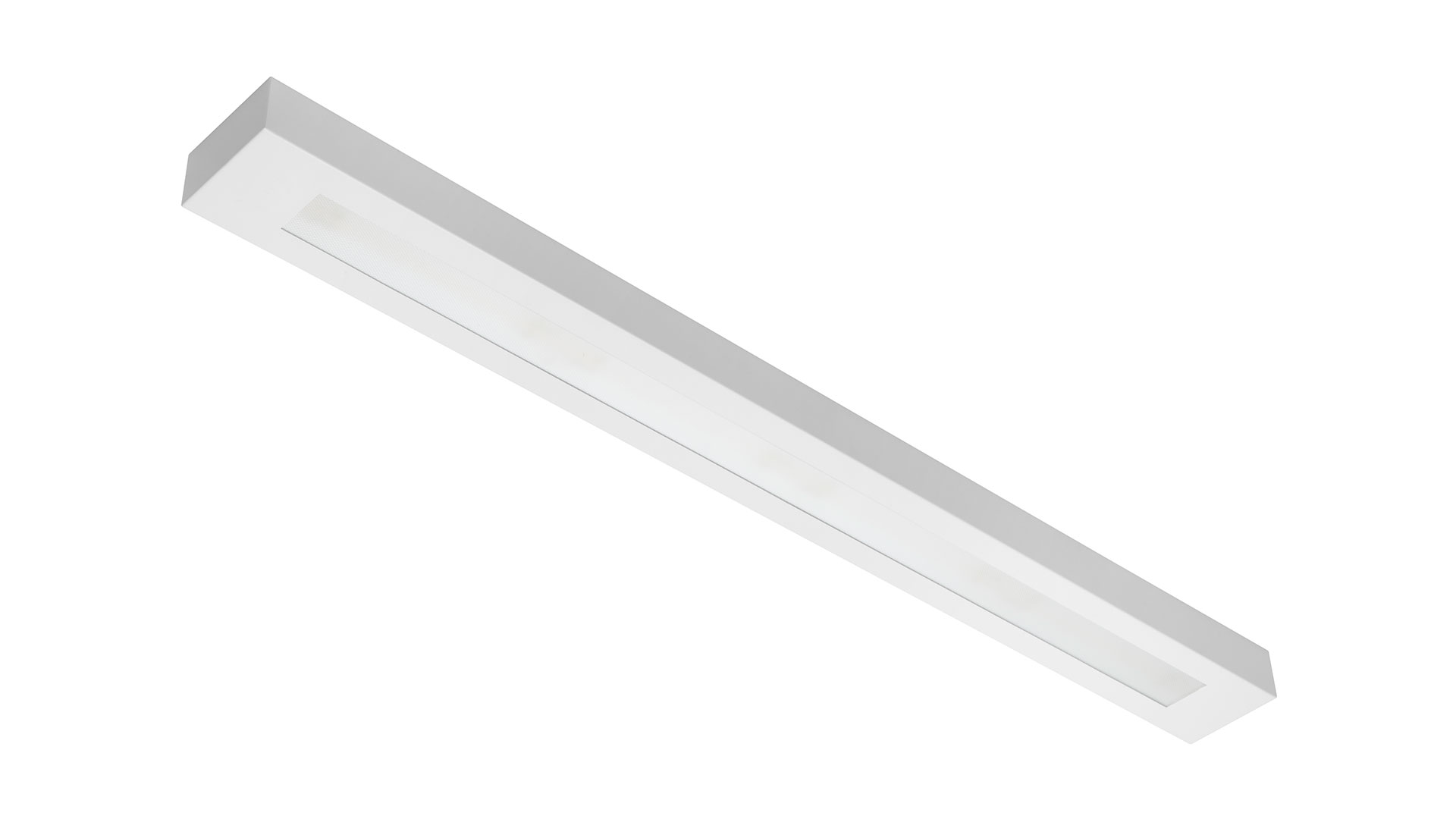

LAMBDA LED DIF SURFACED
LED SURFACE MOUNT LUMINAIRE
An LED surface mounting luminaire with an efficacy of up to 141 lumens/W.
It has a low profile of only 67mm and a service lifetime of up to 100,000 hours. It is manufactured from sheet steel with a micoprismatic diffuser.
In addition to standard control gear, this fitting can be supplied as DALI or Emergency and is supported by a 5 years warranty.
KEY FEATURES AND SPECIFICATIONS
‣ MOUNTING: Ceiling surfaced (SFD)
‣ LIGHT SOURCE: LED
‣ OPTICAL SYSTEM: Microprismatic diffuser (MCD)
‣ EFFICACY: ≤141 lm/W
‣ COLOUR TEMPERATURE: 3000K / 4000K
‣ CRI (Ra): ≥80
‣ WIRING:
- Electronic control gear FIX/DALI (ECG/EDA)
- Emergency unit variant (3H, ECG)
‣ MATERIALS:
- Diffuser: PMMA
- Housing: sheet steel
‣ SURFACE FINISH:
- Housing: white RAL 9003 (W03)
‣ SERVICE LIFETIME:
- 100,000 hours/L90/B20 (ta 25°C)
- 50,000 hours/L90/B10 (ta 25°C) - EM
‣ AMBIENT OPERATING TEMPERATURE: From -20 °C to +35 °C (from +5°C to +30°C with EM unit)
‣ VOLTAGE: 220-240V 50-60Hz
‣ INGRESS PROTECTION: IP20
‣ WARRANTY: 5 years
Please download the data sheet for further information

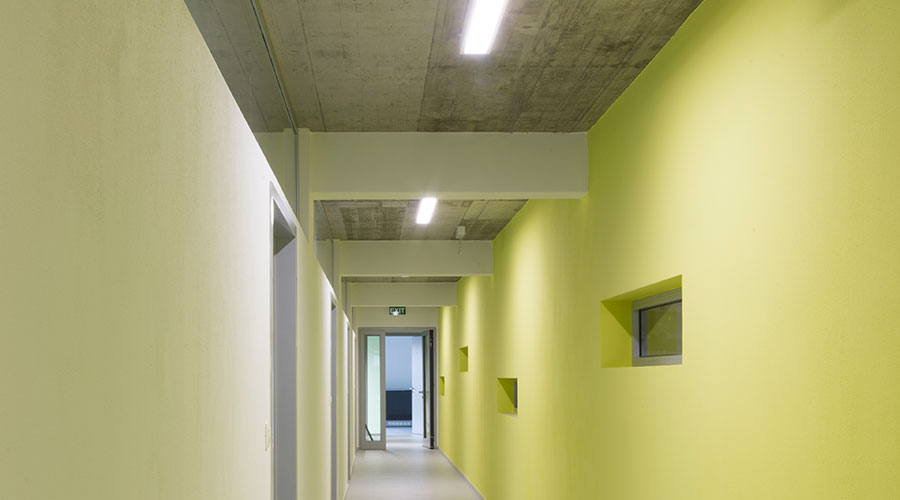

APPLICATION
Suitable for a range of commercial applications such as offices, schools and healthcare.
