INTO S160 LED
RECESSED SQUARE LED DOWNLIGHT

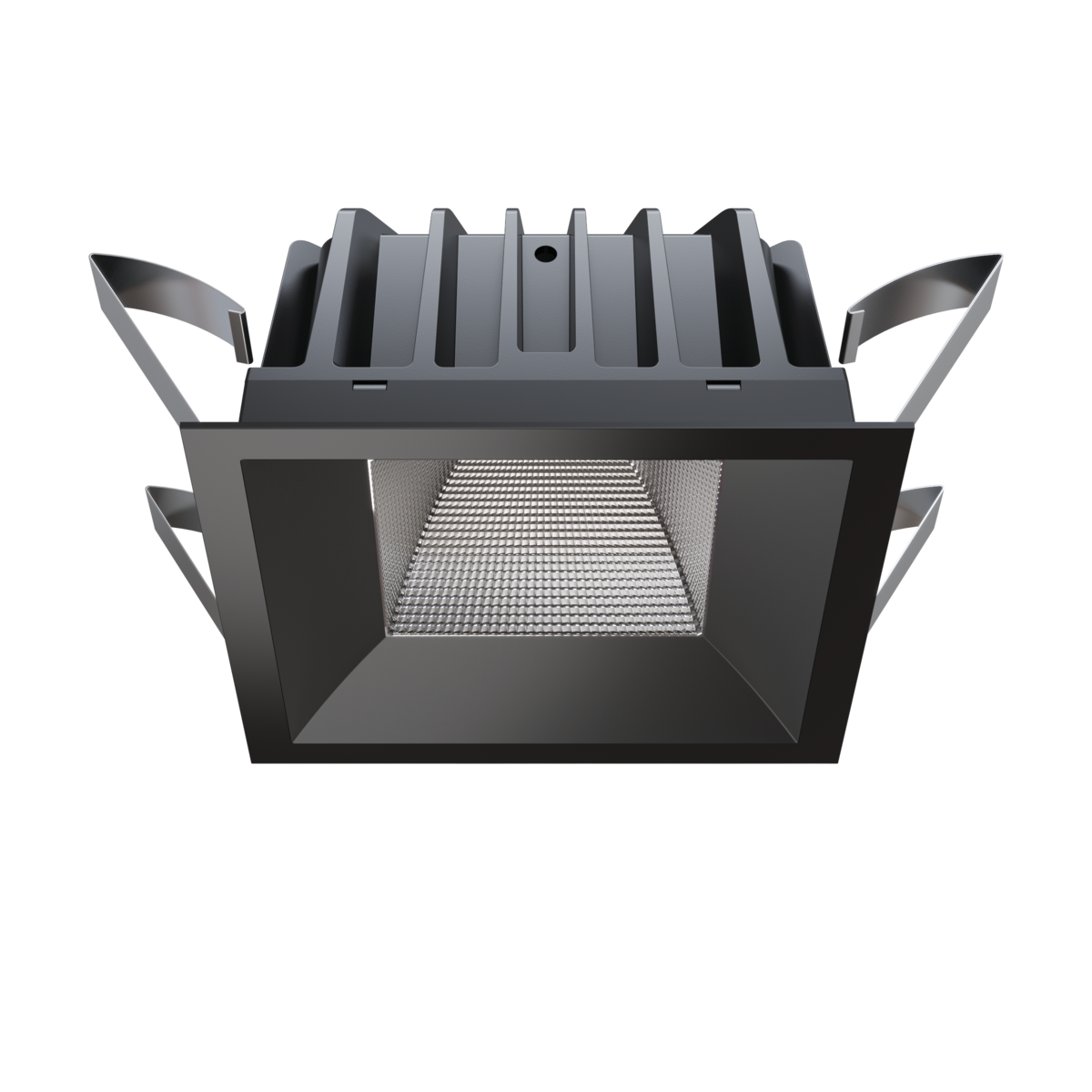

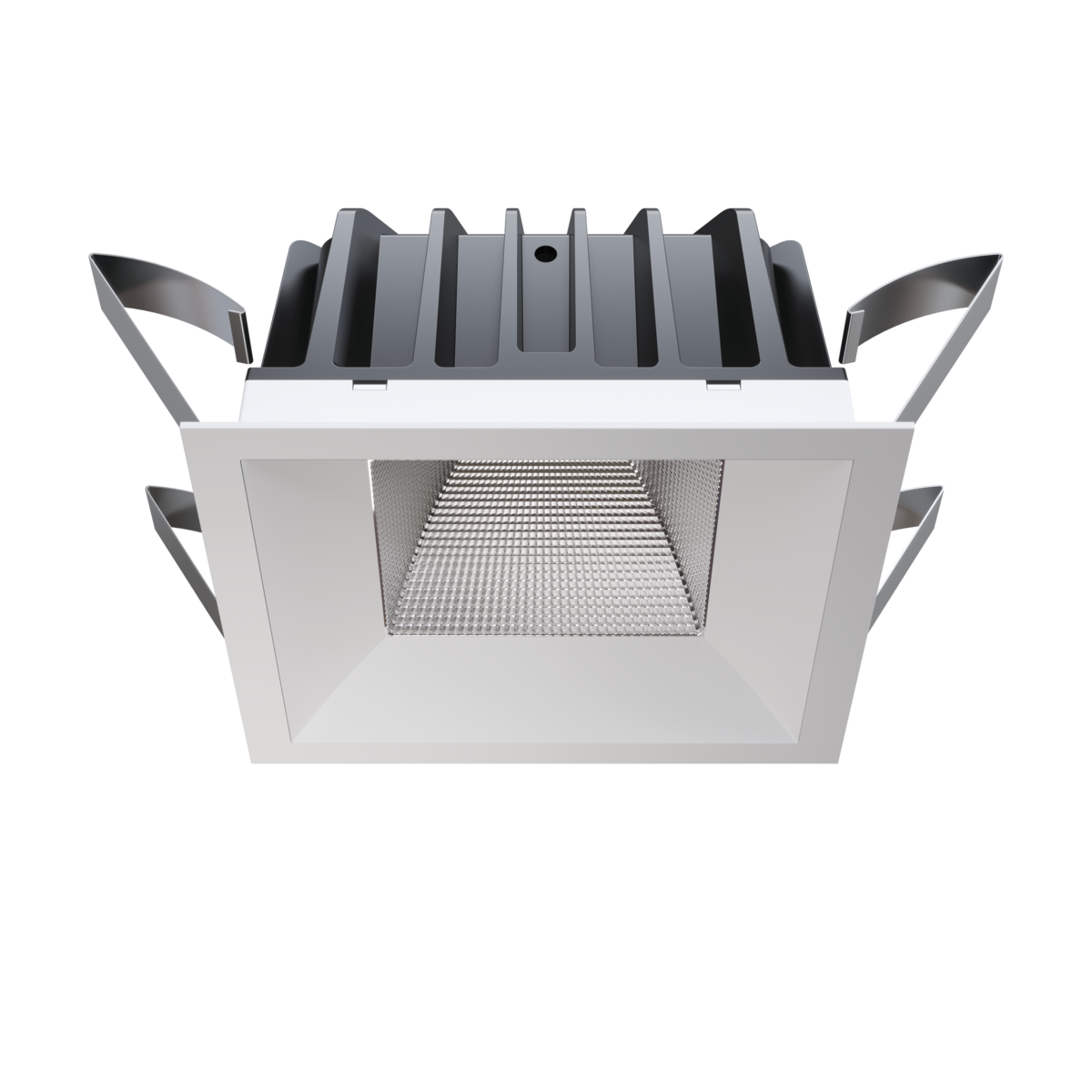

A recessed, 160mm x 160mm square LED downlight manufactured from aluminium and available in a white or black housing.
These downlights have an efficacy of up to 120 lumens/W, a service lifetime of 60,000 hours, L80, and carry a 5 years warranty.
They have a ceiling cut-out of 150mm² and are secured into the ceiling with the brackets provided.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: in the ceiling, with mounting brackets (included)
‣ Body: aluminium (white, black)
‣ Bezel colour: white, black
‣ Power: 23W, 30W
‣ Power supply: 220-240V 50/60Hz
‣ Power supply efficiency: 92%
‣ 3 step Macadam Ellipse LED
‣ Type of equipment: ED (DALI on request)
‣ Electrical connection: max 2x1,5 mm² wire
‣ Light distribution: rotationally-symmetric
‣ Way of lighting: direct
‣ Reflector: polished faceted
‣ ULOR / DLOR: 0/100
‣ CRI/Ra: ≥80
‣ Efficacy: ≤120 lm/W
‣ Colour temperature: 3000K, 4000K
‣ Beam angle: 50˚
‣ Lifetime (L80 B10): 60,000 hours
‣ Dimensions mm (L W H): 160 x 160 x 80
‣ Cut-out: 150mm x 150mm
‣ IP20
‣ Weight: 0.9 kg
‣ Warranty: 5 years
Please download the data sheet for further information
APPLICATION
Suitable for a range of commercial and retail applications.
