INTO S100 LED
RECESSED SQUARE LED DOWNLIGHT

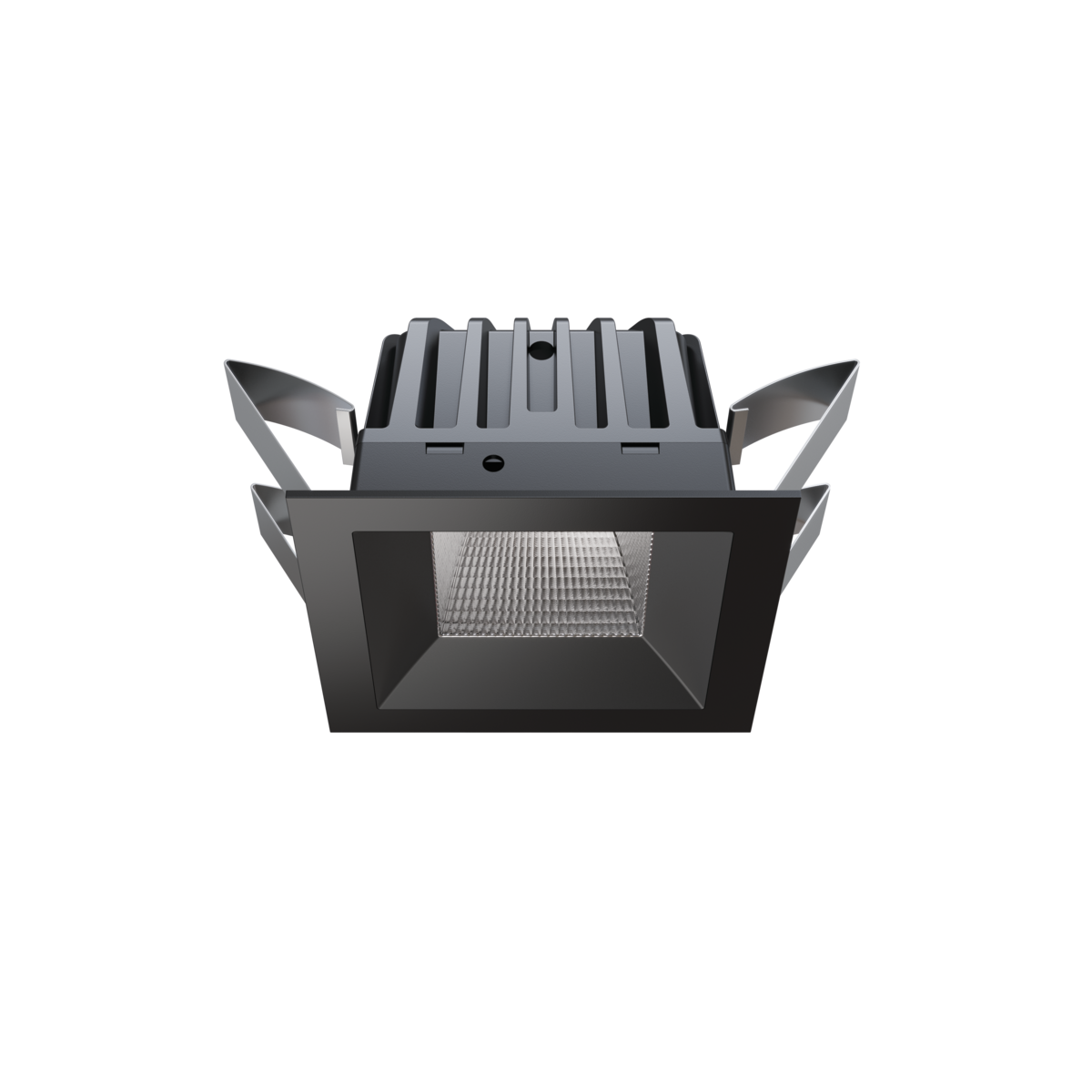

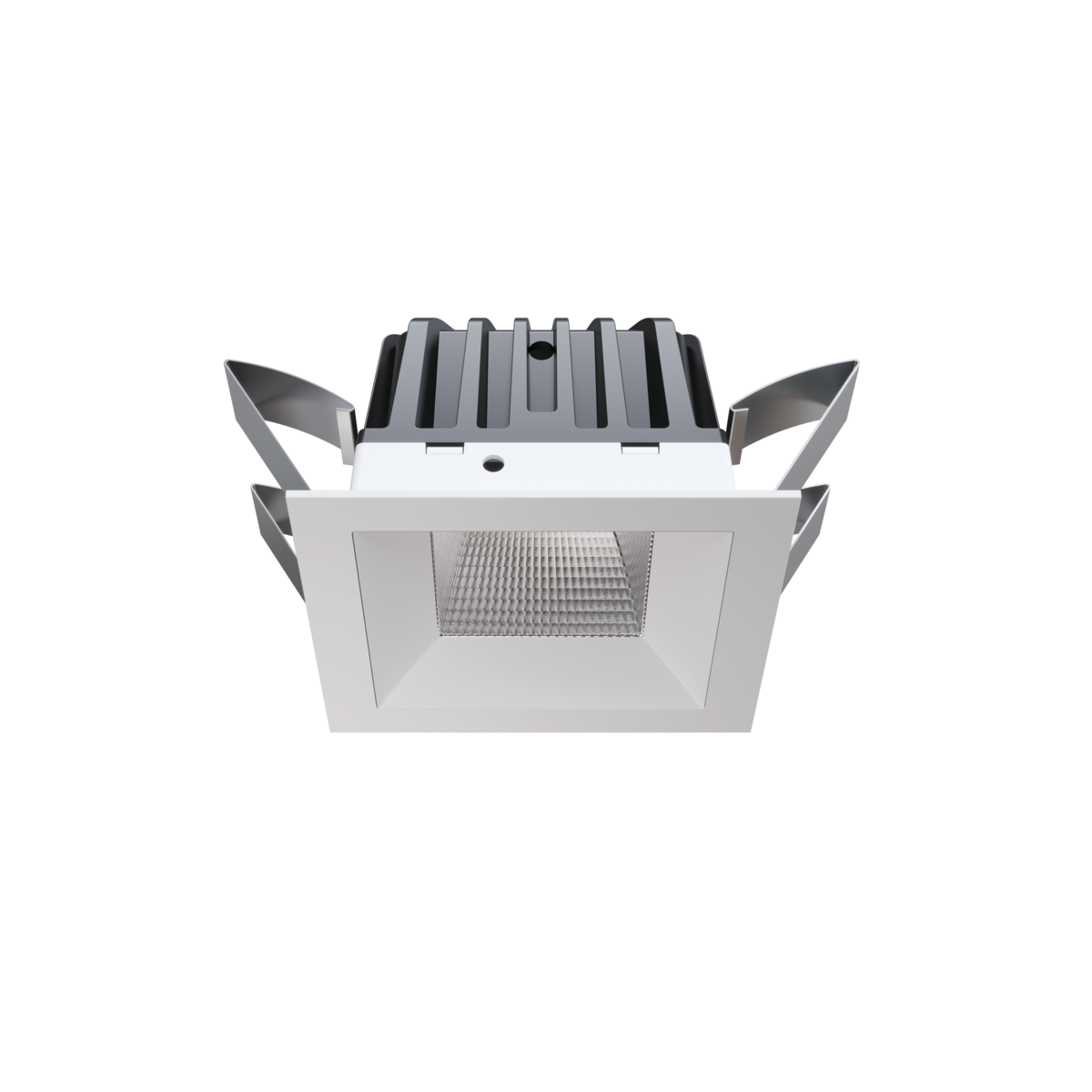

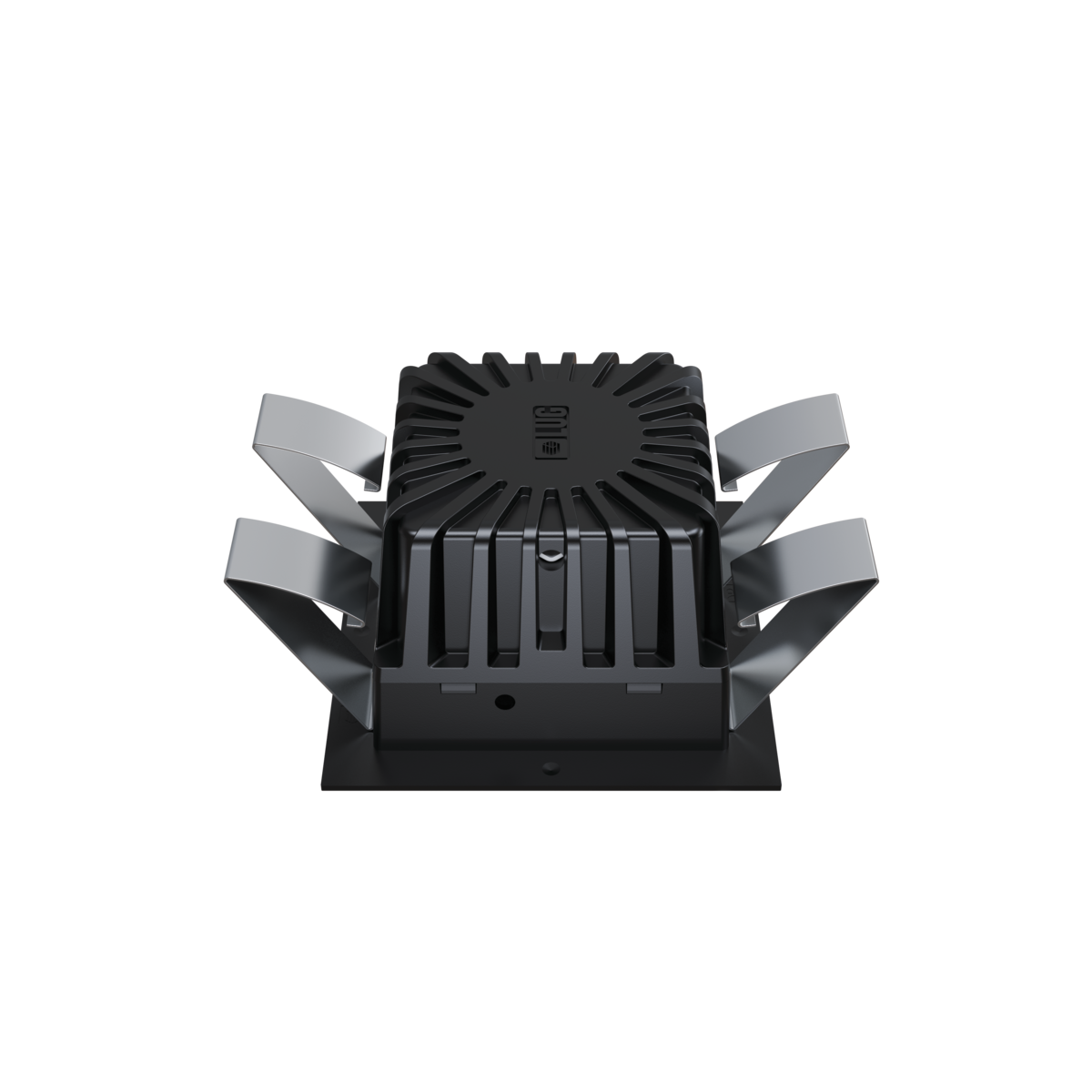

A recessed, 100mm x 100mm square LED downlight manufactured from aluminium and available in a white or black housing.
These downlights have an efficacy of up to 107 lumens/W, a service lifetime of 60,000 hours, L80, and carry a 5 years warranty.
They have a ceiling cut-out of 90mm² and are secured into the ceiling with the brackets provided.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: in the ceiling, with mounting brackets (included)
‣ Body: aluminium (white, black)
‣ Bezel colour: white, black
‣ Power: 14W, 20W
‣ Power supply: 220-240V 50/60Hz
‣ Power supply efficiency: 92%
‣ 3 step Macadam Ellipse LED
‣ Type of equipment: ED (DALI on request)
‣ Electrical connection: max 2x1,5 mm² wire
‣ Light distribution: rotationally-symmetric
‣ Way of lighting: direct
‣ Reflector: polished faceted
‣ ULOR / DLOR: 0/100
‣ CRI/Ra: ≥80
‣ Efficacy: ≤107 lm/W
‣ Colour temperature: 3000K, 4000K
‣ Beam angle: 50˚
‣ Lifetime (L80 B10): 60,000 hours
‣ Dimensions mm (L W H): 100 x 100 x 60
‣ Cut-out: 90mm x 90mm
‣ IP20
‣ Weight: 0.4 kg
‣ Warranty: 5 years
Please download the data sheet for further information
APPLICATION
Suitable for a range of commercial and retail applications.
