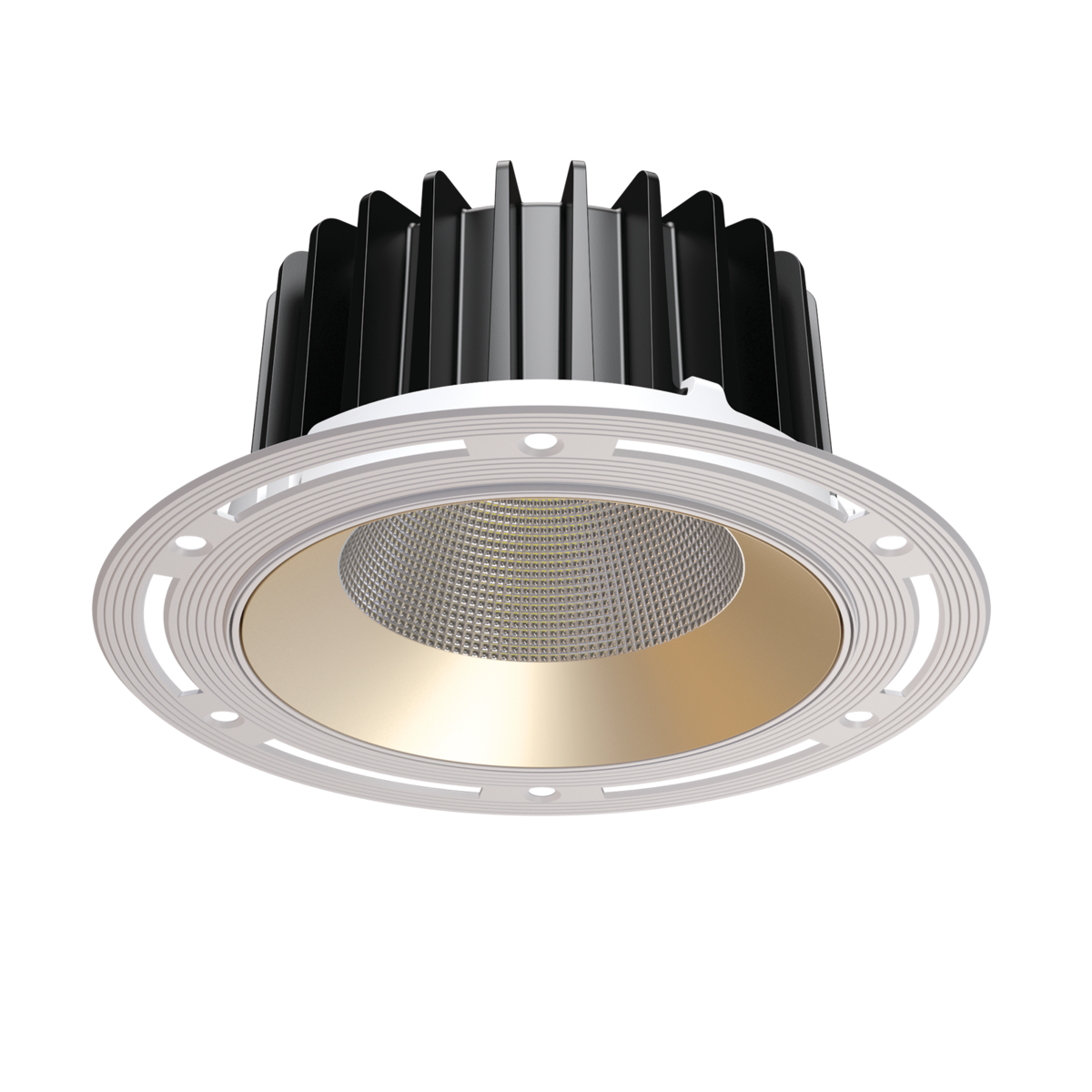

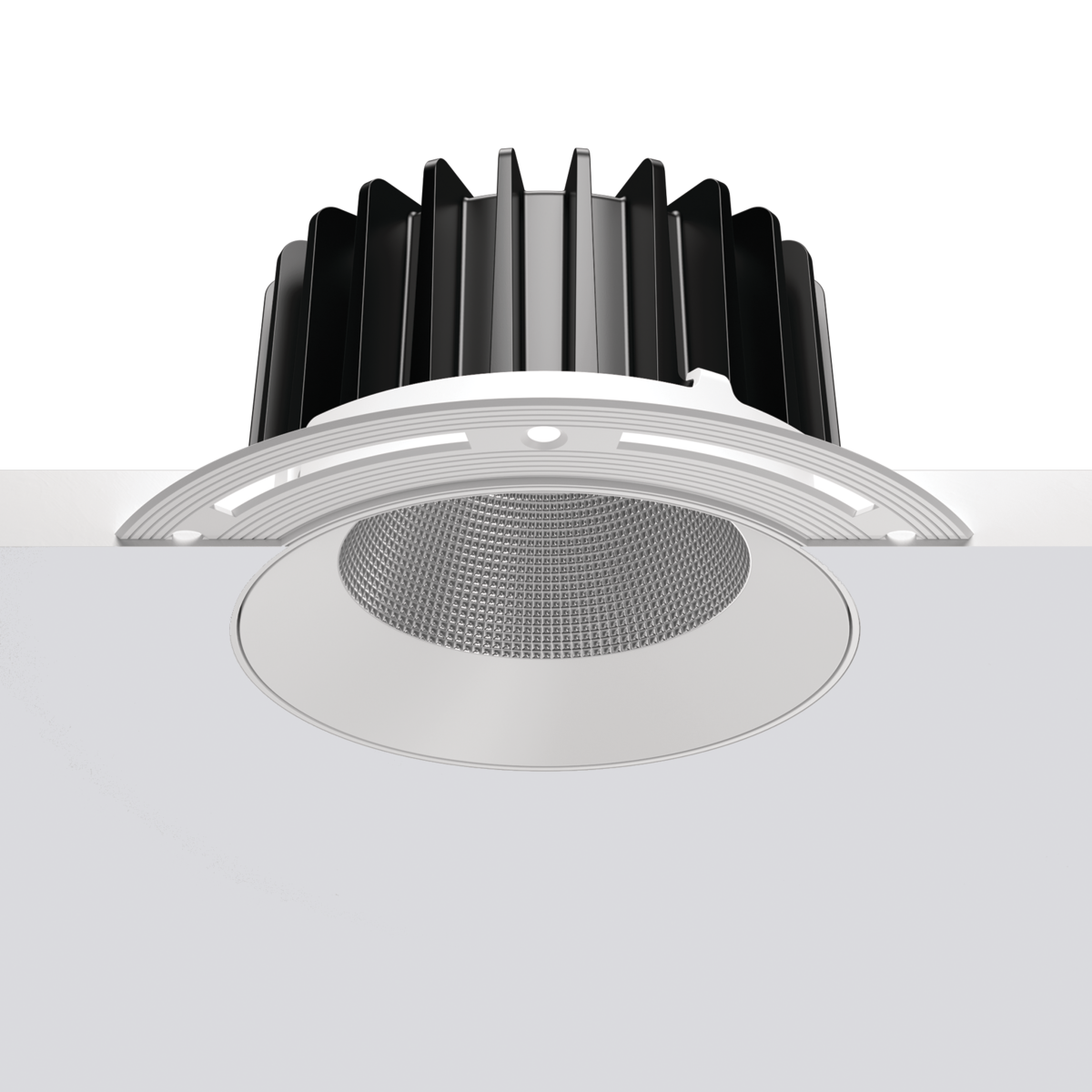

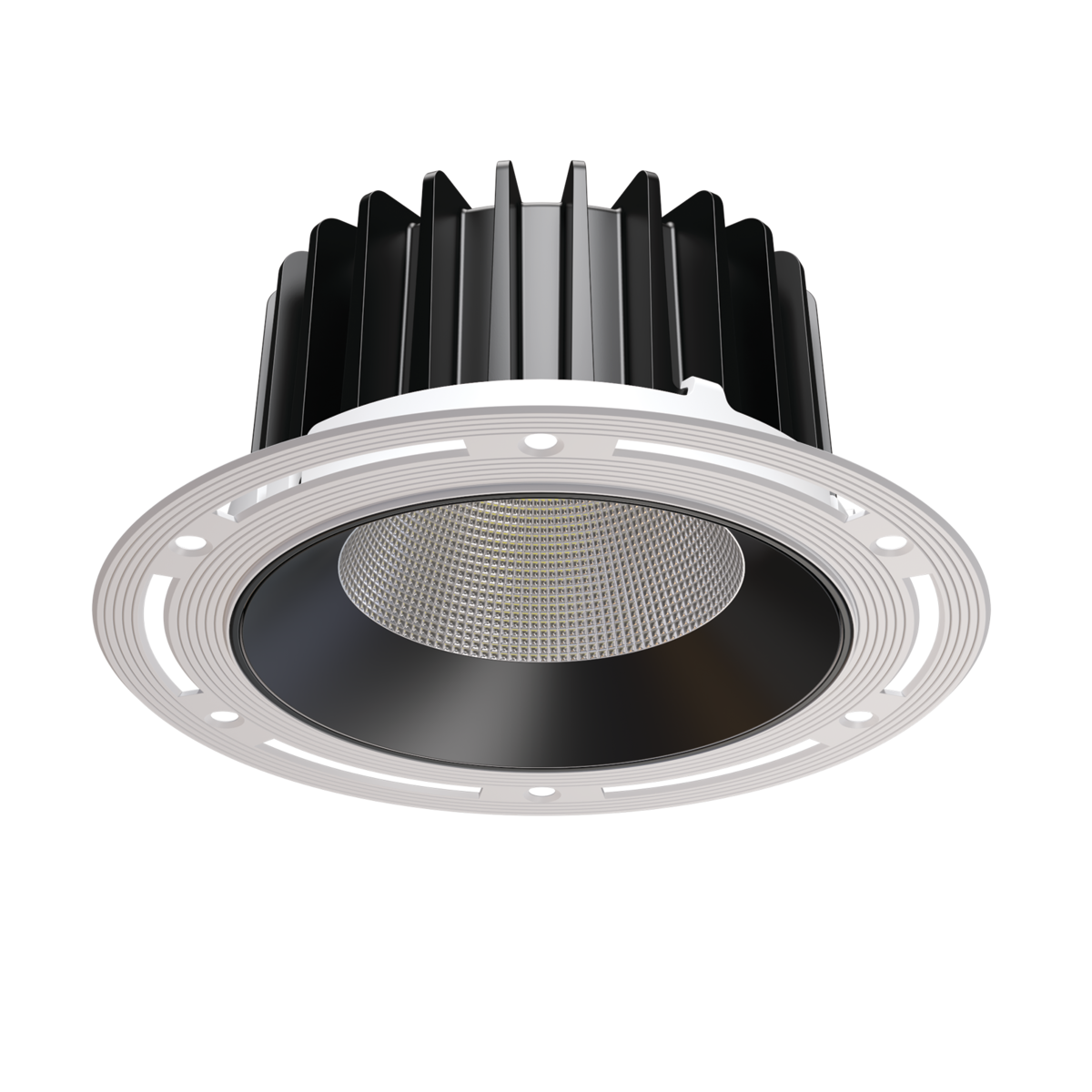

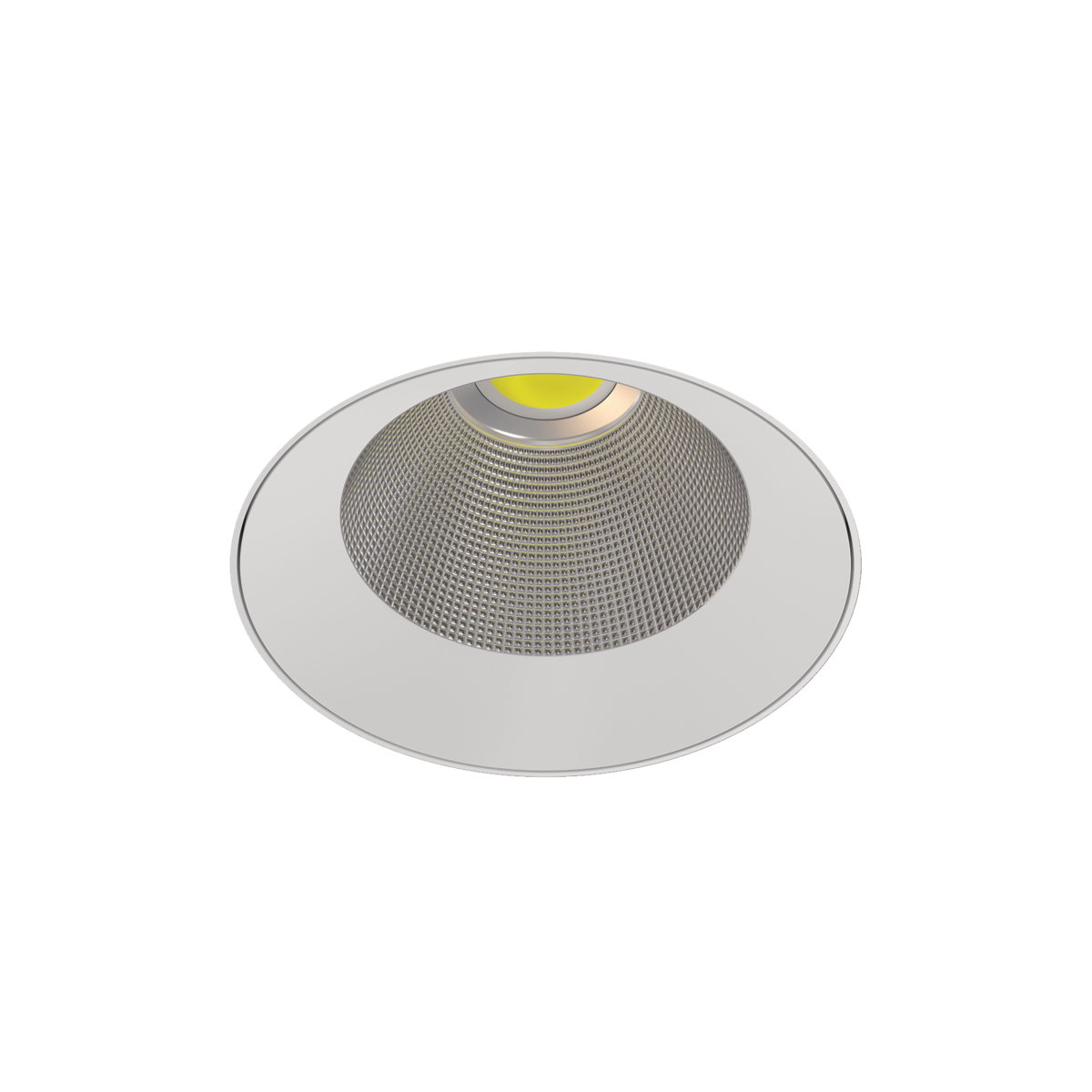

INTO R160 LED TRIMLESS
RECESSED LED DOWNLIGHT
A recessed trimless LED downlight manufactured from aluminium and available in a choice of bezel colours.
These downlights have an efficacy of up to 120 lumens/W, a service lifetime of 60,000 hours, L80.
They can be supplied in a selection of beam angles and carry a 5 years warranty.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: in the ceiling, with mounting frame (included)
‣ Body: aluminium (white, black)
‣ Bezel colour: white, black, silver, gold
‣ Power: 23W, 30W
‣ Power supply: 220-240V 50/60Hz
‣ Light source: LED
‣ Type of equipment: ED
‣ Electrical connection: max 2x1,5 mm² wire
‣ Light distribution: rotationally-symmetric
‣ Way of lighting: direct
‣ Reflector: polished faceted
‣ ULOR / DLOR: 0/100
‣ CRI/Ra: ≥80
‣ Efficacy: ≤120 lm/W
‣ Colour temperature: 3000K, 4000K
‣ Beam angle: 15˚, 22˚, 45˚, 63˚
‣ Lifetime (L80B10): 60,000 hours
‣ Dimensions (LxWxH): 135x200x88mm
‣ Mounting: 147mm ø
‣ IP20
‣ Weight: 0.9 kg
‣ Warranty: 5 years
Please download the data sheet for further information
APPLICATION
Suitable for a range of commercial, residential and retail applications.
