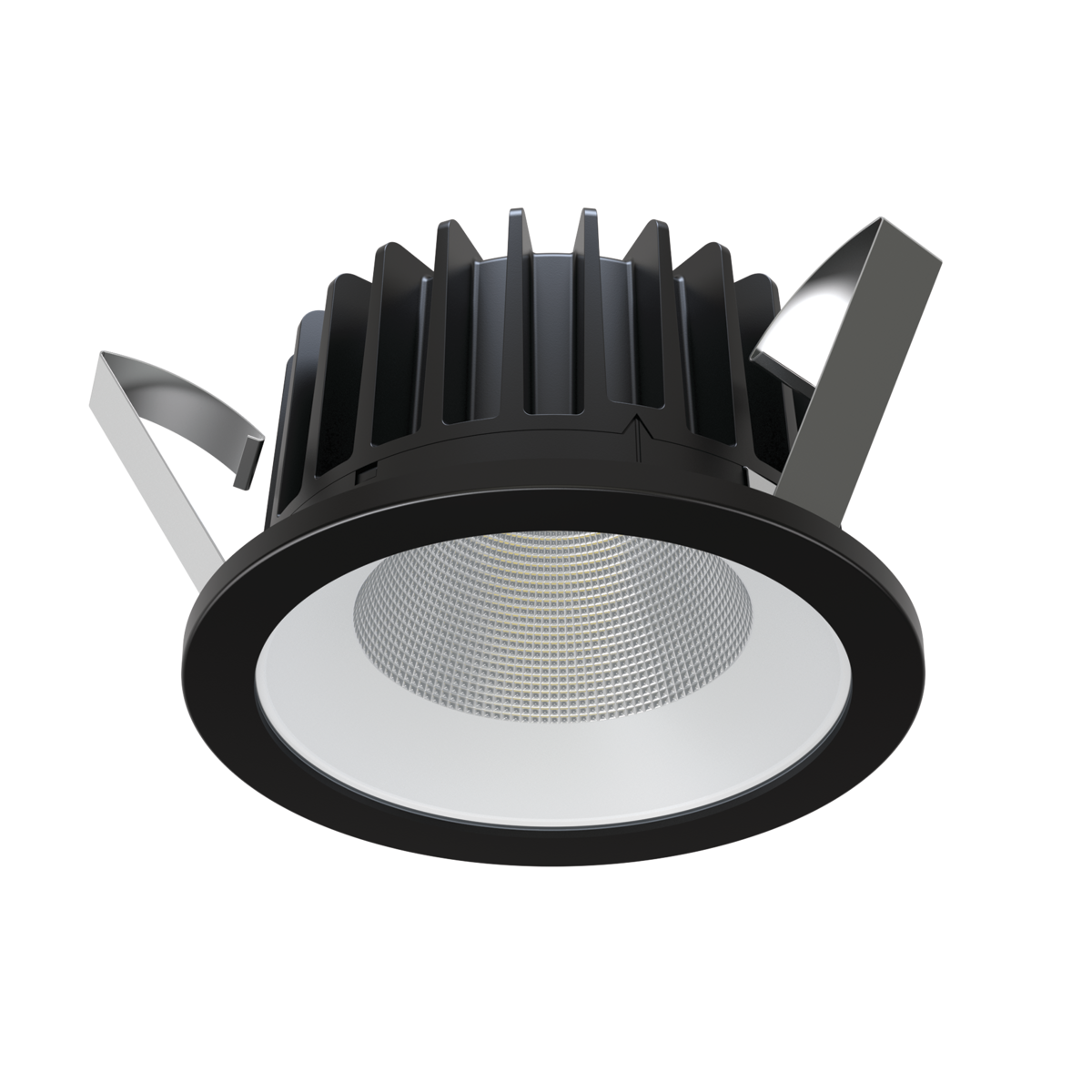

INTO R160 LED
RECESSED LED DOWNLIGHT
A recessed LED downlight manufactured from aluminium and available in a white or black housing with a choice of bezel colours.
These downlights have an efficacy of up to 100 lumens/W, a service lifetime of 60,000 hours, L80, and carry a 5 years warranty.
They have a ceiling cut-out diameter of 147mm and are secured into the ceiling with the brackets provided.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: in the ceiling, with mounting brackets (included)
‣ Body: aluminium (white, black)
‣ Bezel colour: white, black, silver, gold
‣ Power: 23W, 30W
‣ Power supply: 220-240V 50/60Hz
‣ Light source: LED
‣ Type of equipment: ED, DALI
‣ Light distribution: rotationally-symmetric
‣ Way of lighting: direct
‣ Reflector: polished faceted
‣ CRI/Ra: ≥80
‣ Efficacy: ≤100 lm/W
‣ Colour temperature: 3000K, 4000K
‣ Beam angle: 15˚, 22˚, 45˚
‣ Lifetime (L80B10): 60,000 h
‣ Dimensions:
- 160mm ø x 88mm (IP20)
- 164mm ø x 93mm (IP20/IP54)
‣ Cut-out: 147mm ø
‣ IP20
‣ IP20/54 / IK06
‣ Weight: 0.9 kg
‣ Warranty: 5 years
Please download the data sheet for further information
APPLICATION
Suitable for a range of commercial and retail applications.
