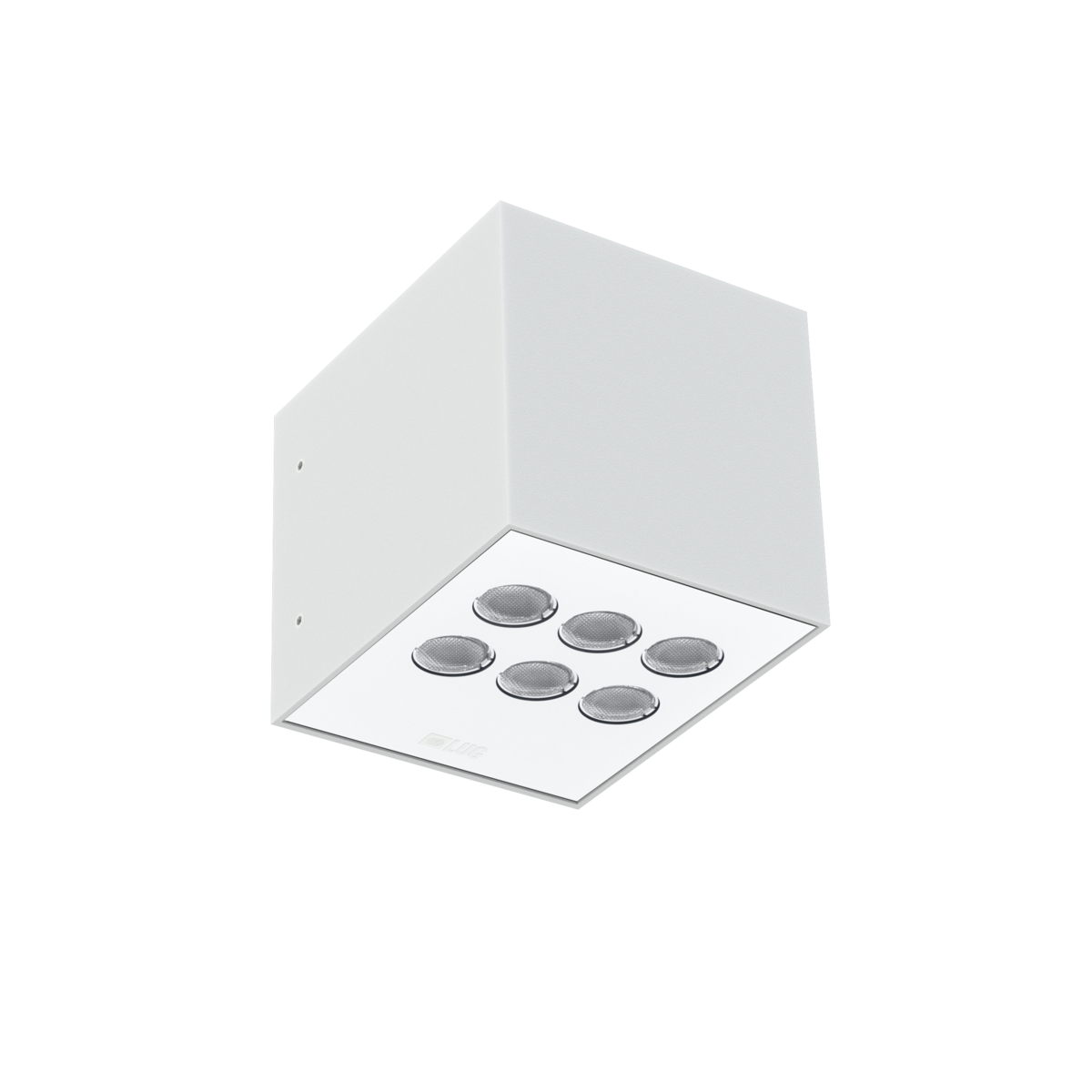

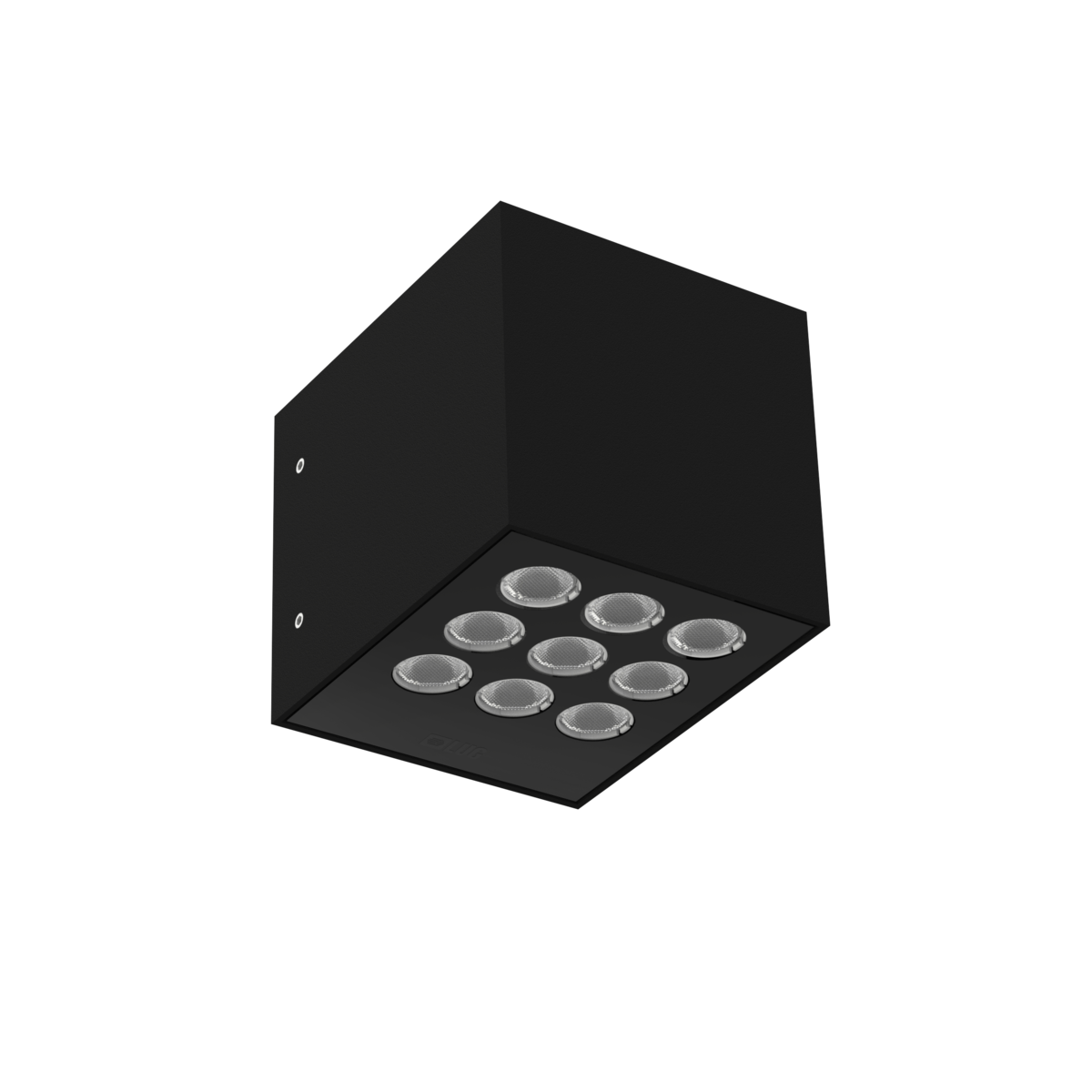

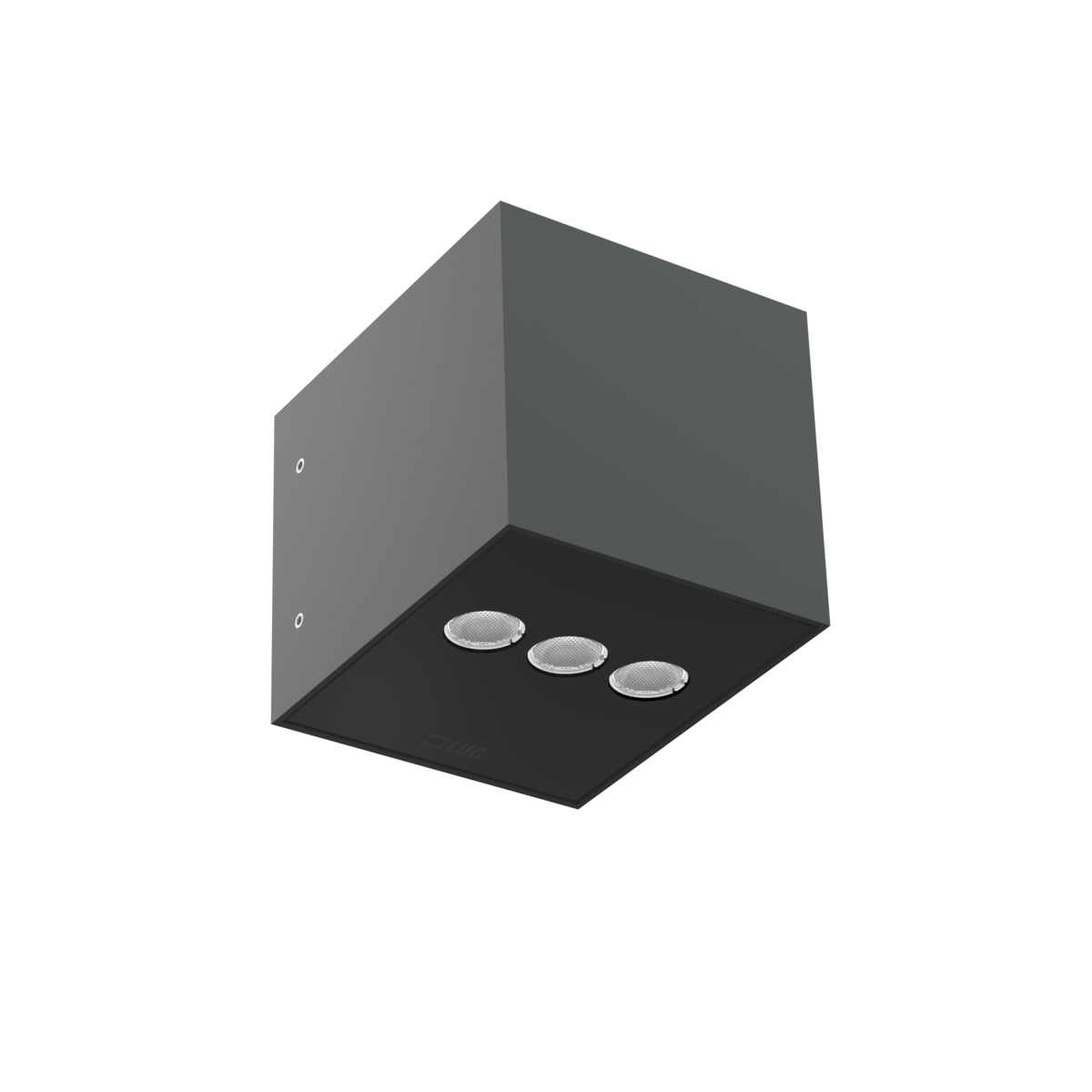

ICE CUBE 2 WALL
LED WALL LUMINAIRE
External architectural luminaire for installation on walls and façades in the form of a decorative wall lamp. The luminaire is available in two optical systems allowing for direct or direct/indirect lighting.
It has an efficacy of up to 119 lm/W with a choice of colour finishes and colour temperatures.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: directly on the wall (light directed down), directly on the wall (light directed up), directly on the wall (light directed up/down)
‣ Body: high pressure die-cast aluminum
‣ Colour: white, grey, black
‣ Power supply efficiency: >79%
‣ Power: 220-240V 50/60Hz
‣ Light source: LED
‣ Colour temperatures: 2700K, 3000K, 4000K, 5700K, Red, Green, Blue
‣ Efficacy: ≤119 lm/W
‣ Beam angle: 10°, 15°, 30°, 58°, 19°x52°, 52°x19°
‣ Type of equipment: ED, DALI
‣ Electrical connection: max 3x2,5 mm² wire, max 5x2,5 mm² wire
‣ Light distribution: symmetric, elliptical
‣ Way of lighting: direct-indirect, direct
‣ ULOR / DLOR: 50/50, 100/100
‣ Lifetime (L90B10): 50,000 hours
‣ Protection: IP65 / IK04
‣ Operating temperature range: ED: -20˚C ... +45˚C; DALI: -20˚C ... +50˚C
‣ Dimensions mm [L W H]: 100 x 120 x 100
‣ Weight: ≤1.5kg
‣ Warranty: 5 years
‣ Additional: Safe power supply with low voltage SELV
Please download the data sheet for further information
APPLICATION
Suitable for a variety of architectural, outdoor applications.
