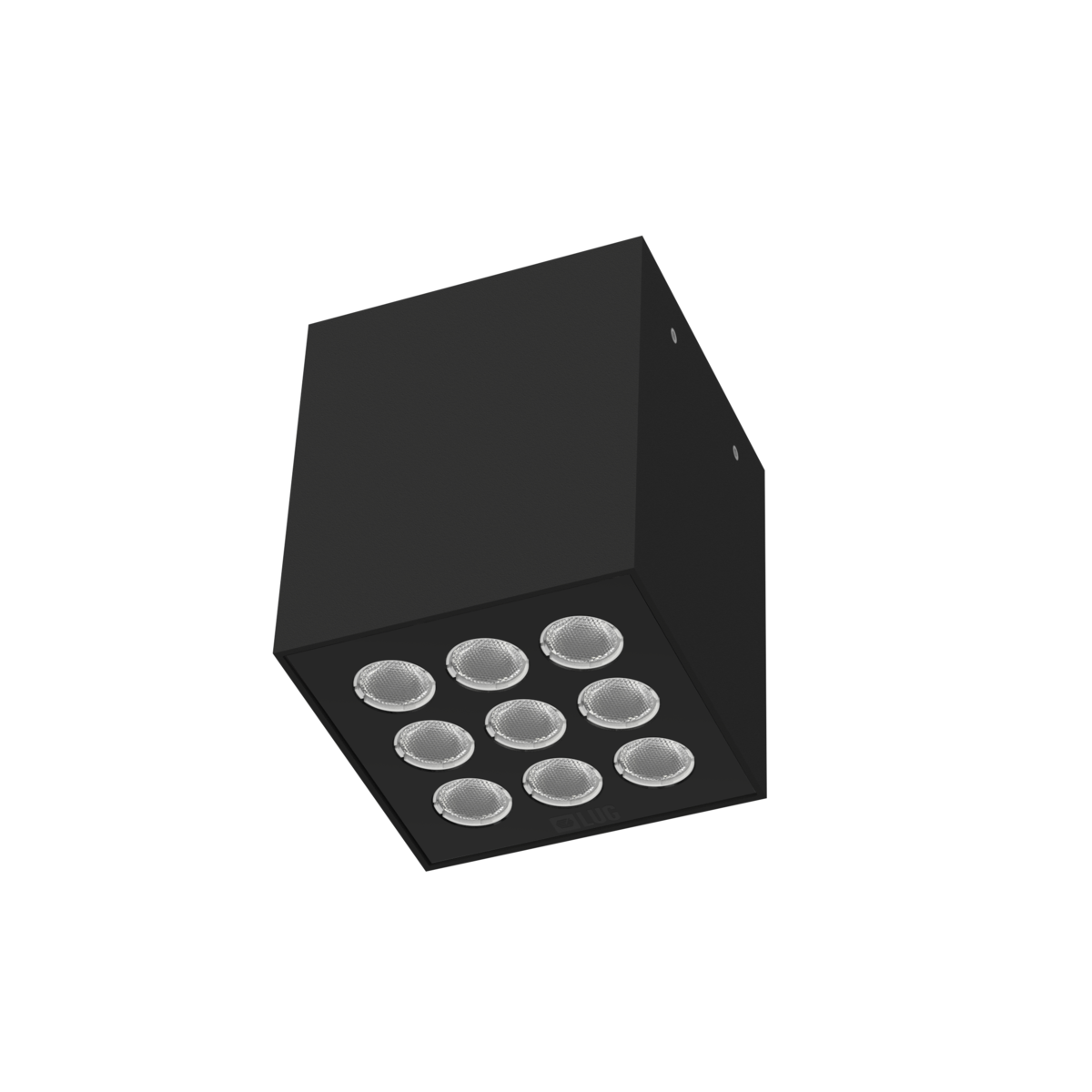

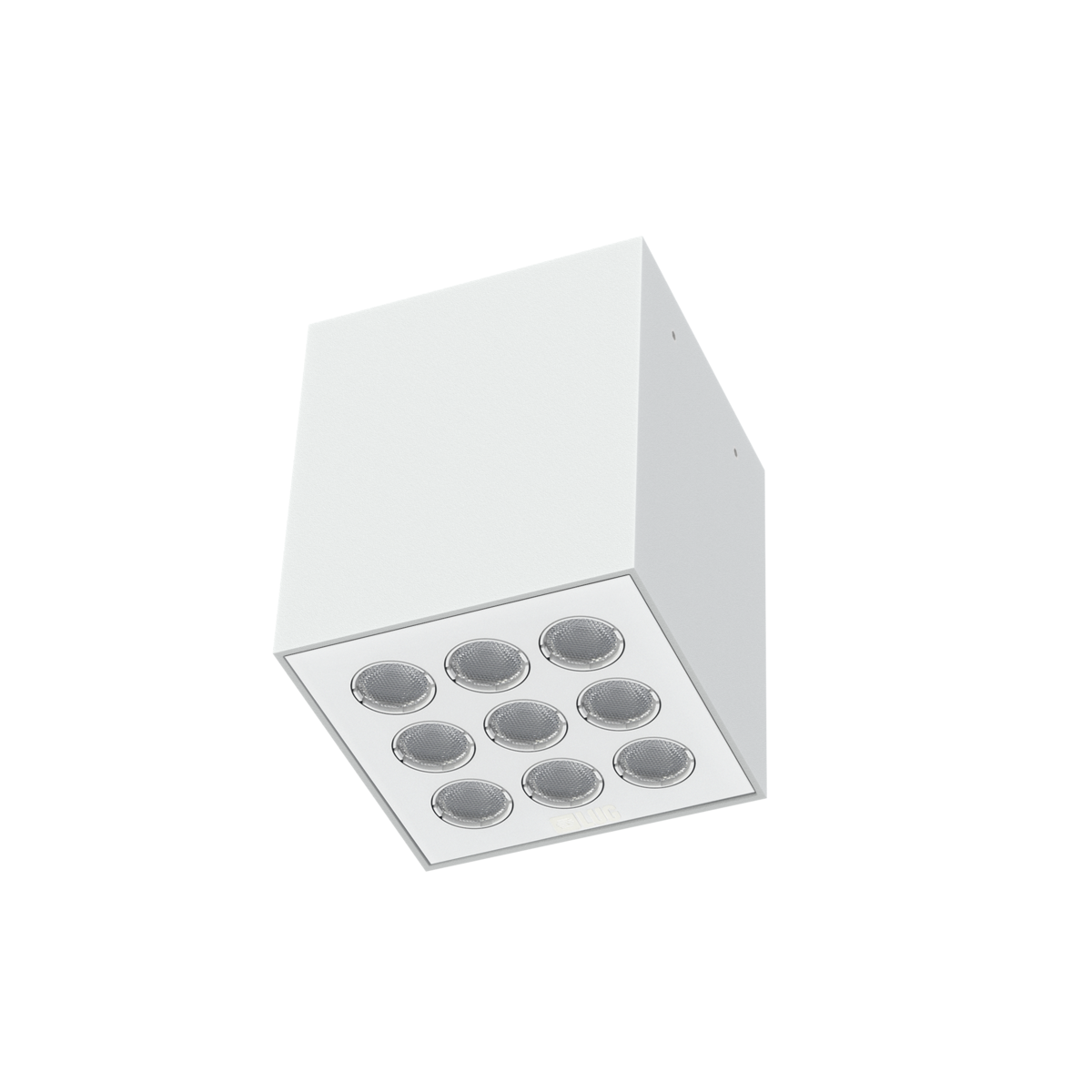

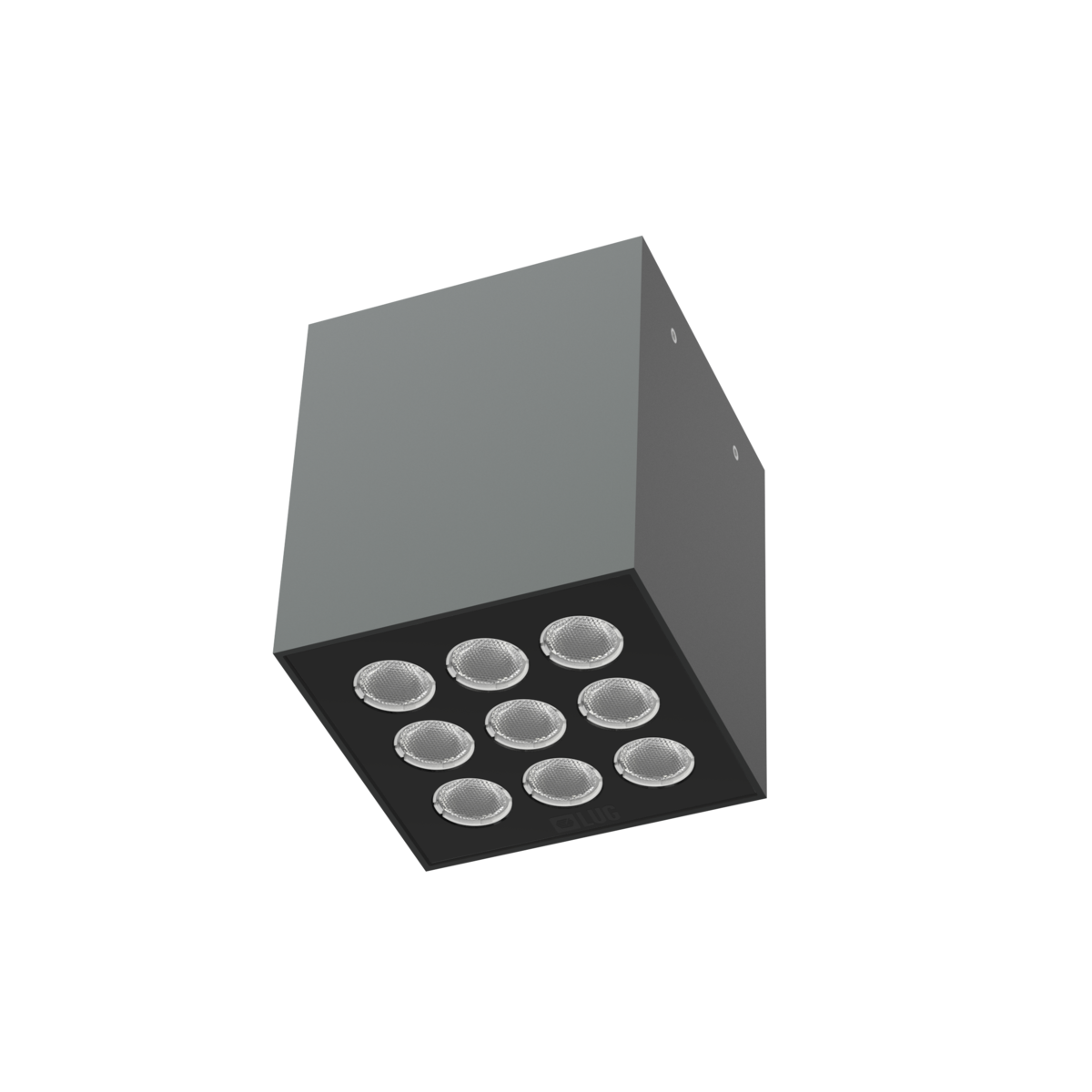

ICE CUBE 2 DL
LED SURFACE DOWNLIGHT
An outdoor architectural luminaire for surface mounting in the form of a decorative downlight. The luminaire is available with a 9-lens optic with three monochromatic lighting angles.
It has an efficacy of up to 119 lm/W with a choice of colour finishes and colour temperatures.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: ceiling surface
‣ Body: high pressure die-cast aluminum
‣ Colour: white, grey, black
‣ Power supply efficiency: >79%
‣ Power: 220-240V 50/60Hz
‣ Light source: LED
‣ Colour temperatures: 2700K, 3000K, 4000K, 5700K, Red, Green, Blue
‣ Efficacy: ≤119 lm/W
‣ Beam angle: 30°, 58°, 19°x52°
‣ Type of equipment: ED, DALI
‣ Electrical connection: max 3x2,5 mm² wire, max 5x2,5 mm² wire
‣ Light distribution: symmetric, elliptical
‣ Way of lighting: direct
‣ ULOR / DLOR: 0/100
‣ Lifetime (L90B10): 50,000 hours
‣ Protection: IP65 / IK04
‣ Operating temperature range: ED: -20˚C ... +45˚C; DALI: -20˚C ... +50˚C
‣ Dimensions mm [L W H]: 100 x 100 x 120
‣ Weight: 1.6kg
‣ Warranty: 5 years
‣ Additional: Safe power supply with low voltage SELV
Please download the data sheet for further information
APPLICATION
Suitable for a variety of architectural, outdoor applications.
