FUTURIX LED

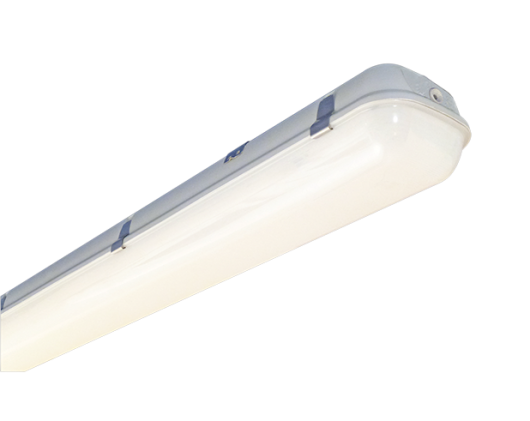

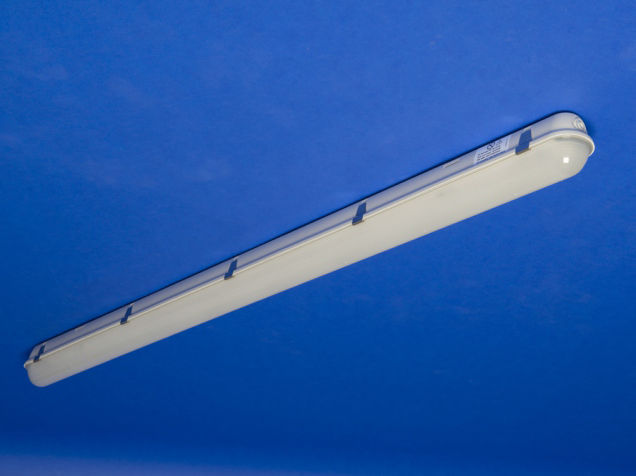

LED WEATHERPROOF LINEAR LUMINAIRE
A weatherproof and impact resistant LED luminaire combining high performance and efficiency.
Supplied with a polycarbonate frosted diffuser as standard, stainless steel clips and a choice of accessories including dimming and emergency options.
Applications include: Car parks, warehouses, retail outlets, workshops, offices etc.
KEY FEATURES AND SPECIFICATIONS
‣ GRP Base
‣ Frosted polycarbonate diffuser
‣ White painted metal gear tray

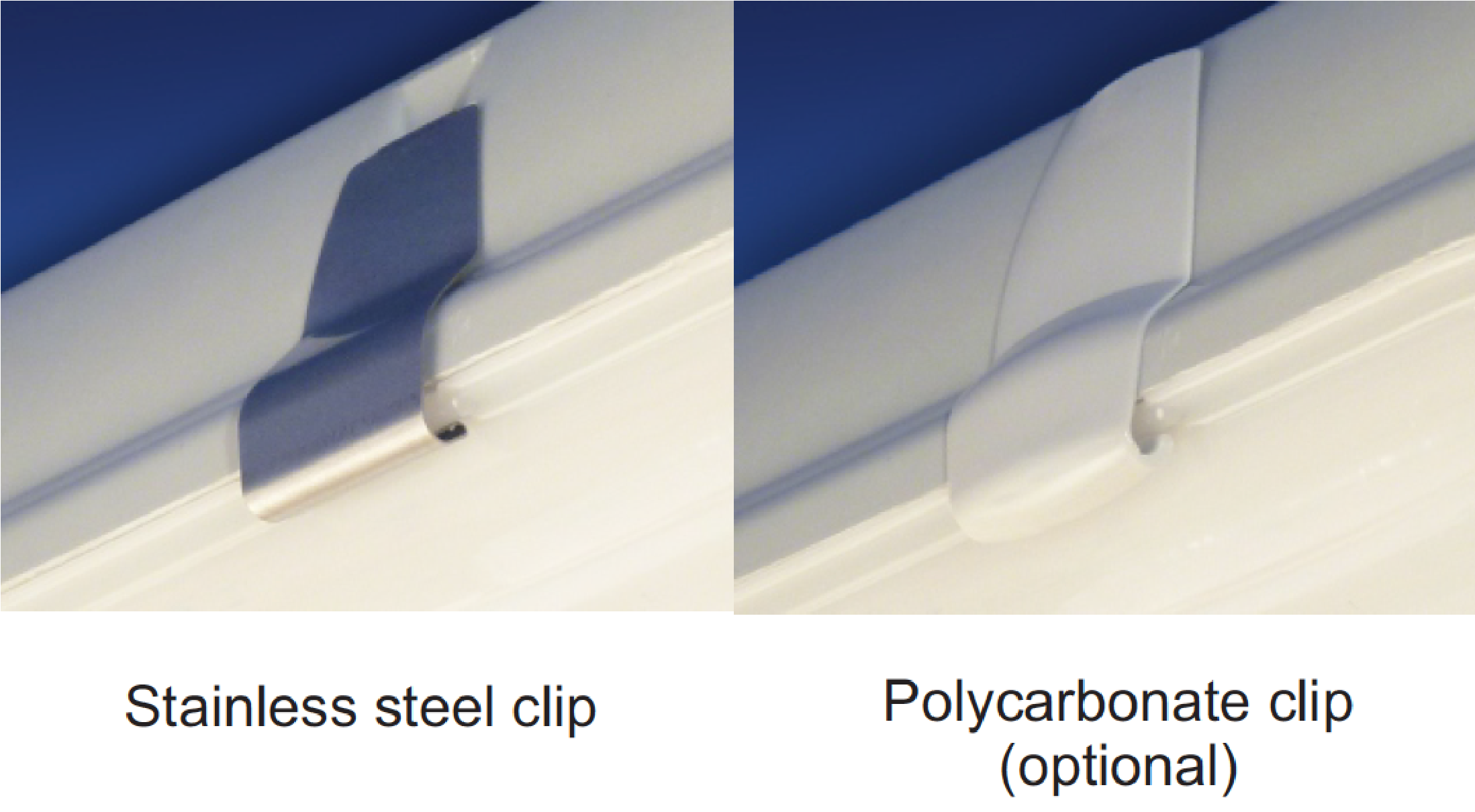

‣ Stainless steel clips
‣ High impact resistance, IK08 (IK10 for PC/PC version)

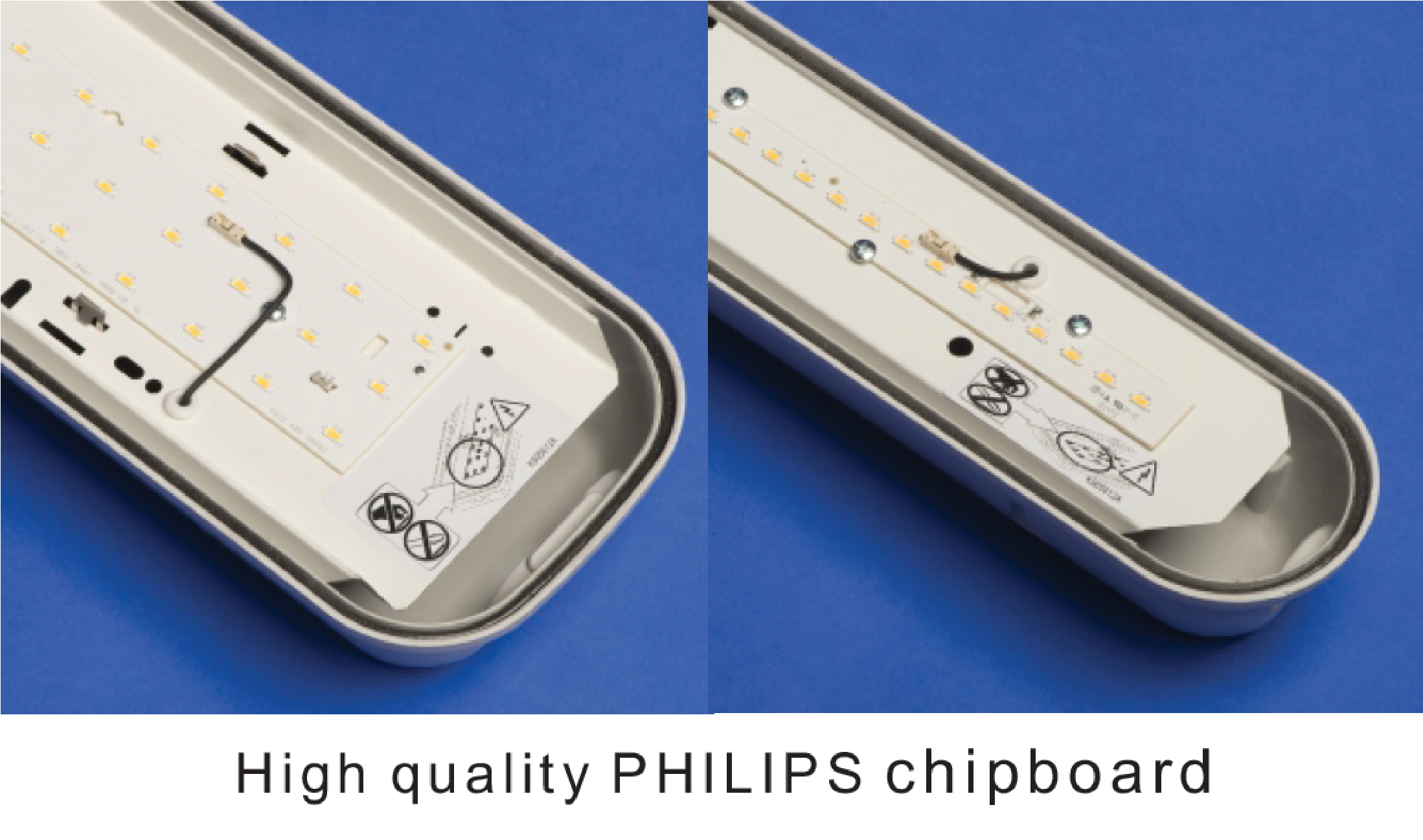

‣ Philips Fortimo LED, Xitanium driver
- 50,000h L80 B10 at Ta.max
- 70,000h L70 B10 at Ta.max.
‣ Colour Temp: 3000K, 4000K, 5000K, 6500K
‣ CRI ≥80.
‣ MacAdam 3 SDCM
‣ Luminous efficiency: Up to 160 lm/W.
‣ 220-240V 50/60Hz.Ta: -20°C/Ta.max.
‣ IP65 Rated
‣ Options:
- Grey PC base (instead of GRP)
- Clear PC diffuser: 105% lumen output
- Acrylic frosted diffuser (PMMA) IK02

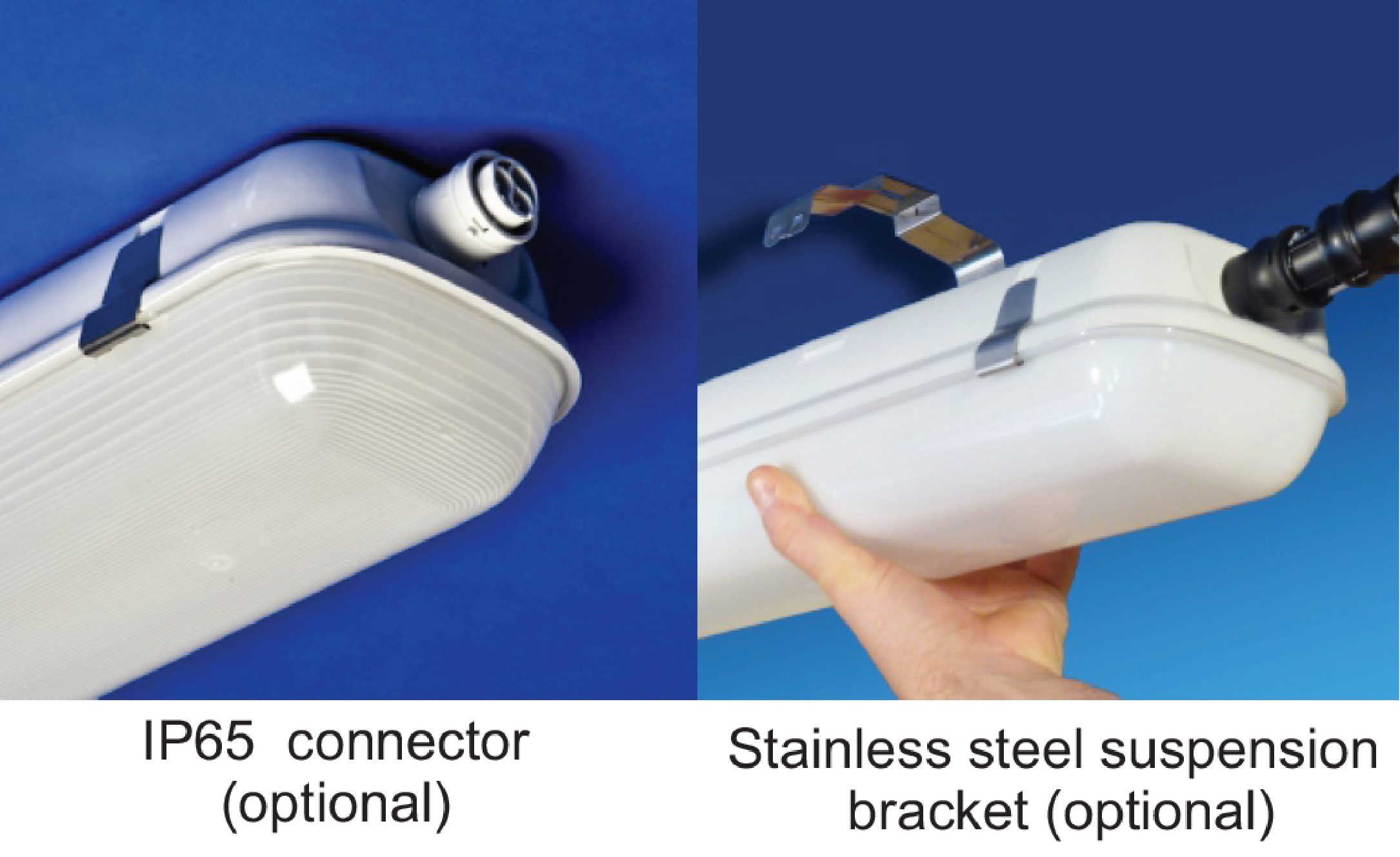

- Stainless steel suspension bracket
- Wieland, Adels or Stucchi connector..
- Polycarbonate clips
- Emergency (except 118)
- 1-10V and DALI
- Sensor
- Through-wiring 1 phase or 3 phase. (This will influence the Ta.max.)
- CRI min. 90. (930, 940)
Please download the data sheet for further information
APPLICATION
Suitable for a variety of industrial and outdoor applications.
