DOT 9100P

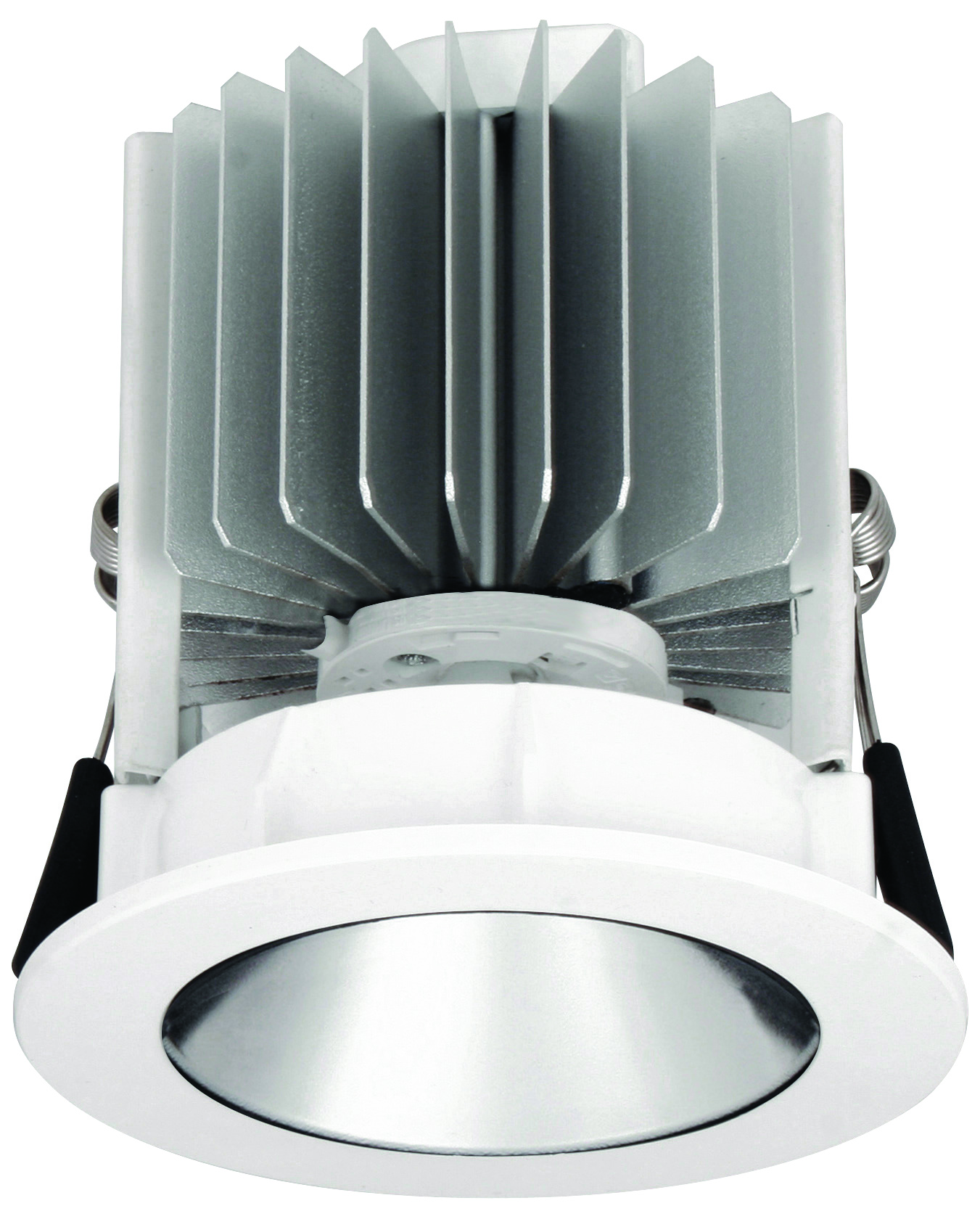

LED DOWNLIGHT
With an overall diameter of 105mm and a hole cut-out diameter of 92mm, this innovative LED downlight uses the CREE CXB chip to ensure high performance with impressive lumen output values balanced with efficiency. The model includes options for analogue, DALI and phase dimming with a choice of colour temperatures.
As with the rest of the DOT range, DOT9100P series can be fitted with a selection of the clip-on AXLOCK accessories. Suitable for a variety of residential and commercial applications.
KEY FEATURES AND SPECIFICATIONS
‣ Silver Reflector (33˚/70˚ beam angle)
‣ CREE CXB LED
‣ CRI: ≥80
‣ R9 value: ≥15
‣ Efficacy: ≤121 lm/W
‣ Colour temperature: 3000K/4000K
‣ 2 MacAdam steps
‣ Standards: IEC 60598.1.2, CE, RoHS, WEEE
‣ IP Rating: Determined by trim accessory
‣ Choice of trim accessory
‣ Round Trim White (A920/01) fitted todownlights as standard
‣ 92mm diameter hole cut-out
‣ 105mm overall diameter
‣ Dimming options available
‣ Service lifetime: ≥75,000 hours L90
‣ Weights:
- Luminaire body - 400 gms
- Remote driver - 100 gms
‣ Warranty: 5 years
Please download the data sheet for further information
APPLICATION
Suitable for a variety of commercial, residential and retail applications.
