AVALON
IP65 DOWNLIGHT

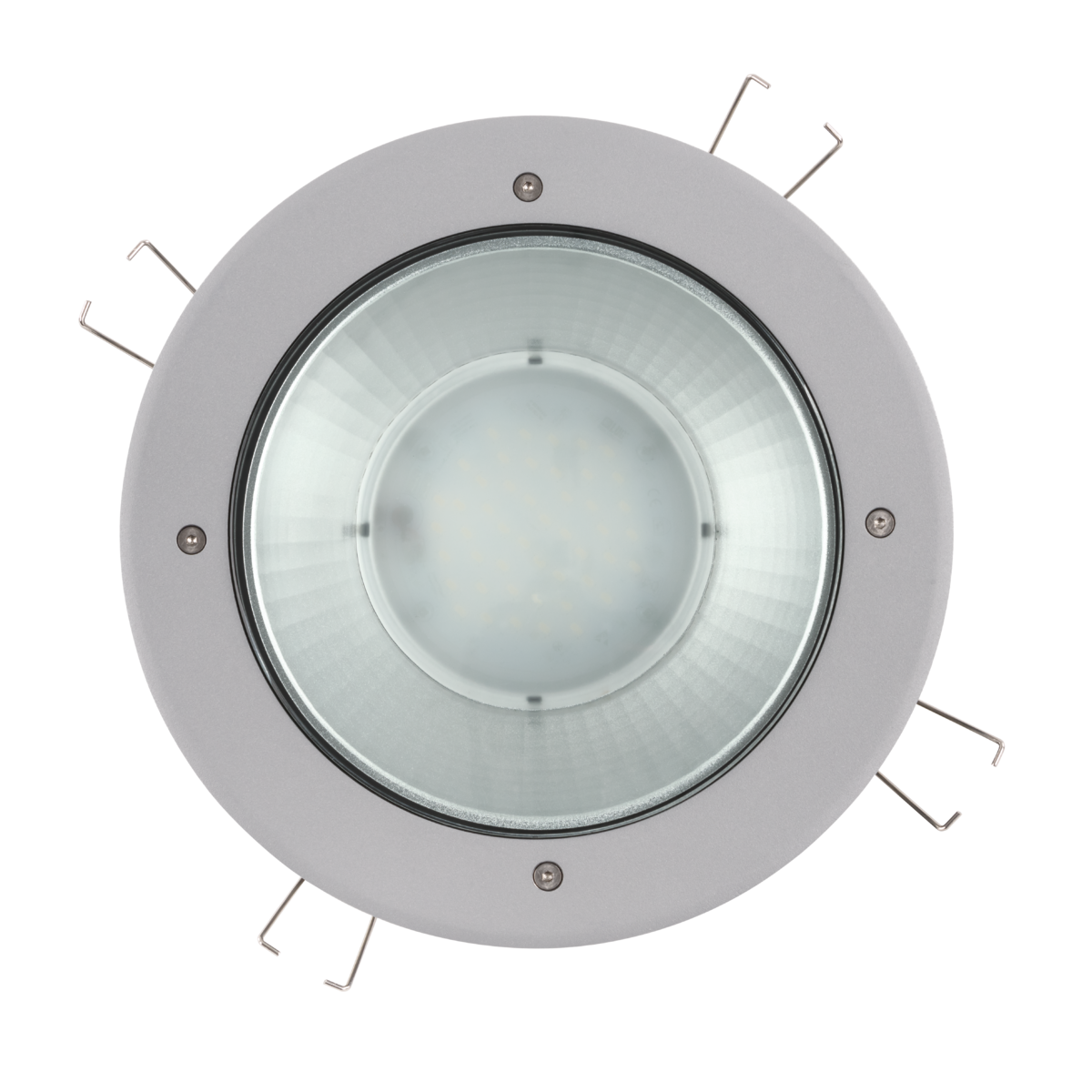

A 278mm diameter IP65 LED recessed decorative downlight, perfect for highlighting the architectural features of buildings.
Manufactured from die-cast aluminium with a tempered glass diffuser, these downlights have an efficacy of up to 76 lumens/W and a service lifetime of 50,000 hours.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: in the ceiling, with mounting brackets (included)
‣ Body: high pressure die-cast aluminum
‣ Body colour: grey
‣ Reflector: aluminum matt faceted
‣ Diffuser: tempered glass
‣ Wattage: 19W, 25W
‣ Power supply: 220-240V 50/60Hz
‣ Power supply efficiency: >85%
‣ Light source: LED
‣ Type of equipment: ED (DALI, emergency and through wiring on request)
‣ Light distribution: circular
‣ Way of lighting: direct
‣ Electrical connection: max 3x1,5 mm² wire
‣ CRI/Ra: ≥80
‣ Efficacy: ≤76 lm/W
‣ Colour temperature: 3000K, 4000K
‣ Operating temperature range: -20˚C to +35˚C
‣ Lifetime (L80B10): 50,000 hours
‣ Dimensions: ø278mm x 195mm H
‣ Cut-out: ø258mm
‣ Protection: IP65/IK10
‣ Weight: 3.6 kg
‣ Warranty: 5 years
Please download the data sheet for further information
APPLICATION

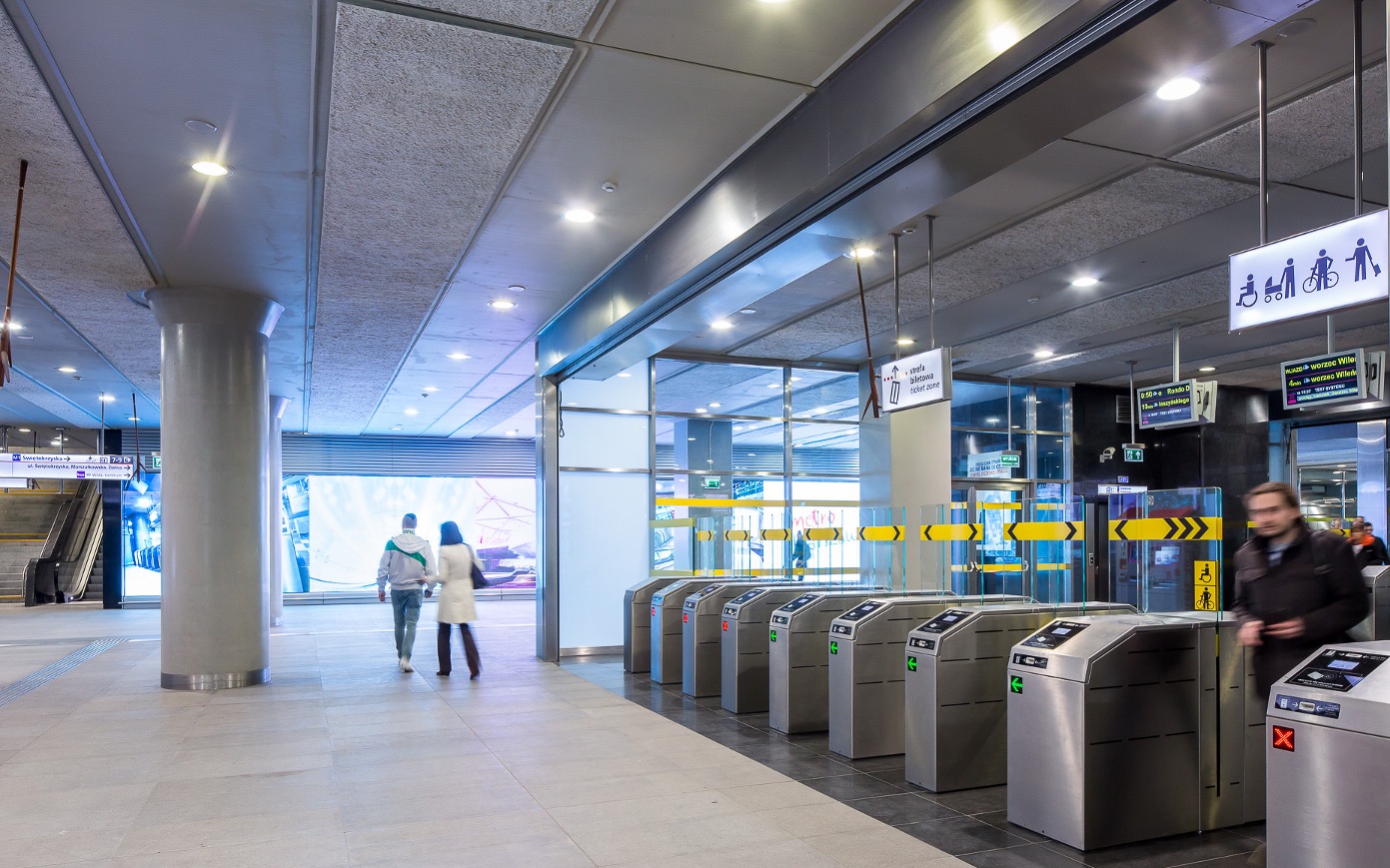

Suitable for architectural, commercial and retail applications.
