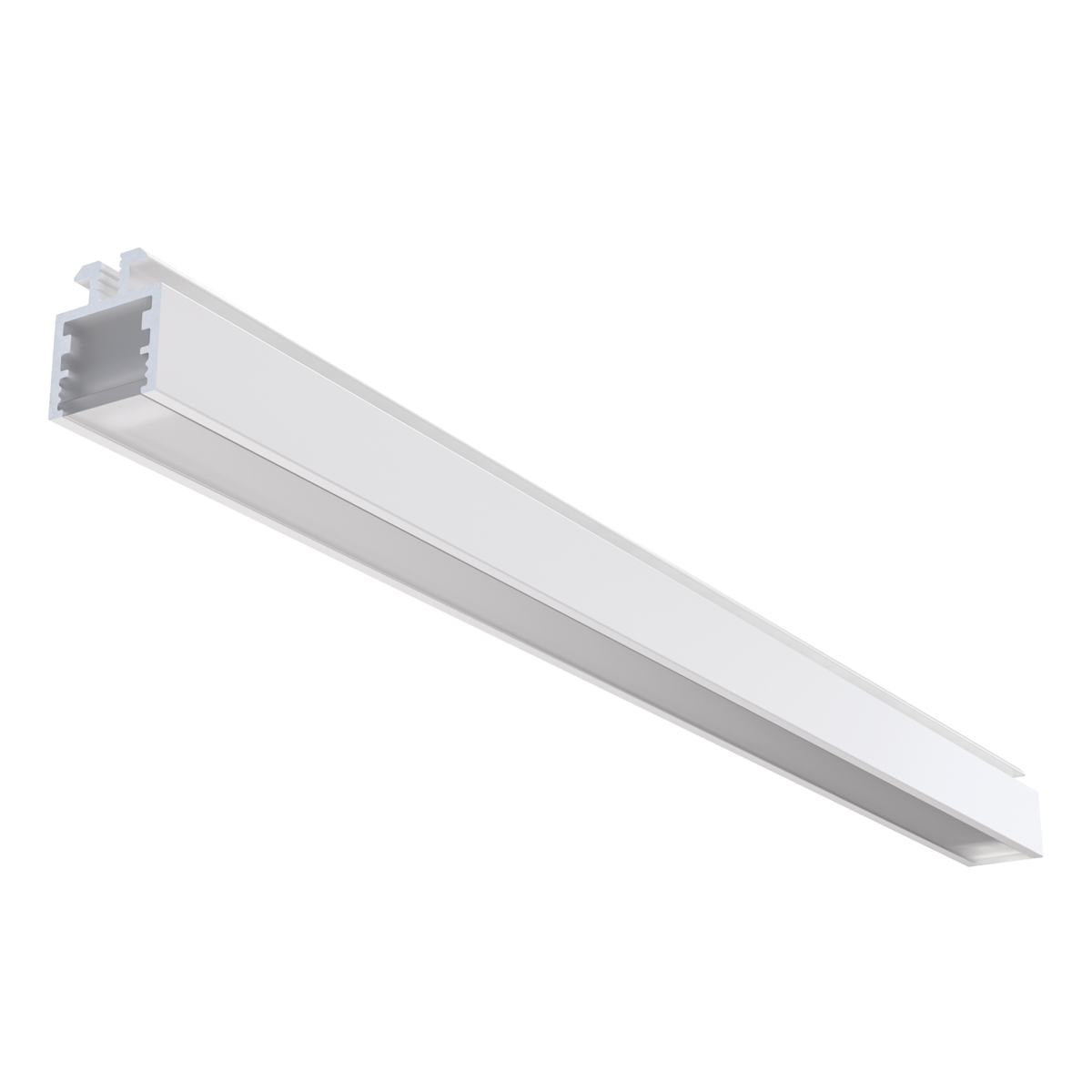

ARCHILINE
RECESSED CEILING/WALL LUMINAIRE
Designed for ceiling or wall recessed installation, ARCHILINE is manufactured from aluminium and is available in various lengths.
It has an efficacy of up to 65 lumens/W, is IP67/IK10 rated and supplied with a mounting bracket.
Power supplies are ordered separately which include a DALI option.
KEY FEATURES AND SPECIFICATIONS
‣ Mounting: ceiling or wall recessed
‣ Body: aluminum profile
‣ Colour: white

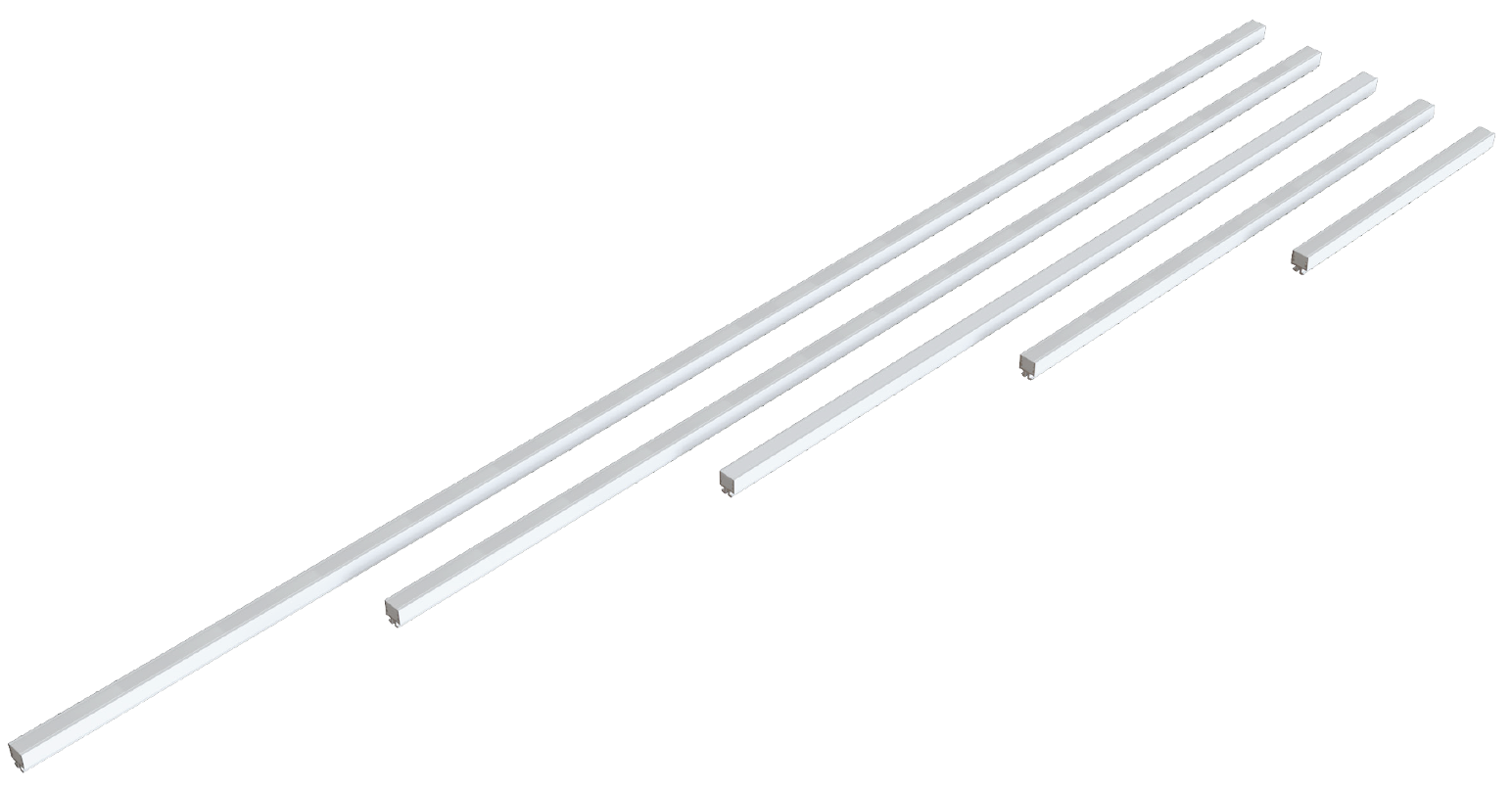

‣ Lengths: 300mm, 600mm, 900mm, 1200mm, 1500mm
‣ Power: 24V DC
‣ Light source: LED
‣ Colour temperature: 4000K
‣ CRI: >80
‣ Efficacy: ≤65 lm/W
‣ Power supply: ED or DALI (ordered separately)
‣ Electrical connection: max 2x0,75 mm² wire
‣ Light distribution: symmetric, omnidirectional
‣ Way of lighting: direct
‣ ULOR / DLOR: 100/0
‣ Lifetime (L90B10): 50,000 h (ED); 43,000 h (DALI)
‣ Mounting bracket: included
‣ Operating temperature range: -40˚C to +50˚C
‣ Protection: IP67 / IK10
‣ Warranty: 5 years
Please download the data sheet for further information
APPLICATION

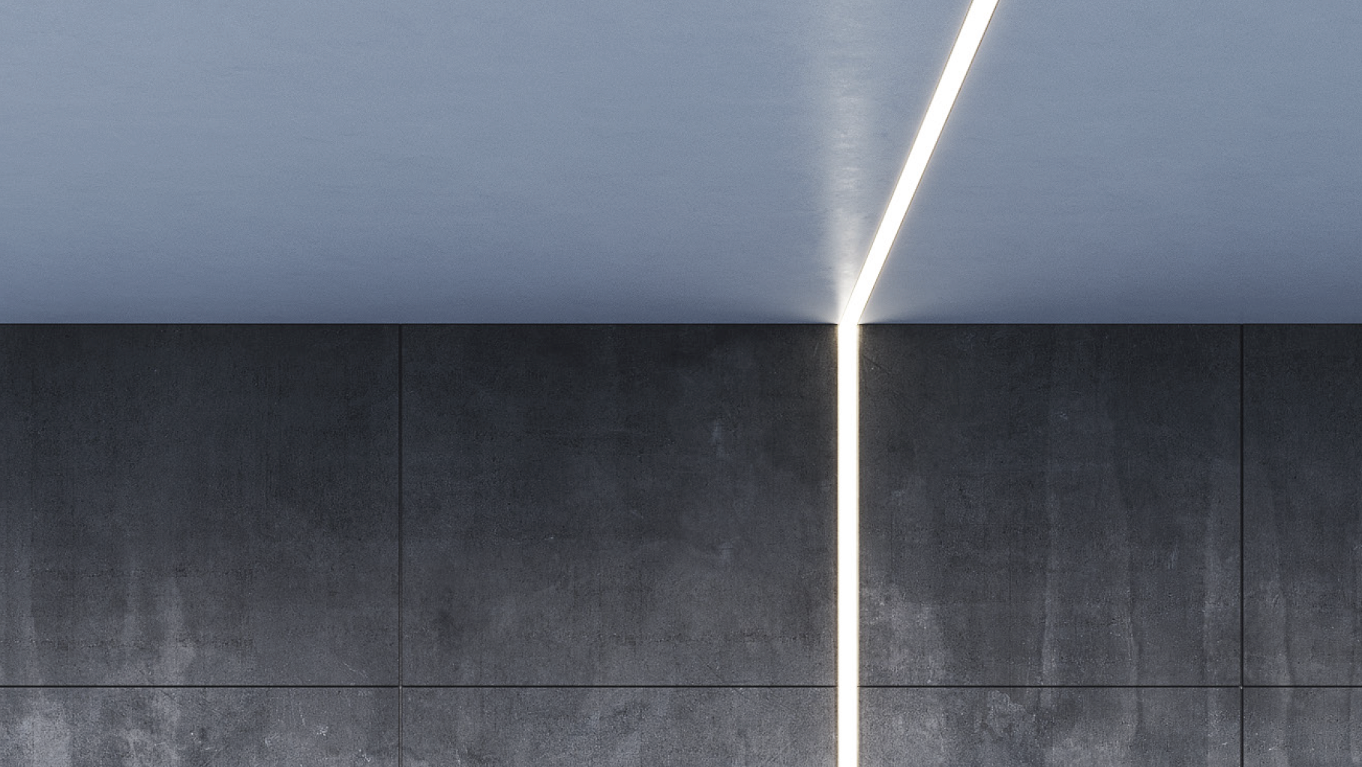

Suitable for a variety of commercial, industrial and retail applications.
